AOPTKE G series network server cabinet

AOPTKE G series network server cabinet

Short Description:

AOPTKE-G Series Network Cabinets
An upgraded and reinforced version of the G Series, featuring thicker steel plating and superior load-bearing capacity.
Cabinet Standards: Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494 (Part 1 & Part 7), and GB/T3047.2-92; compatible with ETSI standards.
Main Material: Shougang SPCC high-quality cold-rolled steel.
Surface Treatment: Degreasing, ceramic phosphating, and electrostatic powder coating.
Static Load Capacity: 800 kg (with leveling feet).
Protection Rating: IP20.
Door Options: Choice of high-transparency tempered glass front door, high-density mesh rear door, or high-density mesh double rear doors.
Structure: Modular assembly structure, designed for easy cable routing.



*   The cabinet top and bottom feature removable panel designs.

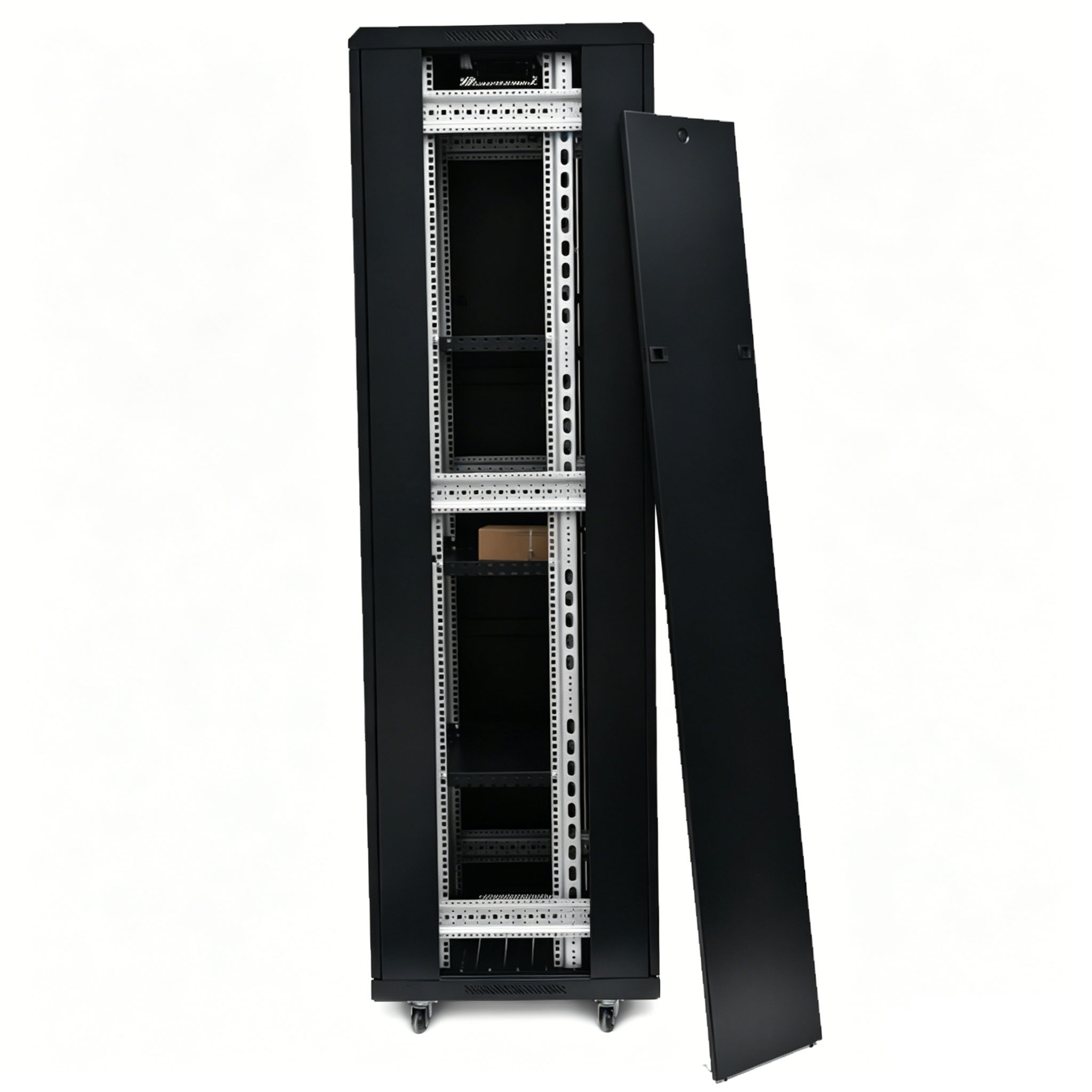

*   Quick-release side panels allow for convenient and flexible access.
*   Corner posts are constructed from aluminum-zinc plated steel; key components feature pre-installed copper grounding studs to facilitate rapid cabinet grounding system setup.
*   The cooling system is top-mounted, allowing for convenient installation of vertical PDUs (Power Distribution Units) and cable management panels.

Product Detail

Product Tags

G series network server cabinets| Product Standards

The AOPTKE-G Series Floor-Standing Cabinet is specifically designed for low-voltage electrical engineering applications. Its intelligent design and professional engineering facilitate convenient installation and maintenance. Compliant with the GB/T3047.2-92 standard, it is compatible with 19-inch international standards, metric standards, and ETSI standards.


G series network server cabinets|  Product Features

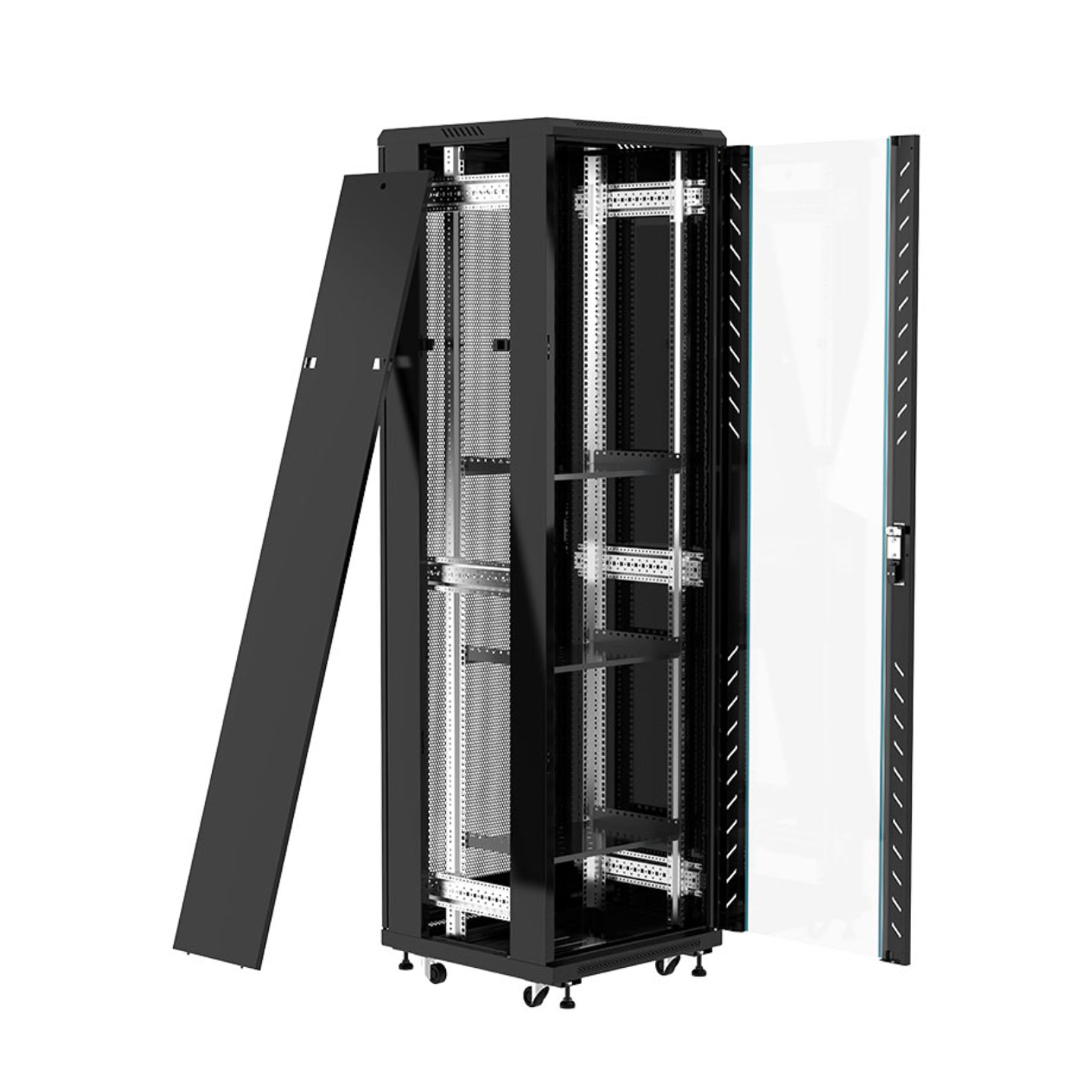

  • 1. The front door opens to an angle exceeding 180°, and the side panels are detachable to facilitate installation and maintenance.

    2. It supports the simultaneous installation of both casters and leveling feet, and is equipped with heavy-duty swivel casters to facilitate transportation.

    3. The cabinet features a removable panel design at both the top and bottom, allowing for flexible cable routing.

    4. The corner uprights are coated with aluminum-zinc alloy, and key components are pre-fitted with copper grounding studs.

    5. Supports the installation of cable management racks, routing rings, cable organizers, copper grounding bars, and other related accessories.

    6. Both the front and rear doors are equipped with elegant black mechanical locks.

    G series network server cabinets|  Product parameter

Product name AOPTKE G Series Network Server Cabinet
Protection level IP20
Cabinet material The corner brackets are aluminum-zinc coated; the remaining components are made of high-quality SPCC cold-rolled steel.
Craft Degreasing, water rinsing, silane treatment, and electrostatic powder coating.
DOOR Single-opening mesh door at the front; double-opening mesh door at the rear.
Colour RAL 9004 (Black), RAL 7035 (Grey)
model AP-G
Thickness Aluminum-Zinc Coated Post:2.0mm
Glass Door:5mm tempered glass and 1.2mm glass door edges
Net Gate:1.2mm
Side Panel:1.2mm
frame:1.2mm
Static load bearing capacity 800KG
SIZE
volume 10U,12U,15U,18U,22U,27U,32U,37U,42U,47U
width(mm) 600,800
Depth(mm) 600, 800, 1000, 1100, 1200
