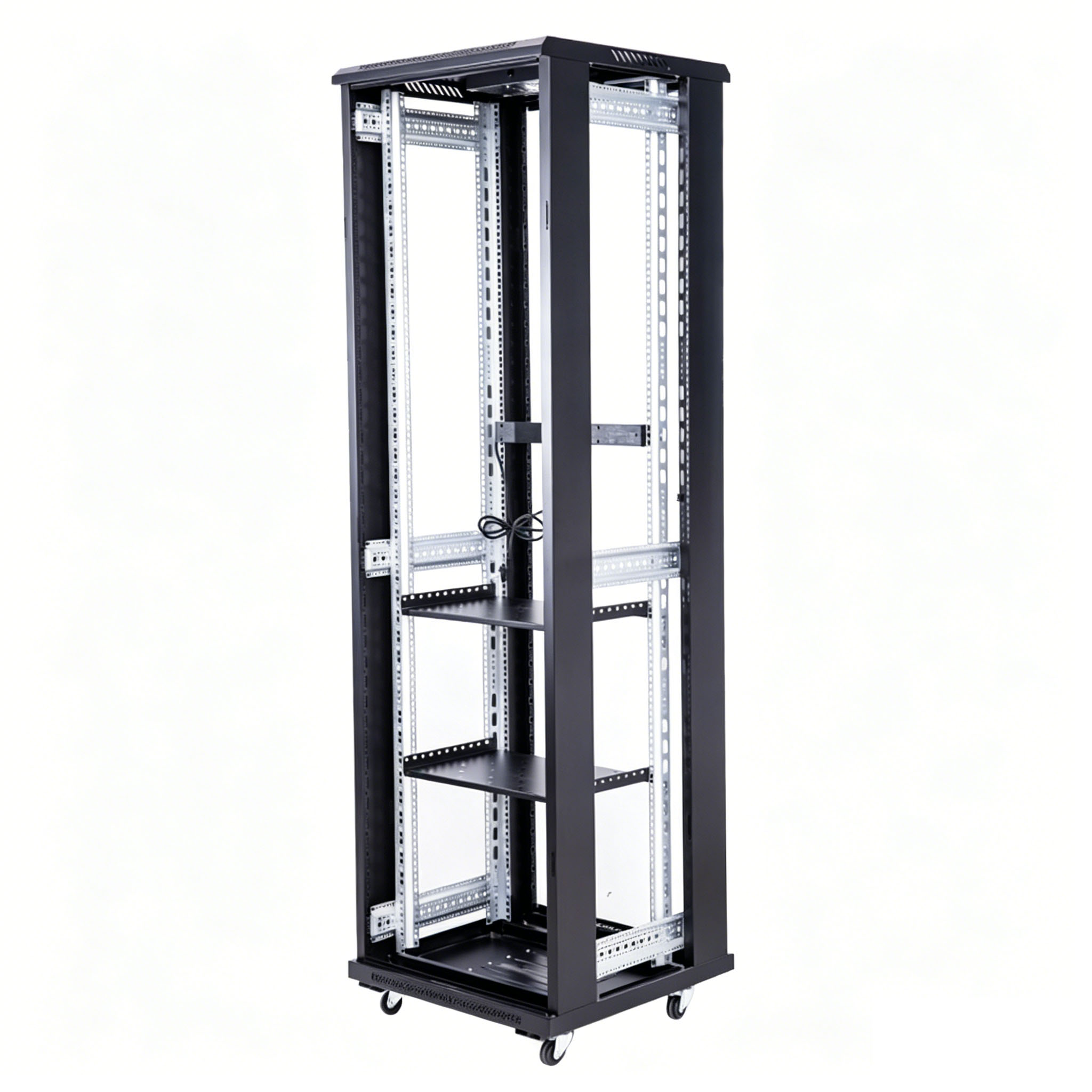

AOPTKE V series network server cabinet

AOPTKE V series network server cabinet

Short Description:

Cabinet Standards: Compliant with GB/T3047.2-92 standards; compatible with 19” international standards, metric standards, and ETSI standards.

Main Body Material: Shougang SPCC high-quality cold-rolled steel.

Surface Treatment: Degreasing, ceramic coating, and electrostatic powder coating.

Static Load Capacity: 500 kg (with leveling feet).

Protection Rating: IP20.

Door Options: Available with a highly transparent tempered glass front door, a high-density perforated rear door, or high-density perforated double rear doors.

Structure: Modular assembly structure, facilitating easy cable routing.

Top and Bottom Panels: Feature a removable panel design.

Side Panels: Quick-release design for convenient and flexible access.

Corner Posts: Constructed from aluminum-zinc plated steel; key components feature pre-installed copper grounding studs to facilitate rapid establishment of the cabinet grounding system.

Cooling System: Top-mounted design, allowing for convenient installation of vertical PDUs (Power Distribution Units) and cable management panels.

Facilitates the convenient installation of vertical PDUs and cable management panels.

Product Detail

Product Tags

V series network server cabinets| Product Standards

The AOPTKE-V Series Floor-Standing Cabinets are specifically designed for low-voltage engineering applications. Their intelligent design and professional engineering facilitate convenient installation and maintenance. Compliant with the GB/T3047.2-92 standard, these cabinets are compatible with 19-inch international standards, metric standards, and ETSI standards.


V series network server cabinets|  Product Features

  • 1. The front door opens to an angle exceeding 180°, and the side panels are detachable to facilitate installation and maintenance.

    2. It supports the simultaneous installation of both casters and leveling feet, and is equipped with heavy-duty swivel casters to facilitate transportation.

    3. The cabinet features a removable panel design at both the top and bottom, allowing for flexible cable routing.

    4. The corner uprights are coated with aluminum-zinc alloy, and key components are pre-fitted with copper grounding studs.

    5. Supports the installation of cable management racks, routing rings, cable organizers, copper grounding bars, and other related accessories.

    6. Both the front and rear doors are equipped with elegant black mechanical locks.

    V series network server cabinets|  Product parameter

Product name AOPTKE V Series Network Server Cabinet
Protection level IP20
Cabinet material The corner brackets are aluminum-zinc coated; the remaining components are made of high-quality SPCC cold-rolled steel.
Craft Degreasing, water rinsing, silane treatment, and electrostatic powder coating.
DOOR Single-opening mesh door at the front; double-opening mesh door at the rear.
Colour RAL 9004 (Black), RAL 7035 (Grey)
model AP-V
Thickness Aluminum-Zinc Coated Post:2.0mm
Glass Door:5mm tempered glass and 1.0mm glass door edges
Net Gate:0.8mm
Side Panel:0.8mm
frame:0.8mm
Static load bearing capacity 400KG
SIZE
volume 10U,12U,15U,18U,22U,27U,32U,37U,42U
width(mm) 600
Depth(mm) 600, 800, 1000
