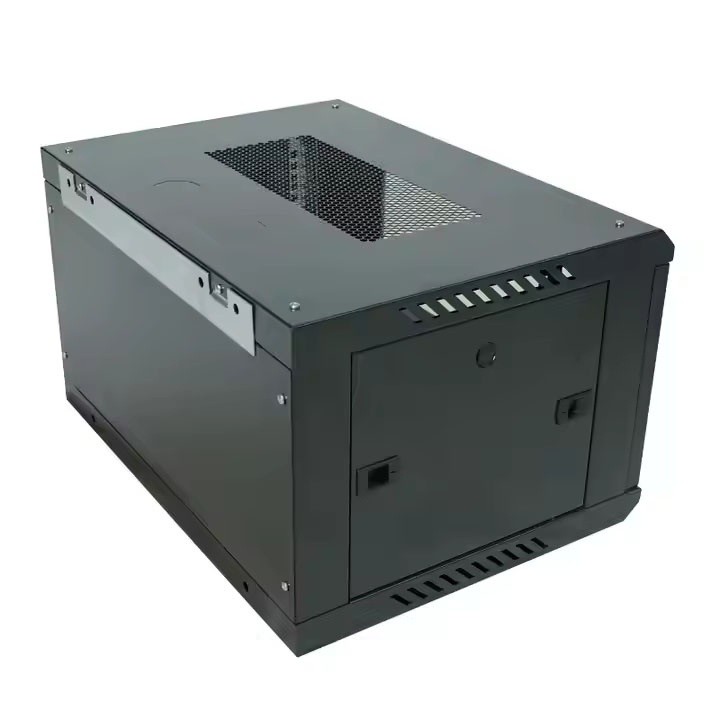

AOPTKE-P64S Wall-mounted network cabinet

AOPTKE-P64S Wall-mounted network cabinet

Short Description:

The AOPTKE-P64 Series Wall-Mounted Cabinet is specifically designed for low-voltage engineering applications. Its intelligent design and professional engineering ensure convenient installation and maintenance. Compliant with the GB/T3047.2-92 standard, it is compatible with 19-inch international standards, metric standards, and ETSI standards.
1. The front door opens to an angle exceeding 180°, and the side panels are detachable, facilitating easy installation and maintenance.
2. The cabinet features removable top and bottom panels, allowing for flexible cable routing.
3. The mounting rails are constructed from powder-coated cold-rolled steel, and the front-to-rear mounting depth can be adjusted as required.
4.An additional rear reinforcement panel is added to increase wall-mounting load capacity and overall structural strength.

Product Detail

Product Tags

AOPTKE-P64S network cabinets| Product Standards

The AP-P64S Series Wall-Mounted Cabinets are specifically designed for low-voltage engineering applications. Their intelligent design and professional engineering facilitate convenient installation and maintenance. Compliant with the GB/T3047.2-92 standard, they are compatible with 19-inch international standards, metric standards, and ETSI standards.

AOPTKE-P64S network cabinets|  Product Features

  • 1. The front door opens to an angle exceeding 180°, and the side panels are detachable to facilitate installation and maintenance.
    2. The cabinet features detachable top and bottom panels, allowing for flexible cable routing.
    3. The mounting rails are constructed from powder-coated cold-rolled steel, and the front and rear mounting depths can be adjusted as required.
    4.An additional rear reinforcement panel is added to increase wall-mounting load capacity and overall structural strength.

    A0PTKE-P64S network  cabinets|  Product parameter

Product name AOPTKE-P64S Wall-mounted network cabinet
Protection level IP20
Cabinet material SPCC High-Quality Cold-Rolled Steel
Craft Degreasing, water rinsing, silane treatment, and electrostatic powder coating.
DOOR Glass Door, Mesh Door, Side Mesh Door
Colour RAL 9004 (Black), RAL 7035 (Grey)
model AP-P64S
Thickness Uprights: 1.4 mm; others: 0.9 mm.
SIZE
volume 4U,6U,9U,12U,15U,18U
width(mm) 600
Depth(mm) 450
