OPGW optical cable (Optical Fiber Composite Overhead Ground Wire) is a revolutionary product in the field of power system communication. It perfectly integrates traditional overhead ground wire with optical fiber communication technology. It is not only a lightning protection device for power lines, but also a high-speed data transmission channel.

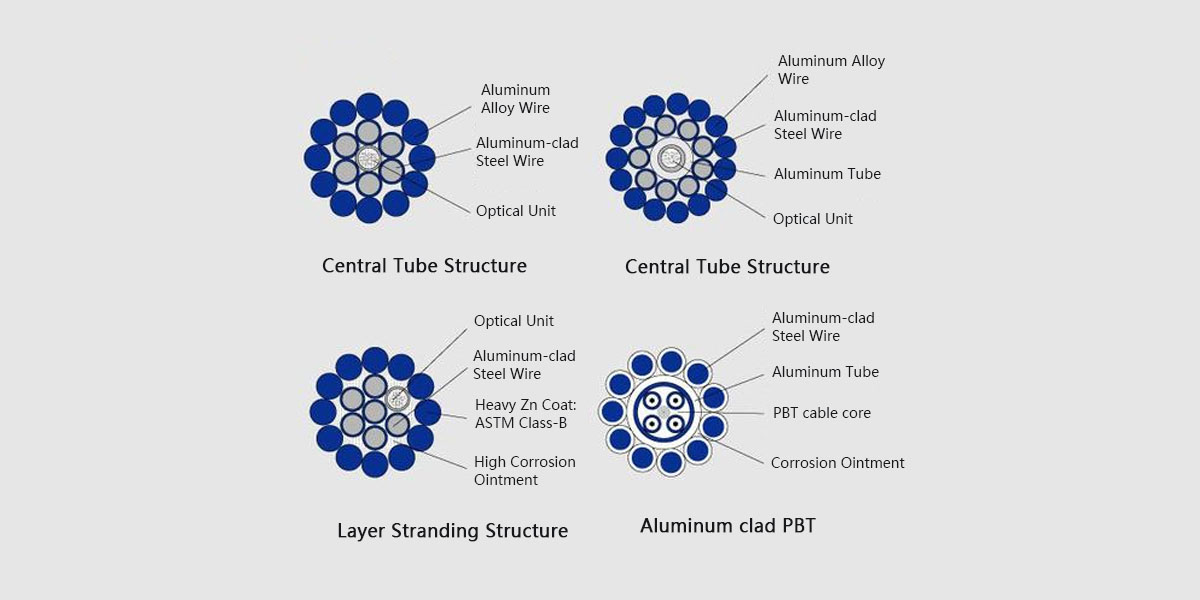

Core structure analysis:
·Outer structure: aluminum-clad steel or aluminum alloy stranded wire, providing mechanical strength and lightning protection.·Fiber unit: Contains 4-144 core G.652/G.655 single-mode optical fiber.
·Buffer layer: stainless steel tube + water-blocking material, double protection design.
·Temperature tolerance: stable operation in extreme environments from -40℃ to +80℃.
2. Why choose OPGW optical cable?
Three core advantages:
1. Safe and reliable
Dual-function integrated design saves 30% of installation costs, tensile strength of more than 90kN, failure rate less than 0.02 times/100km/year.
2. Efficient transmission
Supports 40Gbps high-speed transmission, loss ≤0.22dB/km, perfect for smart grid SCADA system.
3. Environmental adaptability
Passed IEC 61394, IEEE 1138 international certification, can withstand 15mm ice load and 60m/s wind speed.
Typical application scenarios:

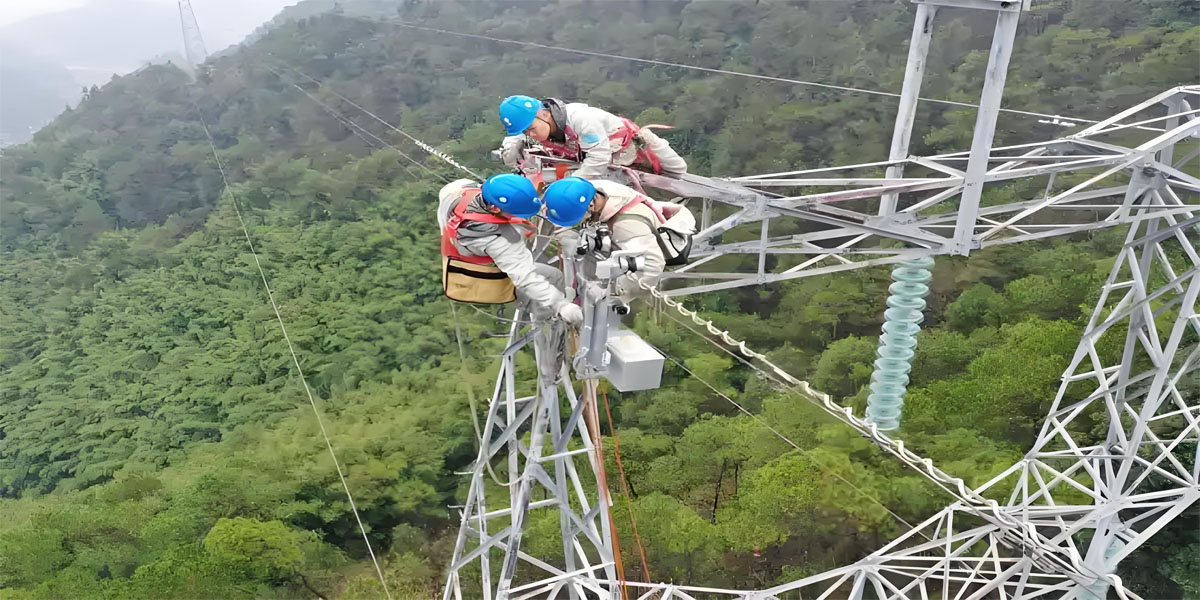

·500kV and above UHV transmission lines.
·Railway traction power supply system.
·Petroleum and petrochemical plant communication network.
·New energy power station monitoring system.
3. Changsha Aoptke Fiber Optics - Communications Equipment Manufacturer
The company's core advantages:
1. Technology leader
10 years of focus on OPGW R&D and production, with 12 national patents, independent research and development of fiber excess length control technology (accuracy ±0.02%)。
2. Strict quality control system
Passed ISO9001, TEL certification, UL certification, and implemented a full-process quality traceability system。
3. Global project experience
·The products have been used in 32 countries, including:
·South America ±800kV UHV DC project.
·Smart transformation of Southeast Asian national power grids.
·African photovoltaic power station cluster monitoring system.
Why choose Aoptke Fiber?
Our OPGW solution has helped 200+ customers around the world achieve:
✓ Reduce communication network construction costs by 40%.
✓ Improve data transmission reliability by 55%.
✓ Shorten project construction period by 30%.
Post time: 2025-02-11 22:30:14
