LC fiber jumper multimode fiber optic cable

LC fiber jumper multimode fiber optic cable

Short Description:

Multimode Gigabit Fiber Optic Jumper (GBM) is a fiber optic connector designed specifically for Gigabit Ethernet (1000base sxlx), which has become a popular choice
The mainstream choice for interconnection within data center cabinets, building local area networks (LANs), and connecting devices.
Enterprise data center equipment perfectly matches the stability and efficiency requirements of gigabit data transmission.
  • Model: SC 1M 2M 3M 5M Or customized
  • Unit: One minimum order
  • Application: Telecommunications
  • Delivery date: 3-15 days

Product Detail

Product Tags

  •  Fiber Optic Patch Cable | Product Standards

    AOPTKE's Fiber Jumpers comply with TIA/EIA-568 and IEC 61754-4 standards, ensuring compatibility across telecom, data centers, and enterprise networks. For customized lengths, connector types, or OEM requirements, contact our expert sales and engineering team.

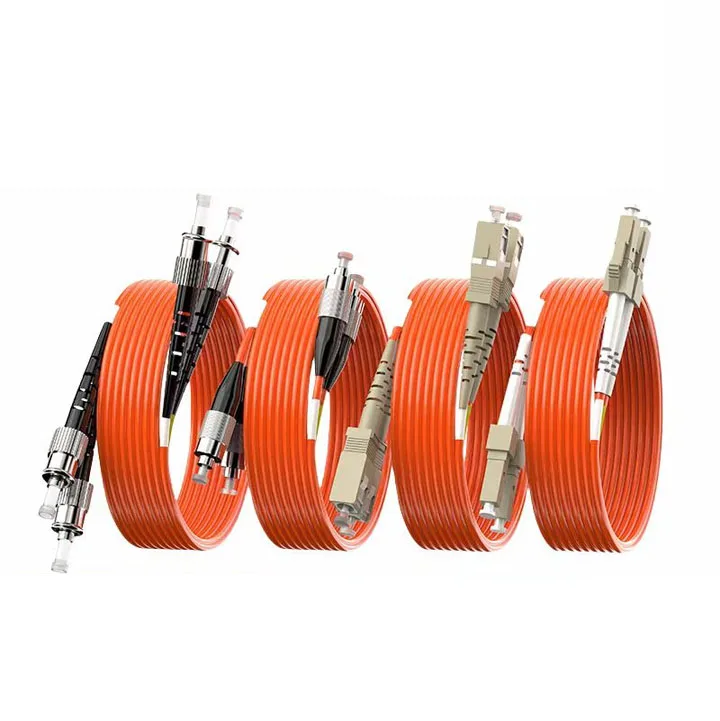

  • 多模光纤跳线 (1).png

    • Fiber Optic Patch Cable | Product Features

    1. Ultra-high-speed & low-loss transmission
    Supports 10G/40G/100Gbps high-speed data transmission, with insertion loss as low as ≤0.2dB (OM3/OM4 standard), meeting high-bandwidth scenarios such as data centers/5G base stations, and passing TIA/EIA-568 certification to ensure signal integrity.

    2. Industrial-grade durable design
    LSZH flame-retardant outer skin + 3mm reinforced armor structure, withstands extreme environments of -40℃~75℃, bending radius as low as 7.5mm (anti-bending type), IP67 protection grade version optional, MTBF over 50,000 hours.

    3. Full protocol compatible solution
    Provides 12 interface combinations such as LC/SC/ST/MPO, single-mode (OS2 9/125μm) & multi-mode (OM3/OM4/OM5) full range coverage, compatible with mainstream devices such as Cisco/Juniper/Huawei, plug-and-play zero configuration.


4.Customizable options:
This product offers a variety of customization options, including customized colors, lengths (1m, 2m, 3m, etc.), cable types (SM/MM), tailoring the product to the specific needs of customers.

Fiber Optic Patch Cable | Structure Parameters

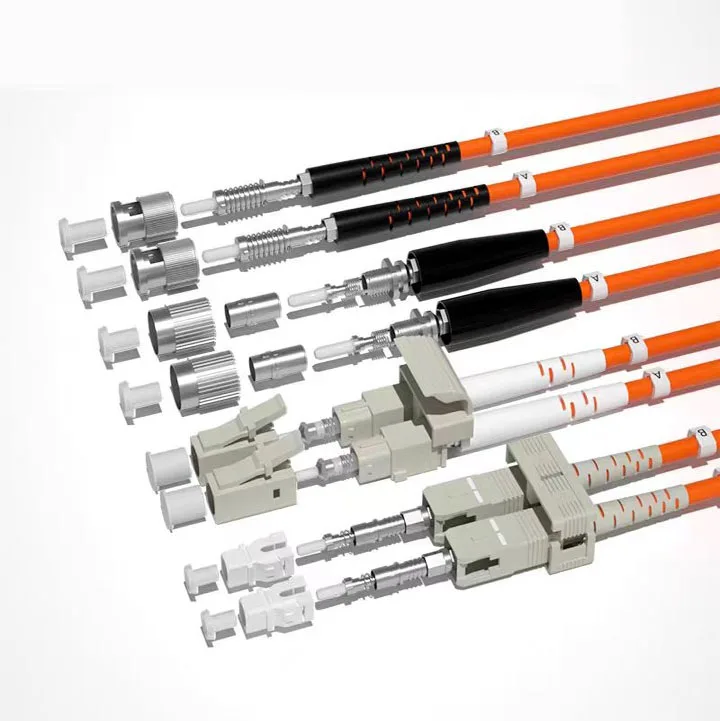

多模光纤跳线 (2).png



Item
Unit
LC/SC/FC/ST Fiber Patch Cord
SM
MM
Fiber Diameter
UM
9/125
65.5/125
50/125
Polishing
PC
UPC
APC
PC
PC
Insertion Loss
dB
≤0.2
≤0.15
≤0.2
≤0.1
≤0.1
Return Loss
dB
≥55
≥50
≥60
≥35dB
≥35dB
Insert-pull Test
dB
≤0.2
≤0.2
≤0.3
≤0.15
≤0.15
Interchangeability
dB
≤0.1
≤0.1
≤0.15
≤0.1
≤0.1
Temperature Range
℃
-40~+80
Durability(1/Matings)
≥1000
Tensile Strength (N)
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber
9/125um, 50/125um,62.5/125um,ect
Diameter
0.9mm 2.0mm, 3.0mm etc
Cores
  • Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
