Fiber Optic Jumpers 10G multimode jumper fiber

Fiber Optic Jumpers 10G multimode jumper fiber

Short Description:

A low loss fiber optic interconnect solution designed specifically for data centers, enterprise networks, and high-performance computing scenarios, supporting high-speed transmission from 10Gbps to 100Gbps. It achieves near zero error signal transmission through laser optimized multimode fiber (50/125 μ m) and precision ceramic plugs, meeting strict standards such as IEEE 802.3ae and ISO/IEC 11801.
  • Model: SC 1M 2M 3M 5M Or customized
  • Unit: One minimum order
  • Application: Telecommunications
  • Delivery date: 3-15 days

Product Detail

Product Tags

  •  Fiber Optic Patch Cable | Product Standards

    AOPTKE's Fiber Jumpers comply with TIA/EIA-568 and IEC 61754-4 standards, ensuring compatibility across telecom, data centers, and enterprise networks. For customized lengths, connector types, or OEM requirements, contact our expert sales and engineering team.

  • 10G multimode jumper fiber (3).png

    • Fiber Optic Patch Cable | Product Features

    1. Ultra-high-speed & low-loss transmission
    Supports 10G/40G/100Gbps high-speed data transmission, with insertion loss as low as ≤0.2dB (OM3/OM4 standard), meeting high-bandwidth scenarios such as data centers/5G base stations, and passing TIA/EIA-568 certification to ensure signal integrity.

    2. Industrial-grade durable design
    LSZH flame-retardant outer skin + 3mm reinforced armor structure, withstands extreme environments of -40℃~75℃, bending radius as low as 7.5mm (anti-bending type), IP67 protection grade version optional, MTBF over 50,000 hours.

    3. Full protocol compatible solution

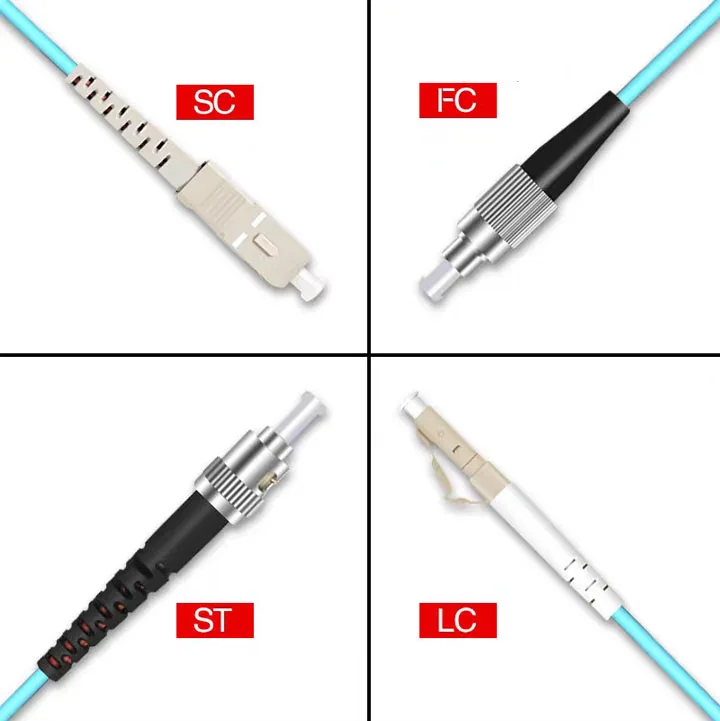

    Provides 12 interface combinations such as LC/SC/ST/MPO, single-mode (OS2 9/125μm) & multi-mode (OM3/OM4/OM5) full range coverage, compatible with mainstream devices such as Cisco/Juniper/Huawei, plug-and-play zero configuration.


4.Customizable options:
This product offers a variety of customization options, including customized colors, lengths (1m, 2m, 3m, etc.), cable types (SM/MM), tailoring the product to the specific needs of customers.

Fiber Optic Patch Cable | Structure Parameters

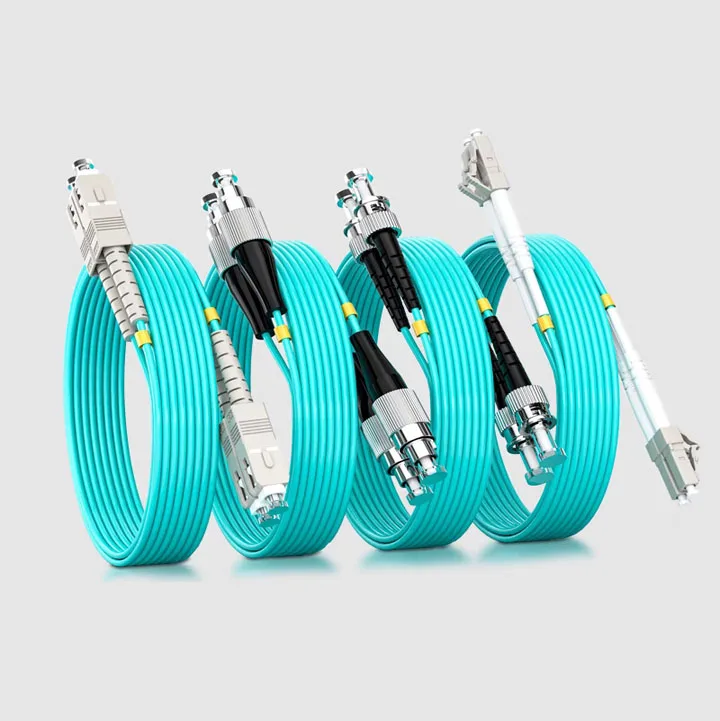

10G multimode jumper fiber (2).png



Item
Unit
LC/SC/FC/ST Fiber Patch Cord
SM
MM
Fiber Diameter
UM
9/125
65.5/125
50/125
Polishing
PC
UPC
APC
PC
PC
Insertion Loss
dB
≤0.2
≤0.15
≤0.2
≤0.1
≤0.1
Return Loss
dB
≥55
≥50
≥60
≥35dB
≥35dB
Insert-pull Test
dB
≤0.2
≤0.2
≤0.3
≤0.15
≤0.15
Interchangeability
dB
≤0.1
≤0.1
≤0.15
≤0.1
≤0.1
Temperature Range
℃
-40~+80
Durability(1/Matings)
≥1000
Tensile Strength (N)
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber
9/125um, 50/125um,62.5/125um,ect
Diameter
0.9mm 2.0mm, 3.0mm etc
Cores
  • Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
