OPGW Cable Tension Clamp | Product Standards

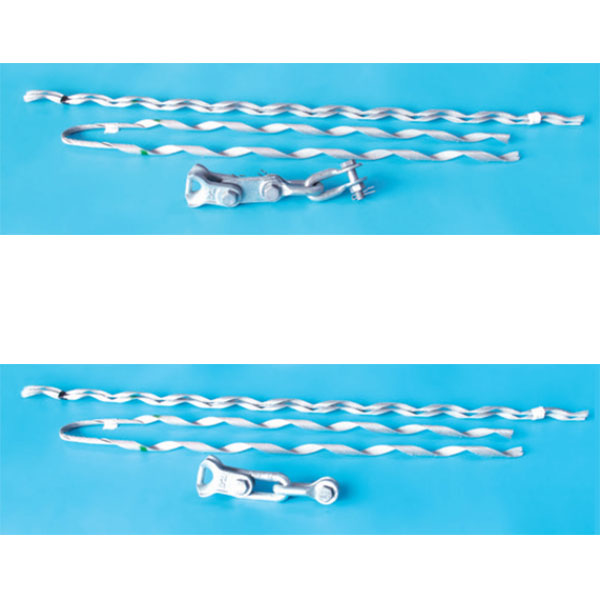

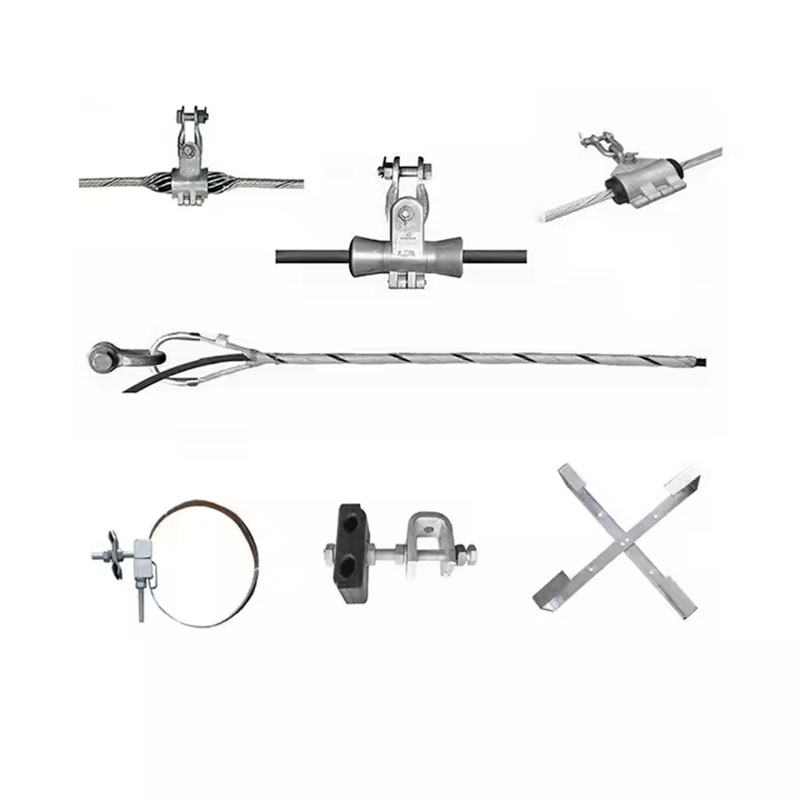

The complete set of OPGW tension wire clamps includes: one set of inner sheath wire pre-twisted wires, one set of outer tension wire pre-twisted wires, one heart-shaped ring, one hanging plate, and two sets of U-shaped hanging rings.Please let AOPTKE CABLE select the appropriate tension clamp for you according to the cable diameter and tensile strength of the cable.
|
|
OPGW Cable Tension Clamp | Product Features
·Inner layer sheath wire pre-twisted wire: Made of aluminum-clad steel wire, the inner wall of the pre-twisted wire has a layer of white corundum corundum to increase friction.
·Outer layer tension pre-twisted wire: Made of aluminum-clad steel wire, the pre-twisted wire is made into a bundle, and white corundum corundum is glued to the inner wall to increase the tensile strength of the tension clamp under the condition of reducing pressure on the optical cable.
·Heart-shaped ring: hot-dip galvanized precision casting. The breaking load is 70kN, 100kN, and 120kN.
·Hanging plate: hot-dip galvanized steel, which connects the heart-shaped ring and the U-shaped hanging ring. The breaking load is 70kN, 100kN, and 120kN.
·U-shaped hanging ring: hot-dip galvanized steel U-shaped hanging ring, which plays the role of connecting with the pole tower fasteners.
OPGW Cable Tension Clamp | Structure Parameters
The broken strength 70KN range
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
ONY 0900 70
|
8.1
|
9
|
12
|
2.3
|
1400
|
7
|
2.9
|
1000
|
red
|
ONY 1010 70
|
9.1
|
10.1
|
14
|
2.3
|
1500
|
7
|
2.9
|
1000
|
red
|
ONY 1140 70
|
10.2
|
11.4
|
14
|
2.3
|
1600
|
7
|
3.6
|
1120
|
Yellow
|
ONY 1280 70
|
11.5
|
12.8
|
15
|
2.3
|
1620
|
7
|
3.6
|
1200
|
Green
|
ONY 1410 70
|
12.9
|
14.1
|
14
|
2.9
|
1660
|
7
|
3.6
|
1240
|
red
|
ONY 1550 70
|
14.2
|
15.5
|
16
|
2.9
|
1800
|
8
|
3.6
|
1400
|
red
|
The broken strength 100KN range
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
ONY 1140 100
|
10.5
|
11.4
|
14
|
2.3
|
1640
|
7
|
3.6
|
1220
|
Yellow
|
ONY 1280 100
|
11.5
|
12.8
|
13
|
2.9
|
1720
|
7
|
3.6
|
1300
|
Green
|
ONY 1410 100
|
12.9
|
14.1
|
14
|
2.9
|
1800
|
8
|
3.6
|
1400
|
red
|
ONY 1550 100
|
14.2
|
15.5
|
16
|
2.9
|
1800
|
8
|
3.6
|
1400
|
balck
|
ONY 1730 100
|
15.6
|
17.3
|
17
|
2.9
|
2000
|
8
|
3.6
|
1600
|
balck
|
The broken strength 120KN range
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
ONY 1280 120
|
11.5
|
12.8
|
14
|
2.9
|
1770
|
8
|
3.6
|
1350
|
Green
|
ONY 1410 120
|
12.9
|
14.1
|
14
|
2.9
|
2000
|
8
|
3.6
|
1600
|
red
|
ONY 1550 120
|
14.2
|
15.5
|
16
|
2.9
|
2000
|
8
|
3.6
|
1600
|
balck
|
ONY 1730 120
|
15.6
|
17.3
|
17
|
2.9
|
2300
|
8
|
3.6
|
1750
|
balck
|
