Suspension Set | Product Standards

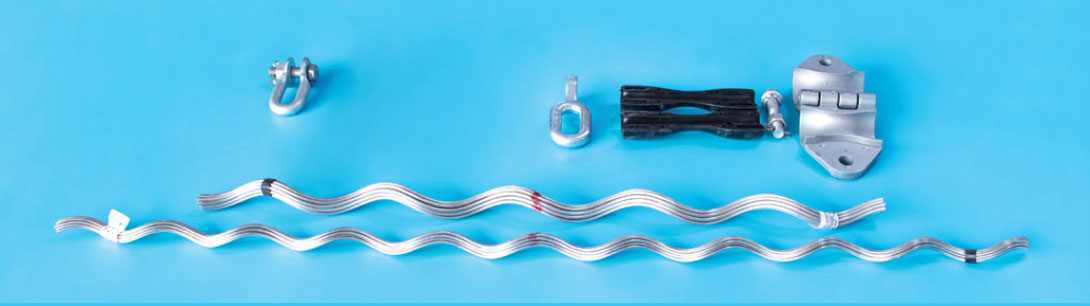

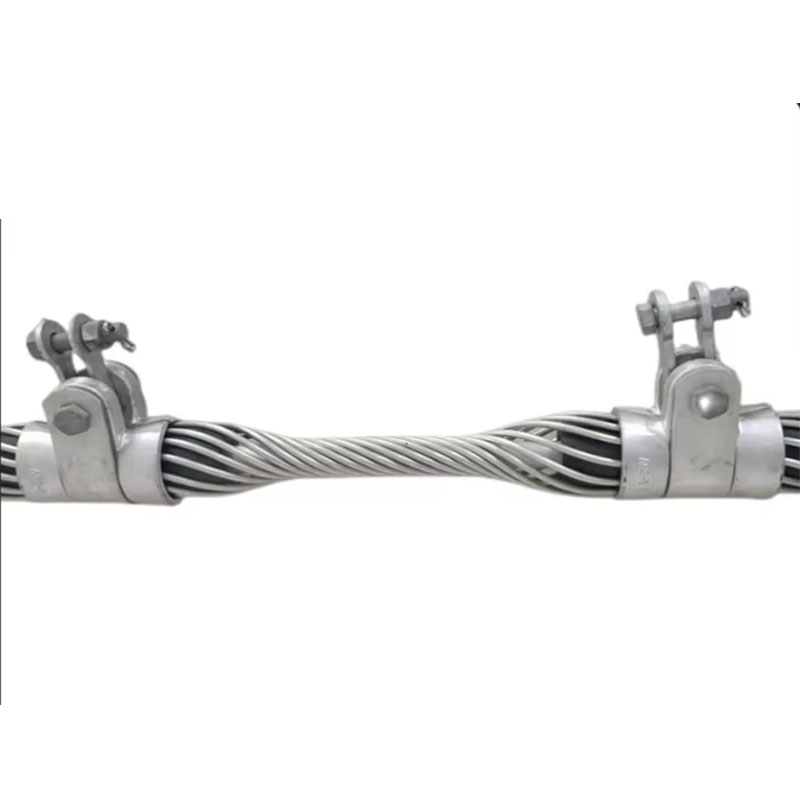

Suspension Set has a gripping force of 10%-20% RTS (RTS is the ultimate tensile strength of the optical cable), and is suitable for a span greater than 200m. It consists of an inner pre-twisted wire sheath, an outer pre-twisted wire, a set of suspension components (a set of suspension housing, a set of rubber gaskets, and a set of bolts, nuts, and washers), a set of right-angle hanging rings, and a set of U-shaped hanging rings.
Suspension Set | Product Features
·Inner pre-twisted wire sheath: Made of specific aluminum alloy wire, directly wrapped around the outer layer of the optical cable.
·Outer pre-twisted wire: Made of specific aluminum alloy wire.

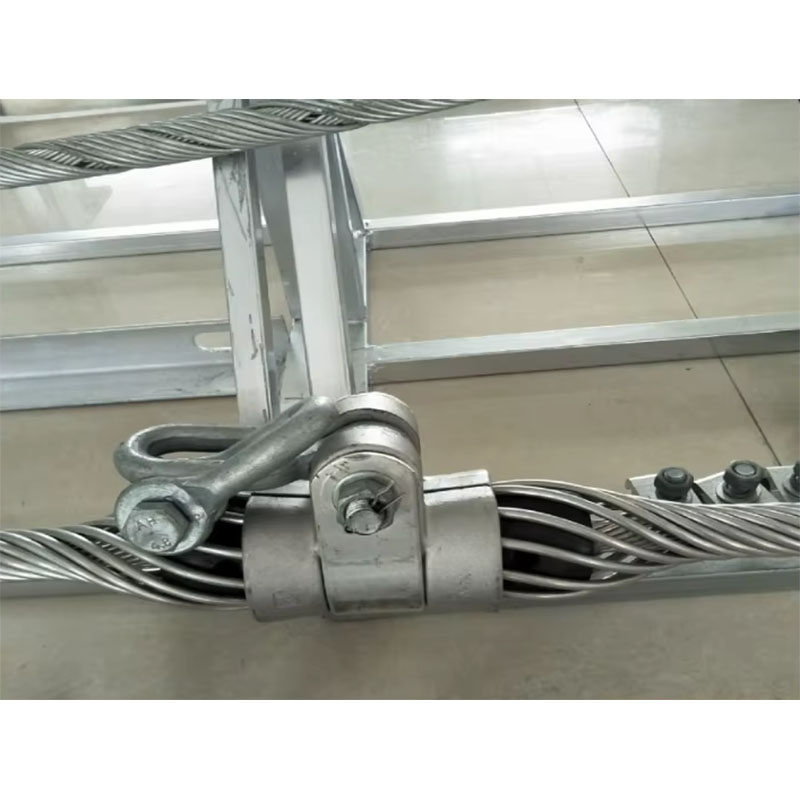

·Suspension assembly: Consists of (a) rubber gasket, (b) aluminum casing, (c) bolt, (d) washer, () nut, (f) anti-loosening pin. The rubber gasket is made of high-quality rubber and central reinforcement, with high strength and elasticity, and small compression deformation; the aluminum casing is made of corrosion-resistant aluminum alloy pressure casting; bolts, nuts, washers, and anti-loosening pins are hot-dip galvanized standard parts.
·U-type hanging ring: hot-dip galvanized steel U-type hanging ring, U-4, the breaking load is 40kN; U-7, the breaking load is 70kN.
·ZH-type hanging ring: hot-dip galvanized steel ZH-type hanging plate, ZH-4, the breaking load is 40kN; ZH-7, the breaking load is 70kN.
Suspension Set | Structure Parameters
Application the Short-Span ADSS(The angle s 25.The broken strength:20 kN.The recommended span:200-300m）
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
AXY 1200 300
|
11.1
|
12
|
14
|
4.2
|
820
|
13
|
3.0
|
1180
|
Green
|
AXY 1300 300
|
12 1
|
13
|
14
|
4.2
|
820
|
14
|
3.0
|
1180
|
Green
|
AXY 1400 300
|
13.1
|
14
|
14
|
4.2
|
940
|
14
|
3.0
|
1260
|
red
|
AXY 1500 300
|
14.1
|
15
|
15
|
4.2
|
980
|
16
|
3.0
|
1300
|
balck
|
AXY 1600 300
|
15.1
|
16
|
16
|
4.2
|
980
|
16
|
3.0
|
1300
|
balck
|
Application the Short-Span ADSS(The angle s 25.The broken strength:30 kN.The recommended span:300-400m)
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
AXY 1200 400
|
11.1
|
12
|
14
|
4.2
|
1000
|
13
|
3.0
|
1320
|
Green
|
AXY 1300 400
|
12.1
|
13
|
14
|
4.2
|
1000
|
14
|
3.0
|
1320
|
Green
|
AXY 1400 400
|
13.1
|
14
|
14
|
4.2
|
1040
|
14
|
3.0
|
1360
|
red
|
AXY 1500 400
|
14.1
|
15
|
15
|
4.2
|
1080
|
16
|
3.0
|
1400
|
balck
|
AXY 1600 400
|
15.1
|
16
|
16
|
4.2
|
1200
|
16
|
3.0
|
1600
|
red
|
Application the Middle-Span ADSS（The angle s 25.The broken strength:40 kN.The recommended span:300-500m.
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
AXY 1300 500
|
12.1
|
13
|
13/14
|
5.18/4.2
|
1200
|
14
|
3.0
|
1520
|
Green
|
AXY 1400 500
|
13.1
|
14
|
14
|
5.18/4.2
|
1150
|
14
|
3.0
|
1560
|
Green
|
AXY 1500 500
|
14.1
|
15
|
15
|
4.2
|
1170
|
16
|
3.0
|
1600
|
red
|
AXY 1600 500
|
15.1
|
16
|
16
|
4.2
|
1190
|
16
|
3.0
|
1640
|
balck
|
Application the Long-Span ADSS(The angle s 25.The broken strength:50 kN.The recommended span:500-600m）
|
Type
|
Applicable optical cable（mm）
|
Outer rods
|
Inner rods
|
Code
|
Minimum value (min)
|
Maximum value (max)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
Number of roots
|
Wire diameter (mm)
|
Finished product length (mm)
|
AXY 1300 600
|
12.1
|
13
|
13
|
5.18
|
1300
|
14
|
3.0
|
1620
|
Green
|
AXY 1400 600
|
13.1
|
14
|
13
|
5.18
|
1300
|
14
|
3.0
|
1620
|
red
|
AXY 1500 600
|
14.1
|
15
|
14
|
5.18
|
1300
|
16
|
3.0
|
1620
|
balck
|
AXY 1600 600
|
15.1
|
16
|
13
|
5.18
|
1300
|
16
|
3.0
|
1620
|
balck
|
AXY 1700 600
|
16.1
|
17
|
13
|
5.18
|
1300
|
16
|
3.0
|
1620
|
balck
|
