Fiber Optic Patch Cable | Product Standards
AOPTKE's SC Fiber Jumpers comply with TIA/EIA-568 and IEC 61754-4 standards, ensuring compatibility across telecom, data centers, and enterprise networks. For customized lengths, connector types, or OEM requirements, contact our expert sales and engineering team.
-
-
Fiber Optic Patch Cable | Product Features
1. Ultra-high-speed & low-loss transmission
Supports 10G/40G/100Gbps high-speed data transmission, with insertion loss as low as ≤0.2dB (OM3/OM4 standard), meeting high-bandwidth scenarios such as data centers/5G base stations, and passing TIA/EIA-568 certification to ensure signal integrity.
2. Industrial-grade durable design
LSZH flame-retardant outer skin + 3mm reinforced armor structure, withstands extreme environments of -40℃~75℃, bending radius as low as 7.5mm (anti-bending type), IP67 protection grade version optional, MTBF over 50,000 hours.
3. Full protocol compatible solution

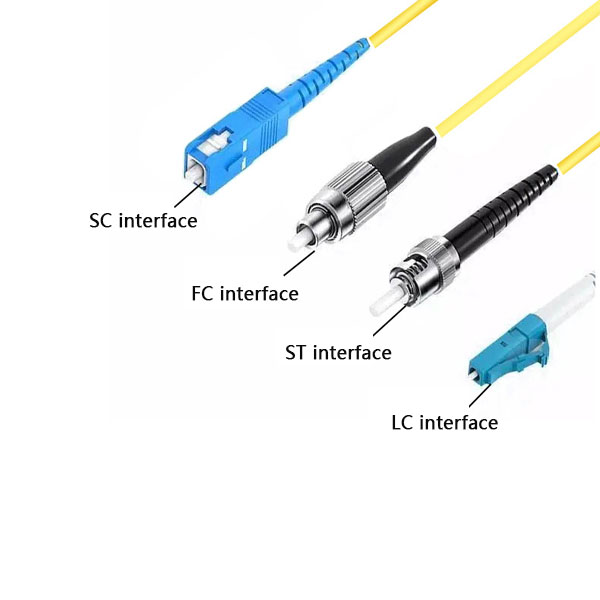

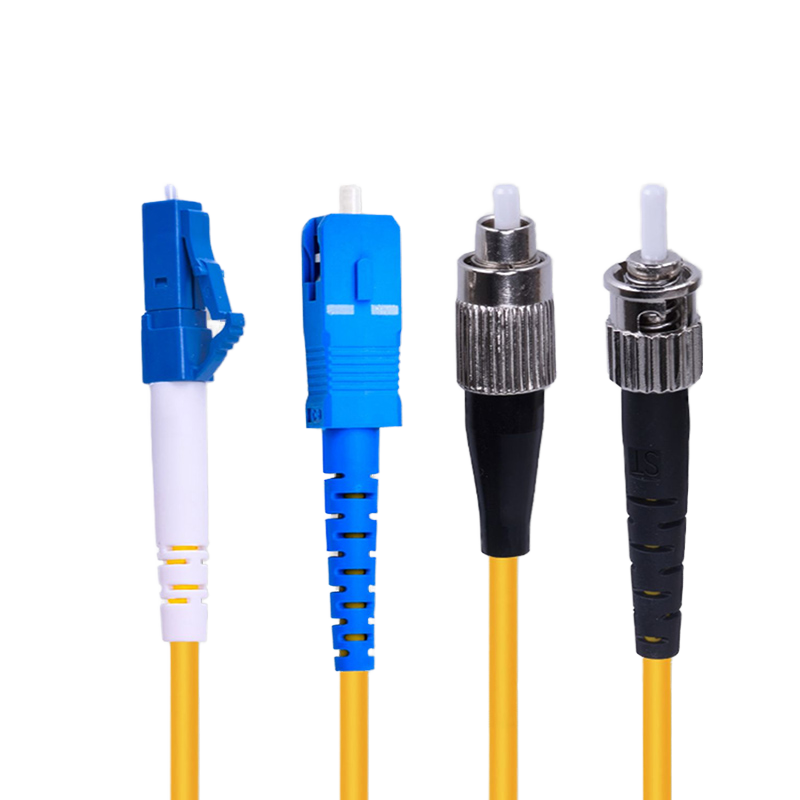

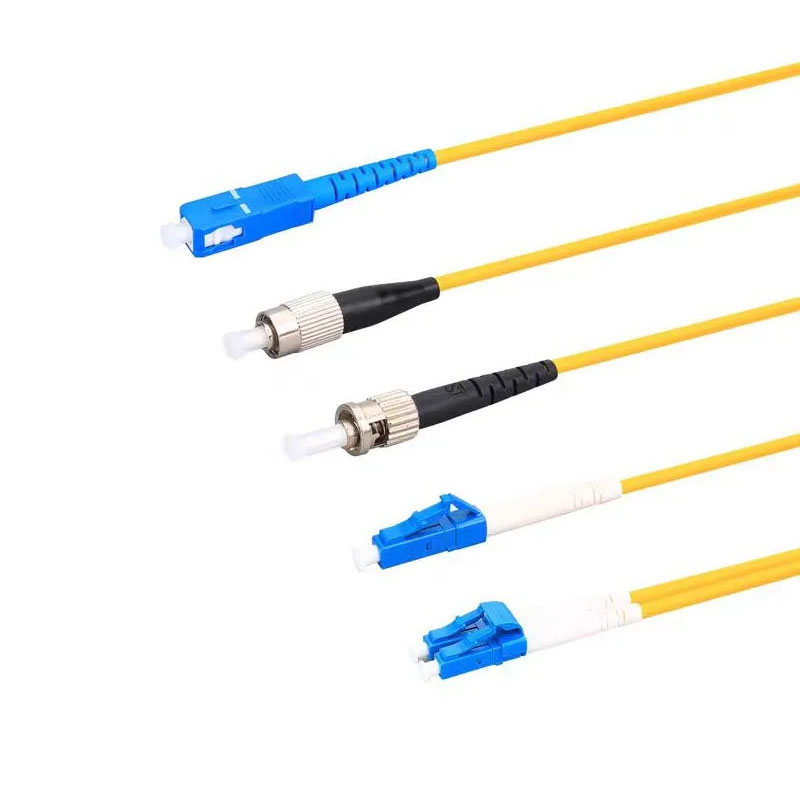

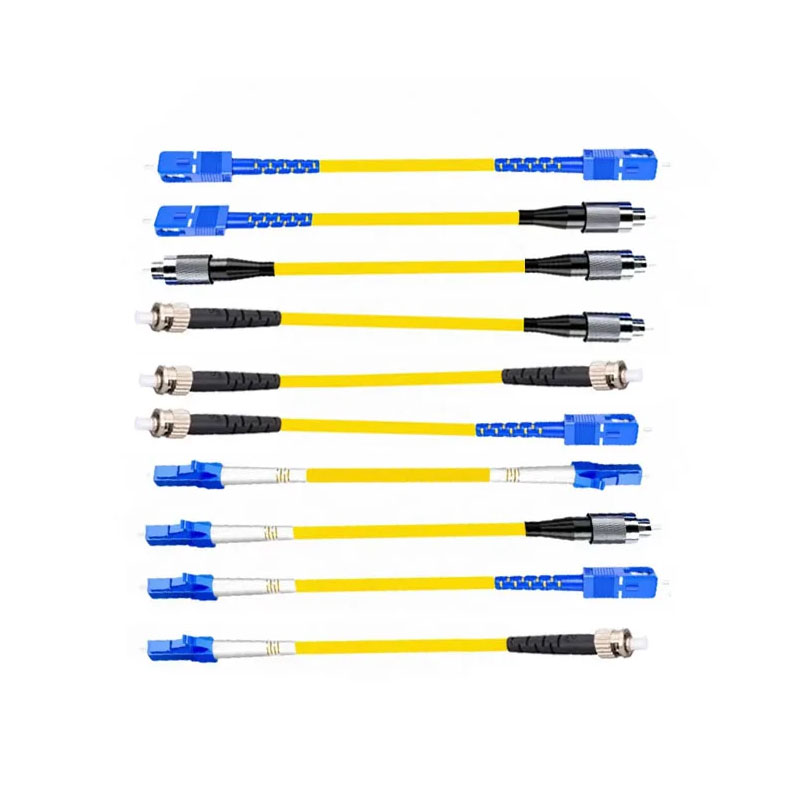

Provides 12 interface combinations such as LC/SC/ST/MPO, single-mode (OS2 9/125μm) & multi-mode (OM3/OM4/OM5) full range coverage, compatible with mainstream devices such as Cisco/Juniper/Huawei, plug-and-play zero configuration.
-
4.Customizable options:
This product offers a variety of customization options, including customized colors, lengths (1m, 2m, 3m, etc.), cable types (SM/MM), tailoring the product to the specific needs of customers.

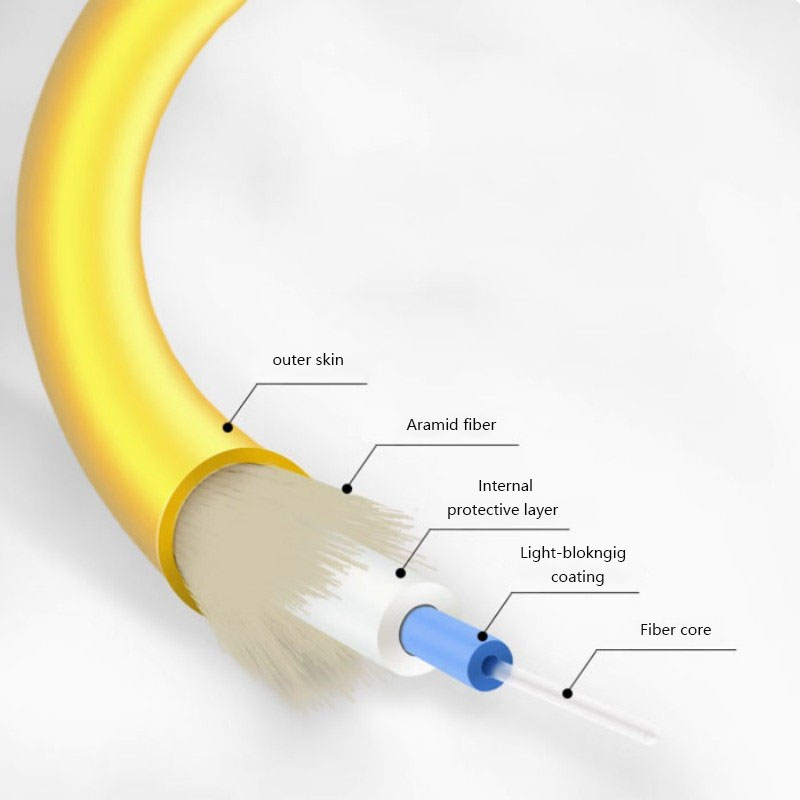

Fiber Optic Patch Cable | Structure Parameters
model
|
SM
|
MM
|
Polishing
|
APC
|
UPC
|
UPC
|
Insertion loss
|
≤ 0.3dB
|
≤0.3dB
|
≤0.3dB
|
Return loss
|
≥ 60dB
|
≥ 55dB
|
≥ 35dB
|
Interchangeability
|
≤ 0.2dB
|
Salt spray
|
≤ 0.2dB
|
Repeatability
|
≤ 0.1dB (1,000次)
|
High temperature
|
≤ 0.2dB (+ 85 ℃ 168 hours)
|
Low temperature
|
≤ 0.2dB (-40℃ 168 hours)
|
Temperature cycling
|
≤ 0.2dB (-40 ℃ ~ 85 ℃ 21 cycles 168 hours)
|
Humidity
|
≤0.2dB (95%75℃168 hours)
|

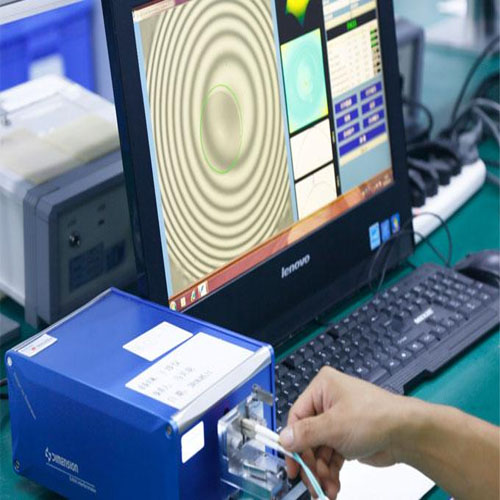

Vertex offset
|
0~50um
|
Radius of curvature
|
7~25mm
|
Undercut
|
-50~50mm
|
Durability
|
≥1,000 matings
|
Tensile strength
(Standard is polyester)
|
Aramid yarn: ≥90N (3.0mm), ≥70N (2.0mm)
Polyester: ≥50N (3.0mm), ≥40N (2.0mm)
|
Vibration
|
≤0.1dB (10-55hz 1.5mm)
|
Drop
|
≤0.2dB (1.5m high, 8 times)
|
Operating temperature
|
-40°C~+80°C
|
-

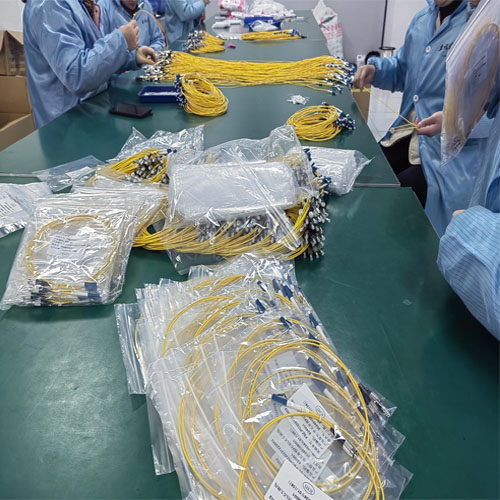

Fiber Optic Patch Cable | Packaging and delivery
