Round GJFJU (TPU) micro drop cable ADSS 3.0mm
GJFJU (TPU) CABLE | Product Standards
The round GJFJU (TPU) micro drop cable is suitable for indoor and outdoor fiber-to-the-home (FTTH) and narrow space wiring. It has both flexibility and mechanical protection performance and is certified by IEC and YD/T standards.
|
|
GJFJU (TPU) CABLE | Product Features
·Non-metallic design protects the cable from radio interference and electromagnetic wave interference.
·Central tube filling compound ensures good moisture resistance.
·Compact structure, can be terminated on site.
·All-dielectric structure, anti-electromagnetic interference.
·Easy to strip and connect, simplify installation and maintenance.

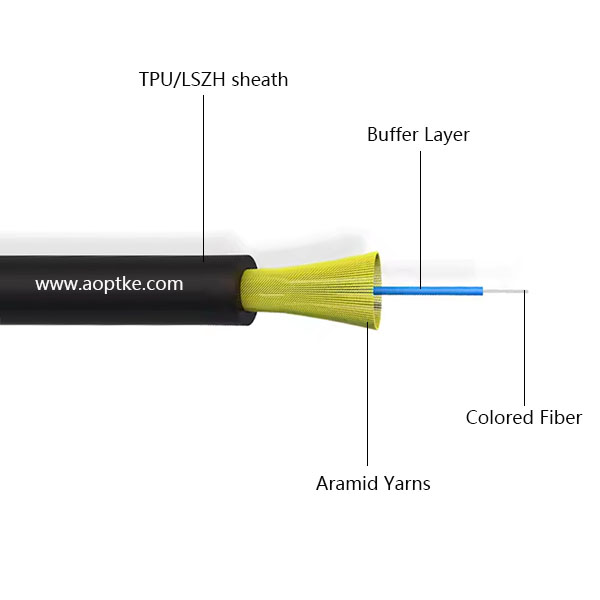

GJFJU (TPU) CABLE | Structure Parameters
Item |
Description
|
|
Tight Buffer Fiber |
Fiber Count |
1FO
|
Fiber Type |
G.657A1、G.657A2、G.657B3
|
|
Fiber Color |
Natural
|
|
Diameter |
0.9mm
|
|
Tight Buffer Color |
Blue or Customized color
|
|
Material |
LSZH
|
|
Strength Member |
Material |
Aramid yarn
|
Outer Sheath |
Material |
TPU
|
Color |
Black
|
|
Thickness |
0.7~0.8mm
|
|
Diameter |
3.0±0.1mm
|
|
Span |
50~100m
|
|
Installation Sag |
1%
|
|
Max. Wind Speed |
50km/ hour
|
|
Tensile |
800N
|
|
Strain |
0.6%
|
|
Cable Weight |
9.8kg/ km
|
|
|
Fiber count
|
cable diameter (mm)
|
Tensile Stregnth (N)
|
Crush Resistance(N/100mm）
|
Minimum bend radius(mm)
|
|||
|
short term
|
long term
|
short term
|
long term
|
Dynamic
|
static
|
||
|
1
|
3.0
|
300
|
150
|
1000
|
500
|
20D
|
10D
|
|
2
|
3.5*6.5
|
600
|
300
|
1000
|
500
|
20D
|
10D
|
|
4
|
3.7*6.5
|
600
|
300
|
1000
|
5000
|
20D
|
10D
|
GJFJU (TPU) CABLE | Packaging and delivery
Length |
Packaging Type |
Dimensions (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|---|---|---|---|---|
2 km |
Fumigation-free wooden barrel |
900×750×900 |
156 |
220 |
3 km |
Fumigation-free wooden barrel |
1000×680×1000 |
280 |
340 |
4 km |
Fumigation-free wooden barrel |
1090×750×1000 |
300 |
368 |
5 km |
Fumigation-free wooden barrel |
1290×720×1290 |
400 |
480 |
|
|
|
|
