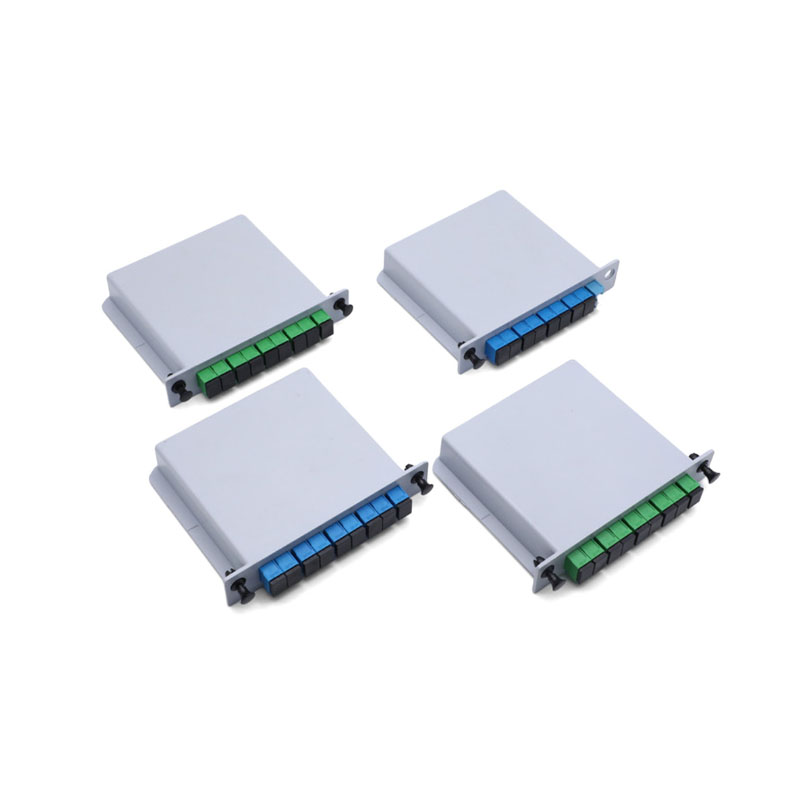

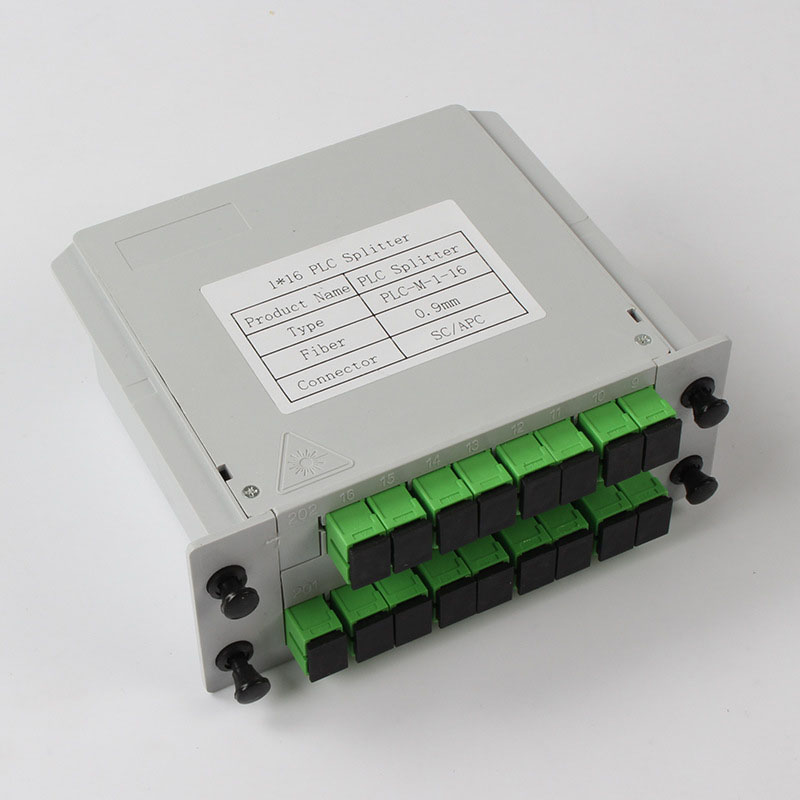

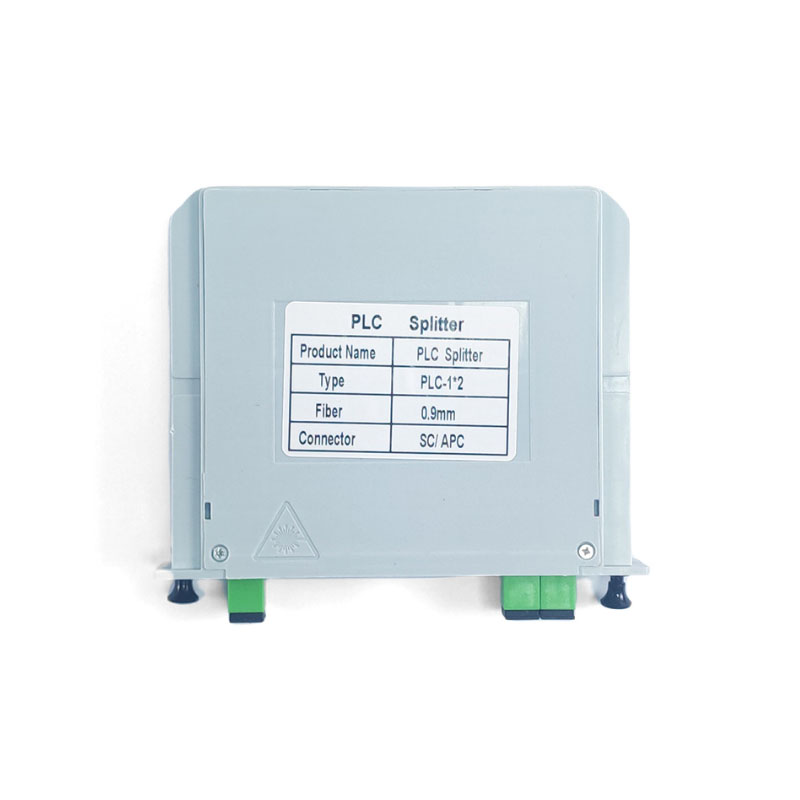

PLC Fiber Splitter Cassette type

Short Description:

PLC-based optical splitters are passive fiber-optic devices designed to efficiently split optical signals from 1x2 to 1x128 configurations, ideal for FTTX deployments, PON networks, and data center interconnects. Featuring SC/UPC or SC/APC connectors, these compact splitters utilize planar lightwave circuit (PLC) technology to ensure uniform signal distribution with low insertion loss (<3.5dB) and high stability.


  • Model: PLC Fiber Splitter Cassette type
  • Application: FTTX (FTTP, FTTH, FTTN, FTTC)
  • Delivery time: 3-15 days

Product Detail

Product Tags


PLC Fiber Splitter | Product Standards


PLC splitters support compact 1xN/2xN configurations (N=2-128), leveraging monolithic chip integration to achieve high-density miniaturization for FTTH deployments. Designed for PON networks, these devices enable precise optical power distribution while maintaining signal integrity. Customizable splitting ratios (max 1×128 or 2×128) ensure adaptability to diverse network architectures.


PLC Fiber Splitter | Product Features


·Low Insertion loss.

·Low PDL.

·Uniform Power Splitting.

·Wide Operating Wavelength and Temperature.

·Excellent Environmental & Mechanical Stability.

·Qualified Under Telcordia GR-1221 and GR-1209.


PLC Fiber Splitter | Structure Parameters


Type

1x2

1×4

1×8

1×16

1×32

1×64

2x2

2×4

2×8

2×16

2×32

2×64

Operating wavelength(nm)

1260-1650

Insertion loss (dB)

Typical

3.6

6.8

10.0

13.0

16.5

20.5

4.0

7.3

10.5

13.5

17.0

20.5

Maximum

3.8

7.2

10.7

13.9

17.2

22.0

4.2

7.6

10.8

14.0

17.5

22.0

Uniformity (dB)

Typic

al

0.4

0.5

0.6

1.0

1.0

2.5

0.6

0.8

1.0

1.5

2.0

2.0

Maximum

0.6

0.8

1.0

1.4

1.6

2.5

0.8

1.0

1.5

2.0

2.5

2.5

Polarization Dependent Loss (dB)

Typical

0.1

0.1

0.15

0.2

0.2

0.2

0.1

0.1

0.1

0.2

0.2

0.2

Maximum

0.2

0.3

0.3

0.3

0.3

0.3

0.2

0.2

0.3

0.4

0.4

0.4

Wavelength dependent loss (dB)

Typical

0.1

0.1

0.15

0.3

0.3

0.1

0.1

0.1

0.1

0.1

0.2

0.2

Maximum

0.2

0.3

0.3

0.5

0.5

0.2

0.2

0.2

0.3

0.5

0.5

0.5

Return loss (dB)

Minimum

UPC:50  APC:55

Directivity (dB)

Minimum

55

Operating temperature (°C)

-20 to 70

Storage temperature (°C)

-40 to 85

Optical fiber type

SMF-28e Or customer required

Optical fiber length (m)

1M or customize

Remarks:

1 . Measured at room temperature and excludes connector loss.

2 . For devices with connectors insertion loss will be 0.3 dB higher.
