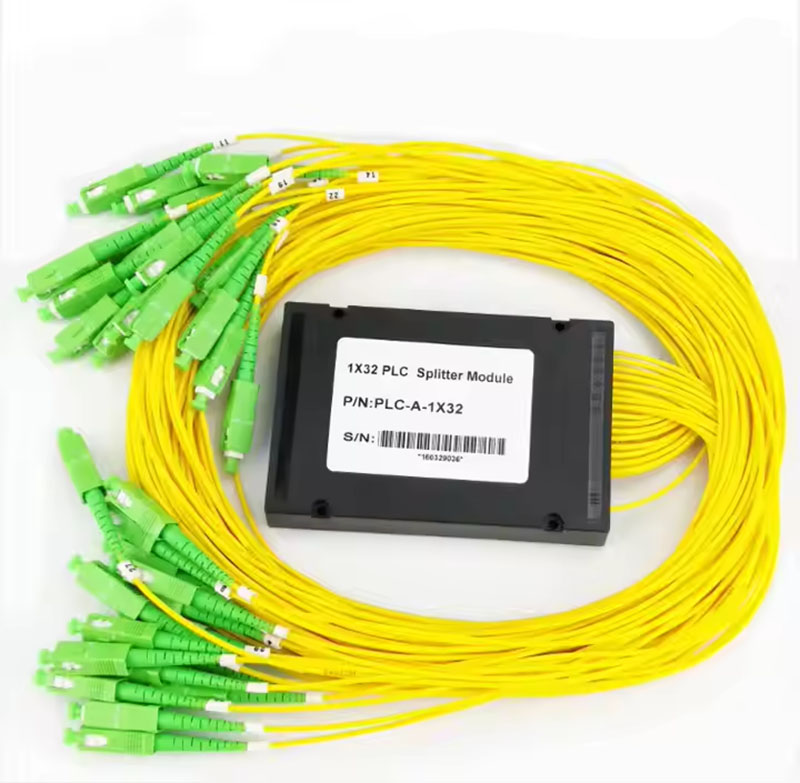

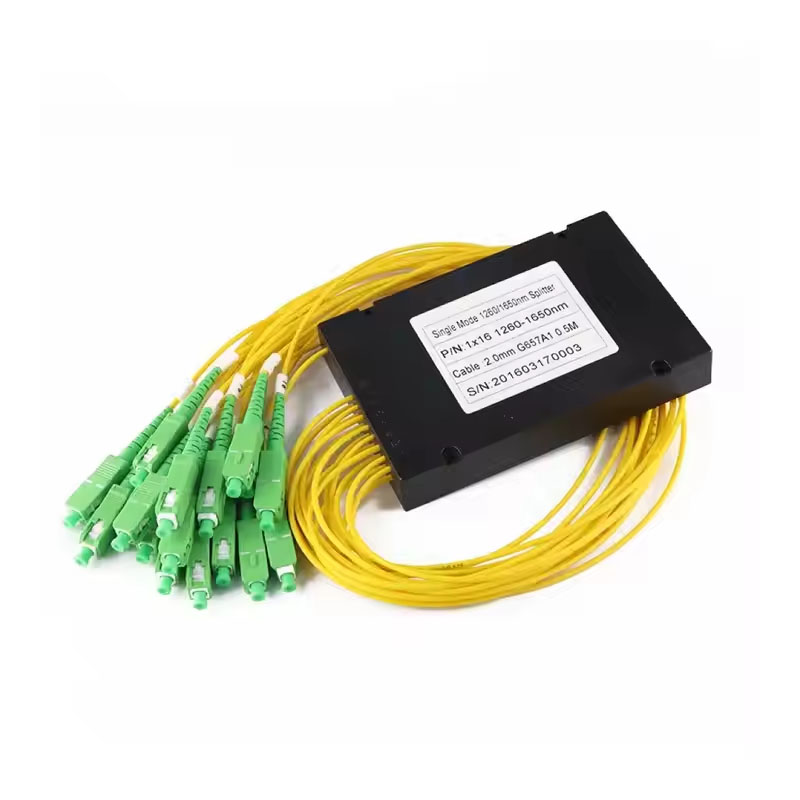

PLC Fiber Splitter ABS| Product Standards

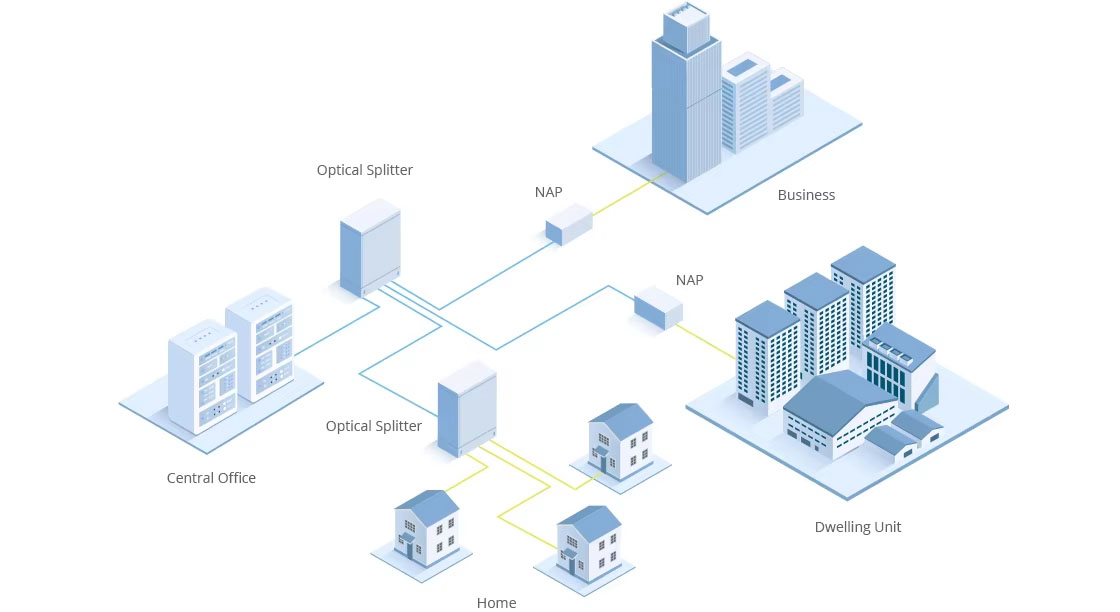

Optical splitter Widely Used in FTTX Projects and Data Communication Centers,has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
PLC Fiber Splitter ABS | Product Features
·Low Insertion Loss and High Uniform.
·Low Polarization Dependent Loss.
·Excellent Environmental Stability.
·Excellent Mechanical Stability.
·Telcordia GR-1221 and GR-1209.
PLC Fiber Splitter ABS | Structure Parameters
Configuration
|
1X2
|
1X4
|
1X8
|
1X16
|
1X32
|
1X64
|
1X128
|
Operating Wavelength (nm)
|
1260~1650
|
Fiber Type
|
G657A1 or others specified
|
Insertion Loss(P/A Grade Max.dB)
|
3.8/4.0
|
7.2/7.4
|
10.3/10.7
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
Loss Uniformity
(Max. dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
PDL(Max.dB)
|
0.1
|
0.1
|
0.1
|
0.20
|
0.25
|
0.30
|
0.40
|
Return Loss(Min.dB)
|
55
|
Directivity(Min.dB)
|
55
|
Wavelength Dependent Loss (Max. dB)
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
Fiber Length(m)
|
1.5(±0.1) or others specified
|
Temperature Stability(-40~+85℃,Max.dB)
|
0.5
|
Operating Temperature(℃)
|
-40~+85
|
Storage Temperature(℃)
|
-40~+85
|
Maximum Power Handling (mW)
|
500
|
