Outdoor Cat5 | Product Standards
AOPTKE is a 10-year reliable fiber optic equipment manufacturer. We can provide 5e, 6e, 7e Ethernet cables. We can customize the data cables according to customers' needs.
Outdoor Cat5 | Product Features

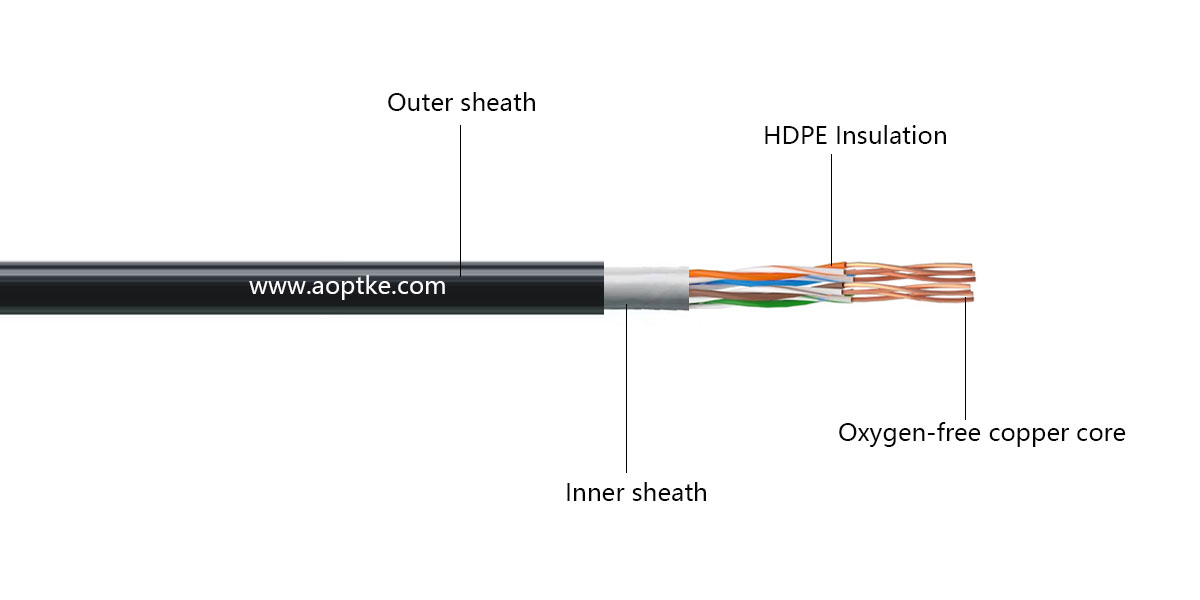

1.Double sheath protection design
Outer high-density wear-resistant layer + inner waterproof and anti-extension, double resistance to physical wear, electromagnetic interference (EMI) and external signal crosstalk, to ensure stable data transmission, especially suitable for high-interference scenarios such as industrial environments and computer rooms.
2.Gigabit network compatible
Compliant with Cat5e standard, supports up to 1000Mbps transmission rate, bandwidth of 100MHz, perfectly adapted to home broadband, enterprise LAN, monitoring system (PoE power supply), smart home and other scenarios, compatible with routers, switches, NAS and other devices.
3.Oxygen-free copper conductor, low attenuation
24AWG oxygen-free copper (OFC) wire core, reduces signal loss, transmission distance up to 100 meters without attenuation, ensuring smooth transmission of high-definition video and large files without jamming.
4.Flexible and durable, long life
Tensile nylon braided wire body + anti-entanglement design, resistant to bending and high temperature (-20℃~75℃), suitable for complex installation environments such as pipe penetration, wall burial, and outdoor wiring.

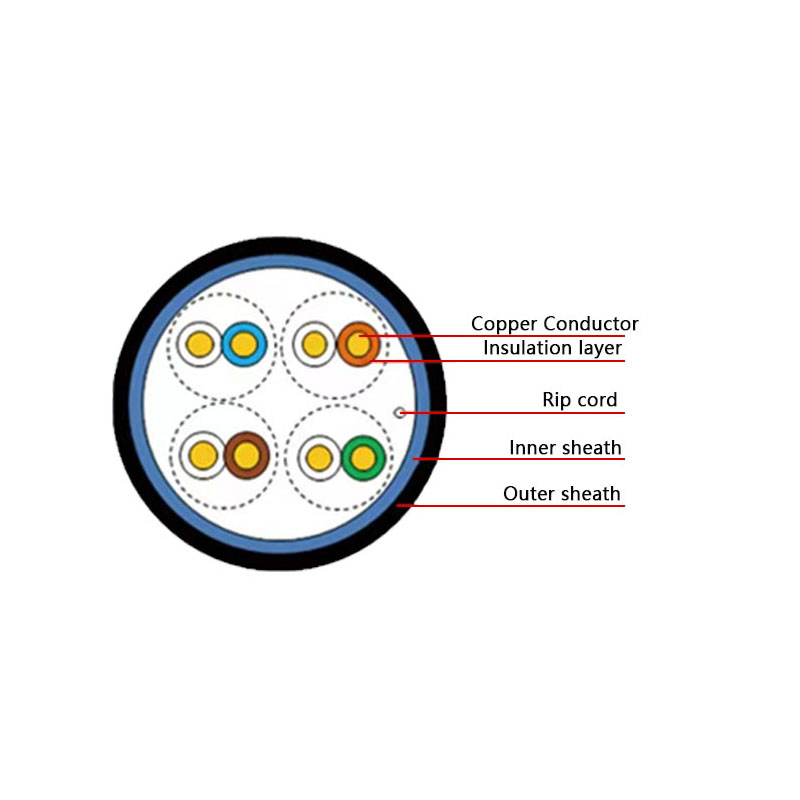

Outdoor Cat5 | Structure Parameters
Frequency (MHz)
|
Return loss
dB(Min)
|
Max.
dB/100m
|
Near-end crosstalk
dB(Min)
|
Near string attenuation
Power and
dB(Min)
|
Equal level
Far end crosstalk
dB(Min)
|
Equal level long-range string
Reduction power sum
dB(Min)
|
4
|
23.0
|
4.1
|
56.3
|
53.3
|
52.0
|
49.0
|
8
|
24.5
|
5.8
|
51.8
|
48.8
|
45.9
|
42.9
|
16
|
25.0
|
8.2
|
47.2
|
44.2
|
39.9
|
36.9
|
20
|
25.0
|
9.3
|
45.8
|
42.8
|
38.0
|
35.0
|
31.25
|
23.6
|
11.7
|
42.9
|
39.9
|
34.1
|
31.1
|
62.5
|
21.5
|
17.0
|
38.4
|
35.4
|
28.1
|
25.1
|
100
|
20.1
|
22.0
|
35.3
|
32.3
|
24.0
|
21.0
|
Outdoor Cat5 | Category parameters
Model
(Modelos)
|
E-UTP5-EXT
|
B-UTP5-EXT
|
HE-UTP5-EXT
HE-UTP5H-EXT
|
HP--UTP5-EXT
|
Quality series
|
Economical
|
Basic
|
High quality Economical
|
High Quality Performance
|
Fluke Pass
|
NO
|
NO
|
YES
|
YES
|
Shield Type
|
Unshield UTP
|
Conductor
|
CCA
|
Bare Copper
|
CCA,HCCA
|
Bare Copper
|
Copper Content
|
30%
|
100%
|
40%,50%,60%,80%
|
|
Conductor size
|
24/25/26AWG or customized
|
Conductor resistance
|
26Ω/100M
|
9.8Ω/100M
|
CCA 18Ω/100M / HCCA 13Ω/100M
|
9.8Ω/100M
|
Network working distance
|
≤100M
|
≥200M
|
≤120M， ≤180M
|
≥200M
|
IP camera working distance
|
≤80M
|
≤150M
|
≤110M, ≤160M
|
≥160M
|
OD
|
5.4±0.02mm
|
Packing
|
100M, 305M/Pull Box, 305M, 500M/wooden drum or customized
|
Color
|
Black
|
