OPGW Stranded | Product Standards
AOPTKE's OPGW cables are compliant with IEEE 1138, IEC 60794-4, IEC 60793 and TIA/EIA 598 A standards.If you have special requirements, please contact our sales and technical team. We also support OEM.

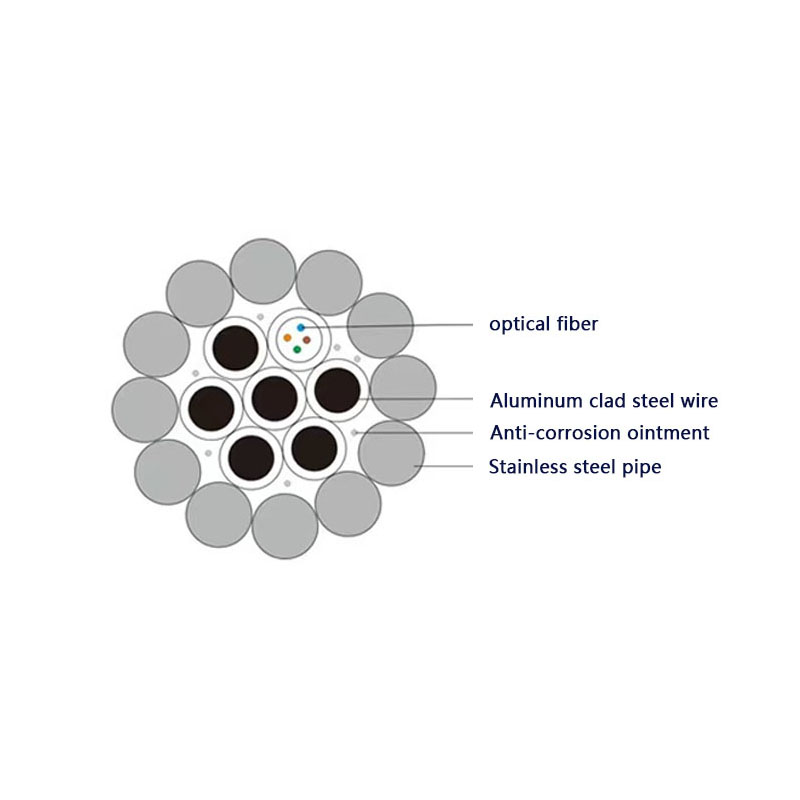

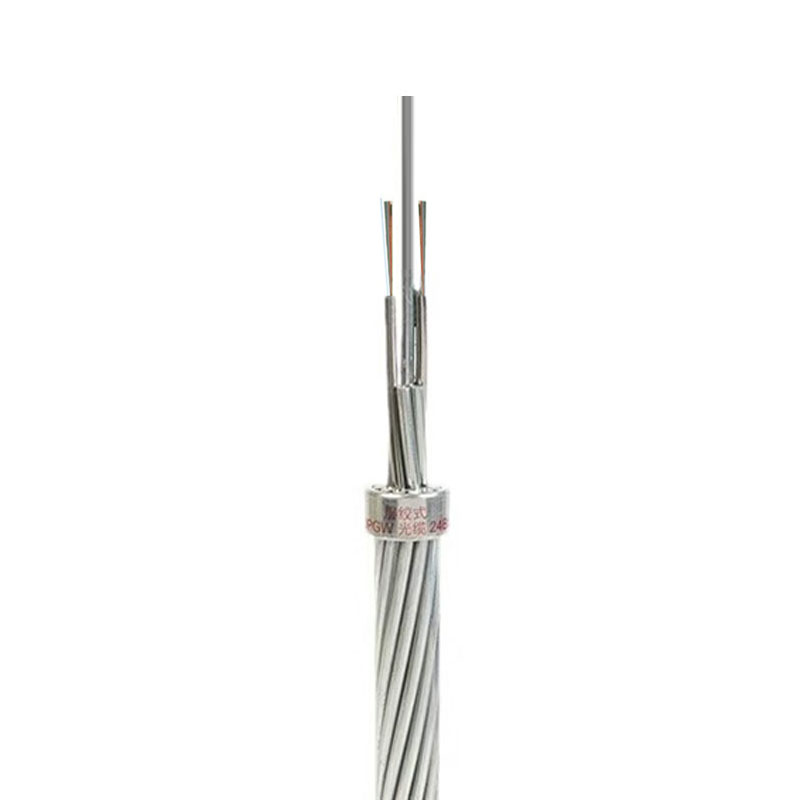

OPGW Stranded | Product Features
• Large cable diameter, capable of designing a large number of fiber cores
• Stable structure and high reliability
• High tensile strength and short-circuit current capacity, achieving optimal balance between mechanical and electrical performance
•The best twisting design can obtain the surplus length of secondary optical fibers
•The number of twisted wire layers can be designed to be two or three
•Monofilament can be a combination of aluminum clad steel wire, aluminum alloy wire, or aluminum wire
OPGW Stranded | Fiber Characteristics
Fiber type
|
Fiber Attenuation
|
Bandwidth
|
Polarization Mode Dispersion
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
Single fiber
|
Link value (M=20, Q=0.01%)
|
G652D
|
—
|
—
|
≤0.35dB/km
|
≤0.21dB/km
|
—
|
—
|
≤0.20ps/ km
|
≤0.1ps/ km
|
G655
|
—
|
—
|
—
|
≤0.22dB/km
|
—
|
—
|
≤0.20ps/ km
|
≤0.1ps/ km
|
50/125μm
|
≤3.0dB/km
|
≤1.0dB/km
|
—
|
—
|
≥600MHz.km
|
≥1200MHz.km
|
—
|
—
|
62.5/125μm
|
≤3.5dB/km
|
≤1.0dB/km
|
—
|
—
|
≥200MHz.km
|
≥600MHz.km
|
—
|
—
|
OPGW Stranded | Packaging and delivery
Our decade-tested logistics network delivers precision-loaded 20ft/40ft containers with real-time tracking, tailored for cross-border projects. By optimizing cargo density and dynamic route planning, we cut transit times by 20% and carbon footprint, aligning with ISO 14001 standards for eco-conscious, budget-friendly global distribution.
