Ⅰ. The key difference between ADSS cable and ASU cable
Comparison parameters |
ADSS optical cable (single sheath) |
ADSS ASU optical cable (mini type) |
Type |
single sheath all-dielectric self-supporting optical cable |
Mini all-dielectric self-supporting optical cable |
Structural design |
Multiple loose casing structure |
Single loose casing structure |
Fiber capacity |
Up to 144 fibers |
Maximum 24 fibers |
Applicable span level |
50 to 200 spans |
80/100/120 spans |
Weight |
About 60-80 kg/km |
About 45-55 kg/km |
Tensile strength |
Long-term: ≥1500NShort-term: ≥3000N |
Long-term: ≥1000NShort-term: ≥2500N |
Diameter and flexibility |
Thicker, suitable for long-span overhead |
Thinner, more flexible, suitable for short-distance laying |
Typical application scenarios |
High-voltage transmission lines (long-span trunks)Urban backbone networksHigh-voltage transmission lines (short-span branches) |
Short-distance connections between substationsDistribution network communication links |
Environmental adaptability |
High tension, long span harsh environment |
Medium and low tension, short span ordinary environment |
Ⅱ. 4 Key Factors to Consider When Choosing ADSS or ASU Cables
1. Fiber quantity required
Choose ADSS cable: when the project requires more than 12 cores of fiber (such as 144-core Span above 200)
Choose ASU cable: if the fiber requirement is ≤24 cores (For example, 6-core ASU80 span cable)
2. Installation span requirements
ADSS cables support spans of more than 200 meters (such as between high-voltage transmission towers)
ASU cables are suitable for spans ≤ 120 meters (such as deployment on urban street light poles)
3. Environmental adaptability
ADSS cable uses double-layer sheath (HDPE+LSZH), UV resistance level UV4
ASU cable optimizes bending performance (dynamic bending radius is only 25D), suitable for areas with multiple bends
4. Cost-benefit analysis
Project |
ADSS cable |
ASU cable |
Material cost ($/km) |
$1,200 |
$850 |
Installation labor cost |
+15% |
-20% |
Maintenance cycle |
10 years |
8 years |
 |

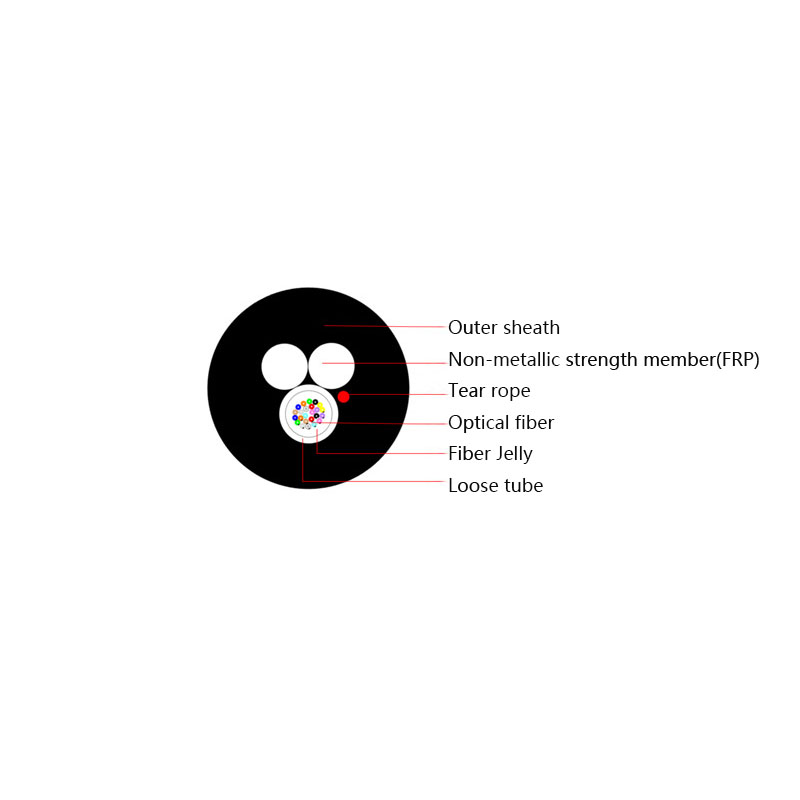

III. innovative solution: Mini ADSS ASU optical cable
Lightweight design: weight is only 45kg/km (40% lighter than traditional ADSS)
Compact structure: outer diameter 7.0mm, supports wiring in small spaces
Enhanced protection:
Waterproof gel + water-blocking tape double waterproof (IP68 grade)
GFRP reinforcement tensile strength reaches 4000N (short term)
Technical parameter comparison
Indicators Traditional ADSS Baudcom ASU
Outer diameter 9.5mm 7.0mm
Dynamic bending radius 30D 25D
Operating temperature range -20℃~+60℃ -40℃~+70℃
Salt spray test durability 1000 hours 3000 hours
Ⅳ. How to obtain customized selection support?
provides free technical consultation:
Call +86 18024026103
Send your request to yangbeet792@gmail.com
Visit the product page to view detailed specifications
Limited time benefits:
From now until 2024-12-31, submit your project proposal to receive the "ADSS Optical Cable Selection White Paper" (including 20+ engineering calculation formulas)
