Mini ADSS Cable ASU80M ASU100M ASU120M G.652D

Mini ADSS Cable ASU80M ASU100M ASU120M G.652D

Short Description:

ASU optical cable adopts a central loose tube structure with built-in waterproof gel to ensure the dual protection of optical fiber against pressure and moisture. The central reinforcement (FRP) covered in the tube enhances the support of the optical cable, and the UV-proof PE sheath has a lightweight design that is both tensile and weather-resistant.


  • Model: ASU optical cable 2/4/6/8/12FO
  • Length: 1000/2000/3000m or customized
  • Application: Duct, overhead FTTX and access installations
  • Delivery time: 3-15 days

Product Detail

Product Tags

ASU OPTIC CABLE | Product Standards

ASU cable does not require additional suspension wires and can be directly laid overhead. It is suitable for long-distance communication scenarios such as metropolitan area networks and mountainous areas to ensure stable signal transmission.

ASU OPTIC CABLE | Product Features

* FRP Filled element make cable hight tension.

* Tube filling jelly * Loose tube stranded.

* PE sheath outdoor cable.

* Anti water yarn protect cable from water.

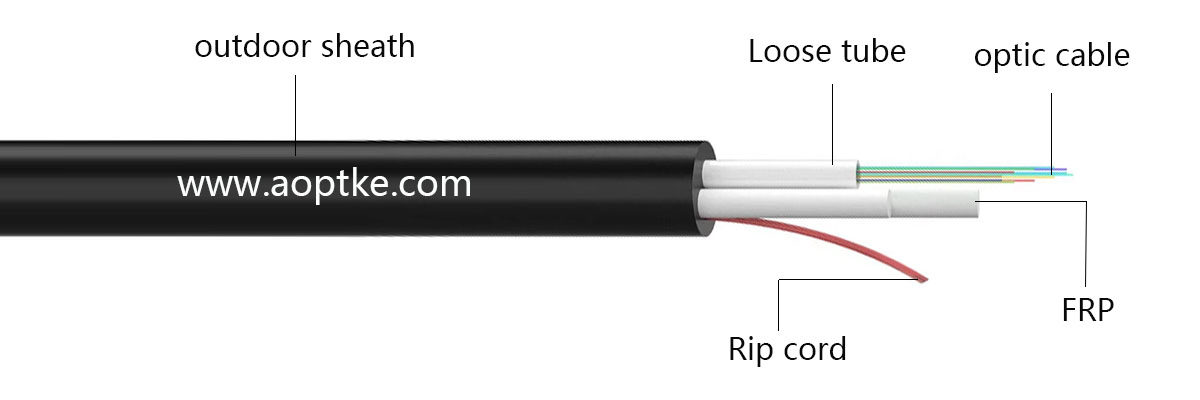

ASU OPTIC CABLE | Structure Parameters

ITEM
Technical Parameters
TYPE
ASU Cable
No. of cable
1-12
Fiber Model
G.652D
Strength Member
Material
FRP
Diameter（±0.1）mm
1.6

Loose Tube
Material
PBT
Diameter（±0.06）mm
2.0
Thickness（±0.03）mm
0.3
The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter（±0.2）mm
6.8
Cable Weight（±5）kg/km
43
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ

Temperature range
（℃）
Installation
-20~+55
Transport&Storage
-40~+65
Operation
-40~+65

Note: This datasheet is for reference only, please contact our sales for more detailed information.
