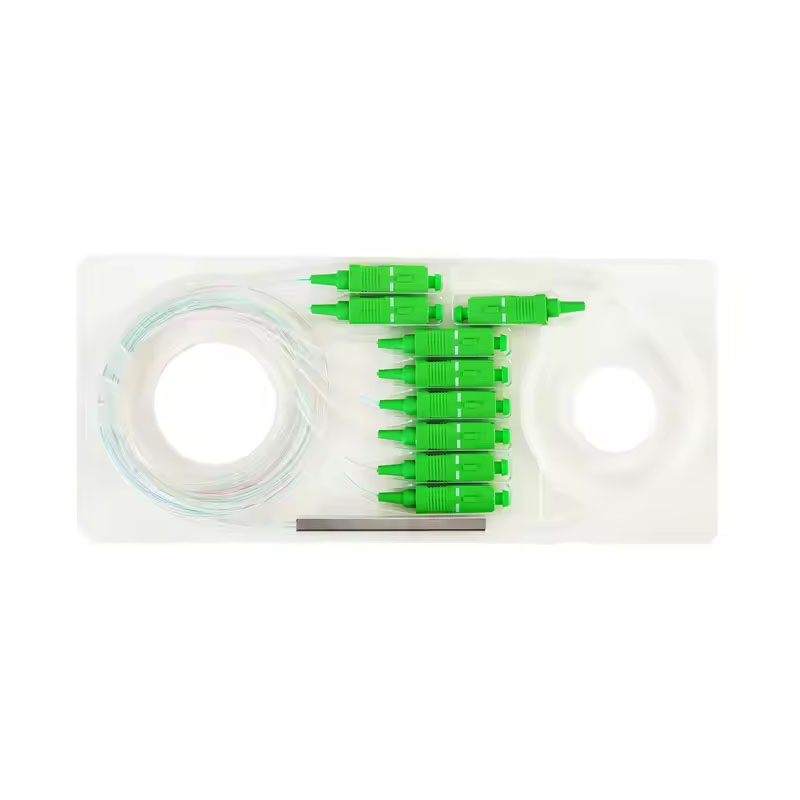

Micro type PLC Splitter SC APC
Micro type PLC Splitter（SC APC）| Product Standards

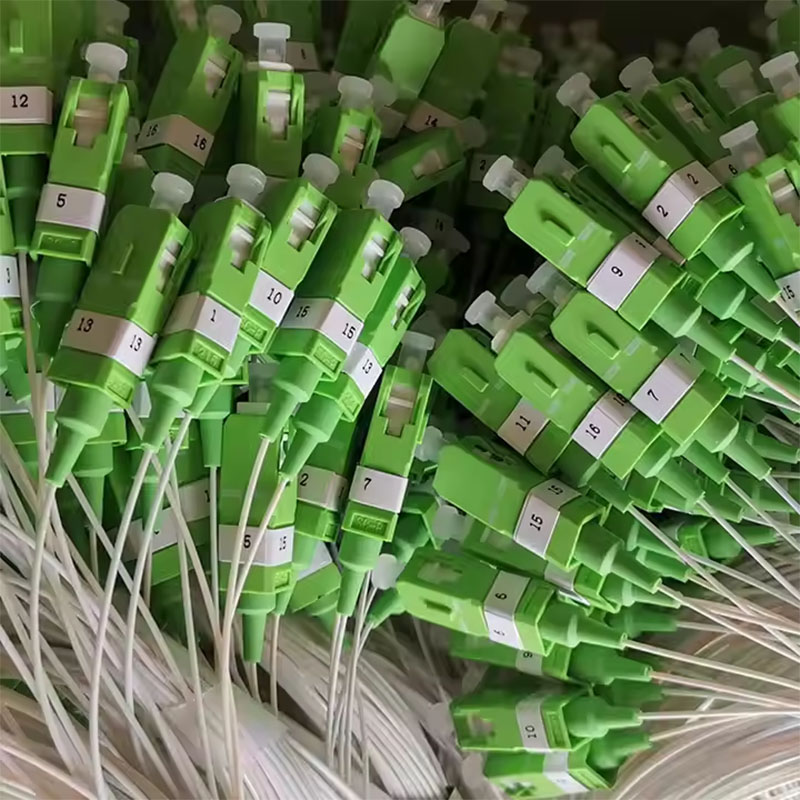

AOPTKE CABLE's SC/APC connectors have an insertion loss of ≤3.5dB, and these splitters ensure minimal reflection and high reliability in high-density deployments. They are ideal for space-constrained installations, comply with Telcordia GR-1209 standards, and support customizable ratios to meet different network requirements.
|
|
Micro type PLC Splitter（SC APC）| Product Features
·Uniform light distribution The signal can be evenly distributed to users.
·New upgrade chip,Quality Assurance Stable performance.
·This product is made of new ceramic insert with excellent.
.performance, stability and durability.
·Low insertion loss,High back reflection Low polarization dependent loss.
Micro type PLC Splitter（SC APC）| tructure Parameters
|
Parameter
|
Unit
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
||
|
Fiber Type
|
G.657A, or customized
|
||||||||
|
Operating Wavelength
|
nm
|
1260~1650
|
|||||||
|
Insertion Loss
|
p
|
Max
|
dB
|
4.0
|
7.0
|
10.4
|
13.5
|
16.8
|
20.5
|
|
s
|
Max
|
dB
|
4.2
|
7.3
|
10.6
|
13.8
|
17.1
|
20.8
|
|
|
PDL
|
Max
|
dB
|
0.2
|
0.3
|
0.3
|
0.3
|
0.3
|
0.5
|
|
|
Loss Uniformity
|
Max
|
dB
|
0.6
|
0.8
|
1.0
|
1.4
|
1.6
|
2.0
|
|
|
Return Loss
|
Min
|
dB
|
55(P Grade)/50(S Grade)
|
||||||
|
Directivity
|
Min
|
dB
|
55
|
||||||
|
Operating Temperature
|
℃
|
-40 ~ +85
|
|||||||
|
Storage Temperature
|
℃
|
-40 ~ +85
|
|||||||
|
Dimension(L×W×H)
|
mm
|
130×100×25
|
130×100×50
|
130x100x102
|
130x100x206
|
||||
Remark:
|
|||||||||
