GJFJH FIBER|Product Standards
AOPTKE's GJFGV optical fiber can meet any of the standards of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11. If you have special requirements, please contact our sales and technical team. We also support OEM.
GJFJH FIBER|Product Features
-
-
1.Tight-buffered optical fiber is used for easy stripping and use.
-
2.Tight-buffered optical fiber has good flame retardant properties.
-
3.Aramid reinforcement components give the optical cable excellent tensile properties.
-
4.The outer sheath material has the advantages of corrosion resistance, waterproof, UV resistance, flame retardant, and environmental protection.
-

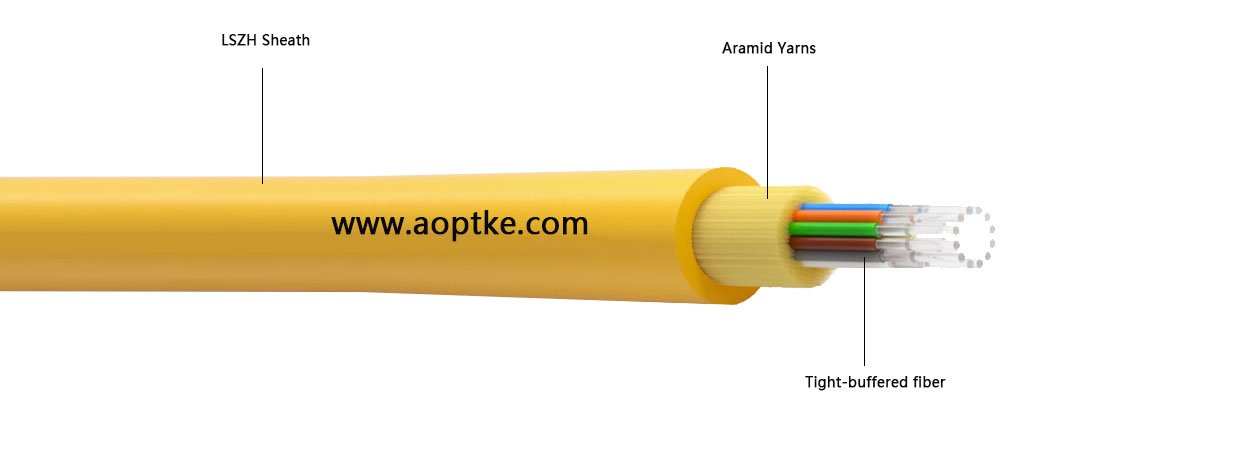

GJFJH FIBER|Structure Parameters
-
Optical cable model
|
Optical cable reference diameter
(mm)
|
Optical cable reference weight
(kg/km)
|
Allowable tensile force
Long term/short term
(N)
|
Allowable crushing force
Long-term/short-term
(N/100mm)
|
Bending radius
Dynamic/static
(mm)
|
PVC sheath
|
LSZH sheath
|
MPC-X-XX-04Xn
|
4.8±0.3
|
16
|
18
|
130/440
|
300/1000
|
20D/10D
|
MPC-X-XX-06Xn
|
5.1±0.3
|
20
|
23
|
130/440
|
300/1000
|
20D/10D
|
MPC-X-XX-08Xn
|
5.6±0.3
|
27
|
31
|
130/440
|
300/1000
|
20D/10D
|
MPC-X-XX-12Xn
|
6.2±0.3
|
32
|
36
|
130/440
|
300/1000
|
20D/10D
|
MPC-X-XX-24Xn
|
8.1±0.3
|
53
|
57
|
200/660
|
300/1000
|
20D/10D
|
GJFJH FIBER|Optical characteristics
|
Fiber type
|
Decay1310/1550nm
|
Full injection bandwidth
|
Effective mode bandwidth
|
10G Ethernet link length
|
Minimum bending radius
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
/
|
Typical value
|
Maximum value
|
Typical value
|
Maximum value
|
unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
G652D
|
0.36/0.22
|
0.5/0.4
|
---
|
---
|
---
|
---
|
---
|
16
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
---
|
---
|
---
|
---
|
---
|
10
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
---
|
---
|
---
|
---
|
---
|
7.5
|
50/125
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
---
|
---
|
30
|
62.5/125
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
---
|
---
|
30
|
OM3
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
OM4
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
BI-OM3
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
7.5
|
BI-OM4
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
7.5
|
-
Note: Different sizes and specifications can be customized according to customer requirements.
-
GJFJH FIBER|Cable geometry parameters
project
|
Describe
|
2
|
4
|
6
|
8
|
12
|
24
|
Tight-buffered optical fiber
|
Material
|
LSZH
|
Outer diameter
|
0.85±0.05
|
Reinforcement
|
Material
|
Fragrant satin
|
jacket
|
Material
|
LSZH
|
color
|
G.652D/G.657A1/G.657A2 yellow
OM1/OM2 orange
0M3/0M47 water color
|
Optical cable diameter (mm)
|
4.0
|
4.8
|
5.1
|
5.6
|
6.2
|
8.1
|
Optical cable reference weight (kg/km)
|
12
|
18
|
24
|
31
|
37
|
65
|
GJFJH FIBER|Packaging and delivery
