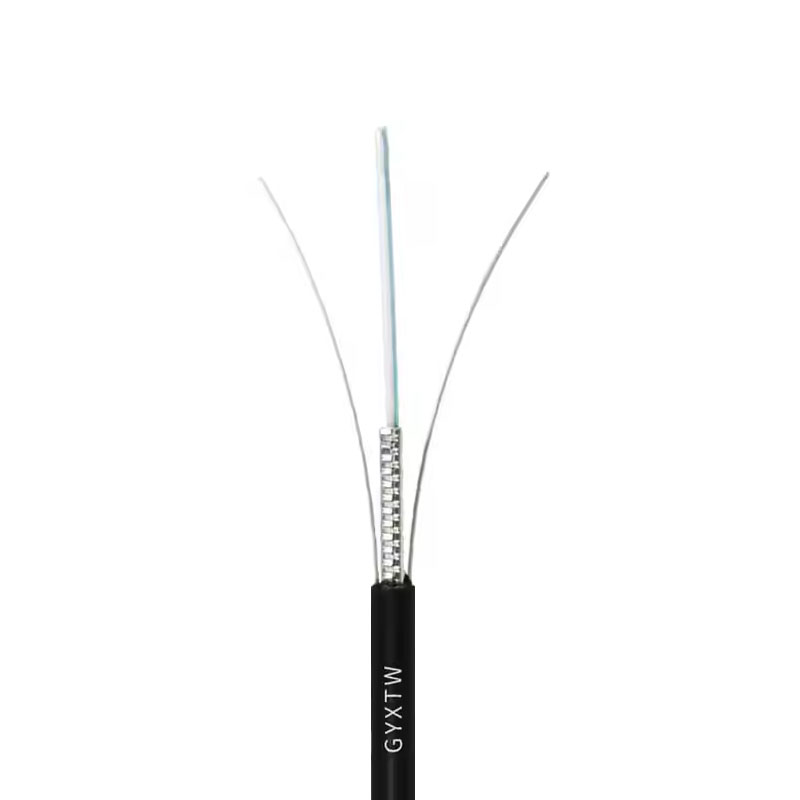

GYXTW Cable | Product Standards
AOPTKE's GYTS optical cables comply with YD/T 769 standard. If you have special requirements, please contact our sales and technical team. We also support OEM.

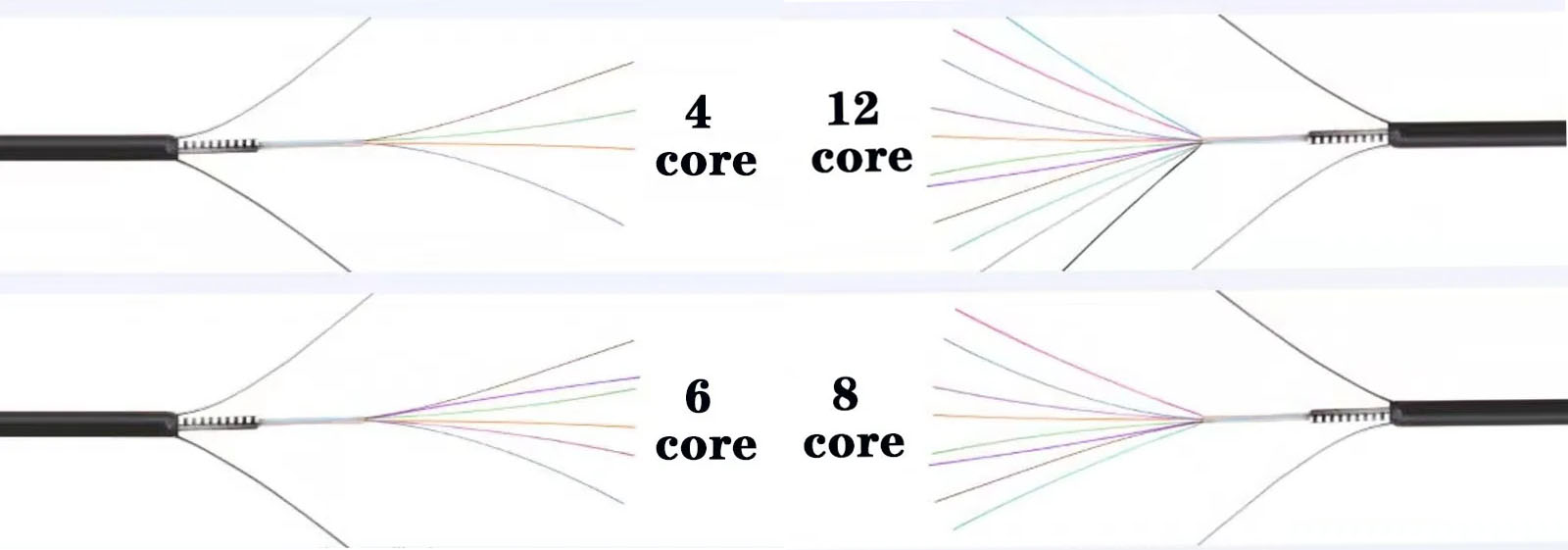

Provide 4/6/8/12 cores
GYXTW Cable | Product Features
1.Good pressure resistance and softness.
2. The tube is filled with special grease to provide critical protection for the optical fiber.
3.Double-sided plastic-coated steel tape (PSP) improves the moisture resistance of the optical cable.
4. Excellent mechanical properties and temperature characteristics.
5. The loose tube material itself has good hydrolysis resistance and high strength.
6. Two parallel steel wires ensure the tensile strength of the optical cable.
7. Small diameter, light weight, easy to lay.
GYXTW Cable | Structural parameters
Optical cable model
(incremental by 2 fibers)
|
Number of optical fibers
|
Reference weight of optical cable
(kg/km)
|
Allowable tensile force
Long term/short term
(N)
|
Allowable crushing force
Long term/short term
(N/100mm
|
Bending radius
Static/dynamic
(mm)
|
GYXS/GYXTW-2~12Xn
|
2~12
|
85
|
600/1000
|
500/1500
|
15D/30D
|
GYXS/GYXTW-14~24Xn
|
14~24
|
600/3000
|
1000/3000
|
GYXS/GYXTW-2~12Xn
|
2~12
|
105
|
GYXS/GYXTW-14~24Xn
|
14~24
|
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
GYXTW Cable | Optical properties
Fiber Type
|
Attenuation
(+20℃)
|
Bandwidth
|
Numerical aperture
|
Optical cable cutoff wavelength
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
G.652
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
≤1260nm
|
G.655
|
---
|
---
|
≤0.40dB/km
|
≤0.23dB/km
|
---
|
---
|
---
|
≤1450nm
|
50/125µm
|
≤3.3dB/km
|
≤1.2dB/km
|
---
|
---
|
≥500MHz·km
|
≥500MHz·km
|
0.200±0.015 NA
|
---
|
62.5/125µm
|
≤3.5dB/km
|
≤1.2dB/km
|
---
|
---
|
≥200MHz·km
|
≥500MHz·km
|
0.275±0.015 NA
|
---
|
Applicable: pipeline, overhead
GYXTW Cable | Packaging and delivery

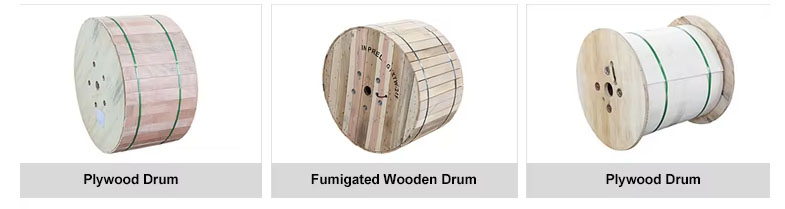

GYXTW optical cables are packaged using reinforced iron reels or eco-friendly wooden spools, ensuring damage-resistant transit while showcasing your brand via customizable logo printing. Each reel is optimized for shock absorption and moisture resistance, maintaining product integrity from factory to destination.
With a decade of global logistics expertise, we streamline cost-effective container solutions (20ft/40ft) for bulk shipments. Our team calculates precise loading plans to minimize expenses and guarantee on-time delivery, backed by ISO-certified handling for international project deployments.
