GYTC8S/A Figure-8 Steel/Aluminum Tape Cable Lightweight

Short Description:

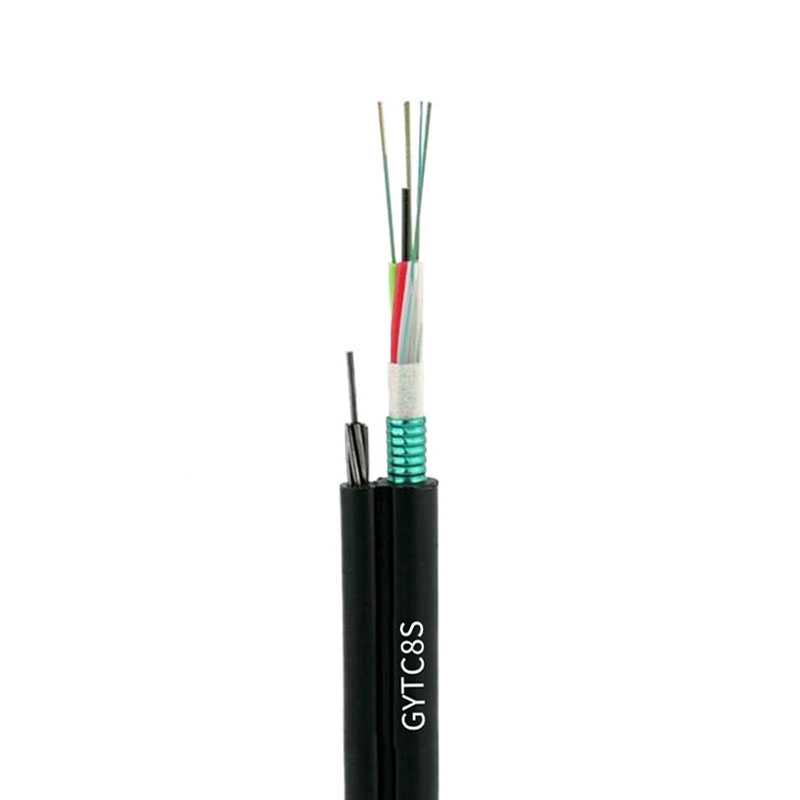

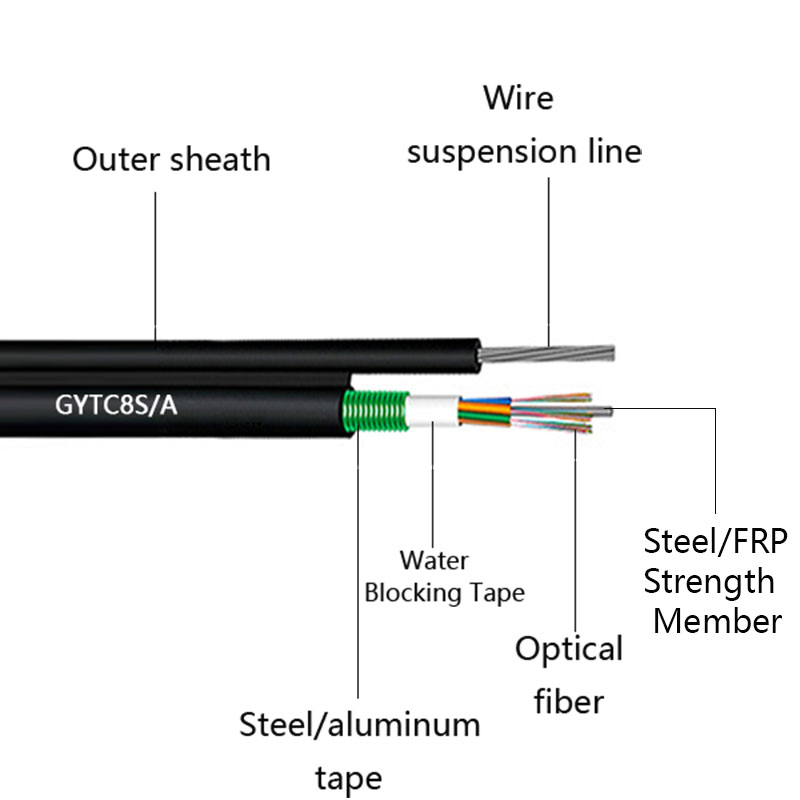

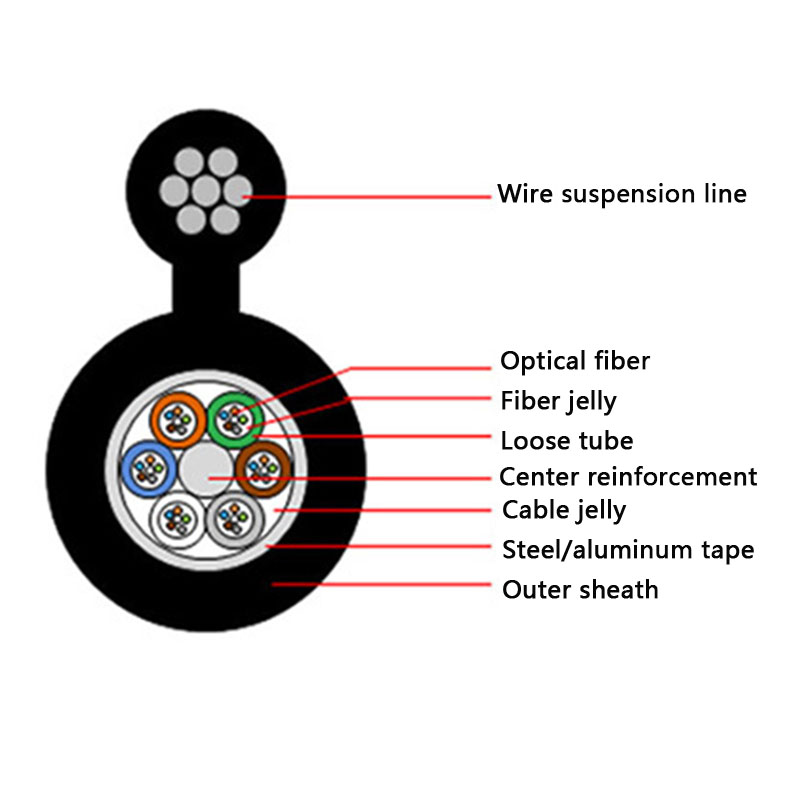

The structure of GYTC8S/A optical cable is to put 250µm optical fiber into a loose tube made of high modulus material, which is filled with waterproof compound. The center of the cable core is a metal reinforcement core, and the loose tube (and filling rope) are twisted around the central reinforcement core to form a compact and round cable core. The cable core is longitudinally wrapped with a layer of plastic-coated aluminum tape (APL) and integrated with the steel wire strands into an 8-shaped polyethylene sheath.


  • Model: GYTC8S/A /2/4/6/8/10/12 FO
  • Length: 1000/2000/3000M or customized
  • Application: Self-supporting antenna
  • Delivery time: 3-15 days

Product Detail

Product Tags

GYTC8S/A CABLE | Product Standards


AOPTKE CABLE can also provide 8-shaped optical cables GYTC8Y, GYTC8S, etc. with Y sheath or S sheath. These products are mostly used in self-supporting overhead installations.


GYTC8S/A CABLE | Product Features


• The stranded steel wire has extremely high tensile strength, which facilitates self-supporting aerial laying and reduces installation costs

• The optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to provide critical protection for the optical fiber

• The following measures are taken to ensure the waterproof performance of the optical cable:
- Single steel wire center reinforcement core
- Loose tube filled with special waterproof compounds
- Complete cable core filling
- Plastic-coated aluminum/steel moisture barrier


GYTC8S/A CABLE | Structure Parameters


Optical cable model

Number of optical fibers

Cable diameter

Mm

Optical cable weight

Kg/km

Suspension wire specifications

Connection diameter

mm

Allowable tensile force long-term/short-term

N

Allowable crushing force long-term/short-term

N/100mm

Bending radius static/dynamic

mm

GYTC8S/A-2-36Xn

2-60

9.5*18.3

218

ф1.0mmx7 steel strand

Height*Width3.0x2.5

4000/7500

500/1000

15D/30D

GYTC8S/A-62-72Xn

62-72

10.5*19.3

240

GYTC8S/A-74-96Xn

74~96

12.5*20.3

280

GYTC8S/A-98-120Xn

98-120

13.5*21.3

320

GYTC8S/A-122-144Xn

122~144

15.0*24.3

350

*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)


GYTC8S/A CABLEOptical properties


Fiber Type

Attenuation

(+20℃)

Bandwidth

Numerical aperture

Optical cable cutoff wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652

---

---

≤0.36dB/km

≤0.22dB/km

---

---

---

≤1260nm

G.655

---

---

≤0.40dB/km

≤0.23dB/km

---

---

---

≤1450nm

50/125µm

≤3.3dB/km

≤1.2dB/km

---

---

≥500MHz·km

≥500MHz·km

0.200±0.015 NA

---

62.5/125µm

≤3.5dB/km

≤1.2dB/km

---

---

≥200MHz·km

≥500MHz·km

0.275±0.015 NA

---

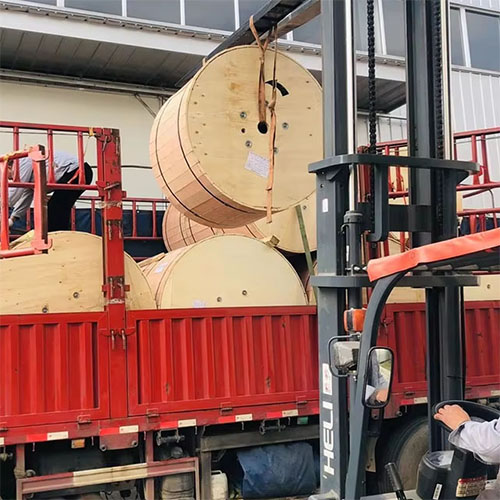

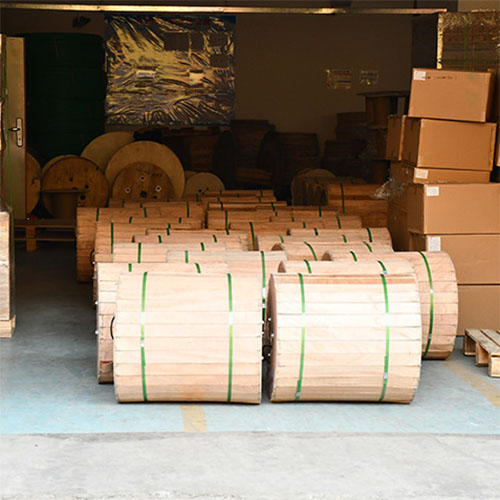

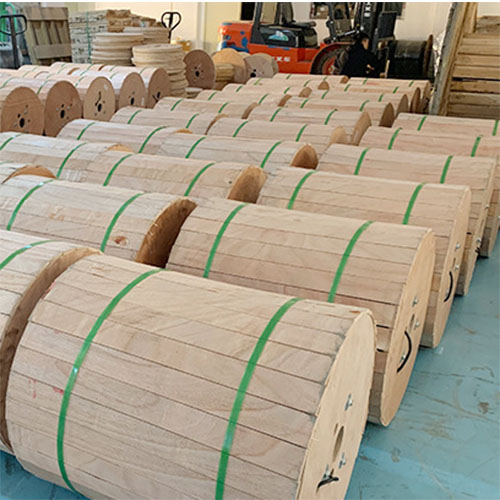

GYTC8S/A CABLE | Packaging and delivery


Parameter Type

1000米

2000米

3000米

4000米

5000米

Other Specifications

Net weight (kg)

160-185

320-370

480-555

640-740

800-925

Fiber core number:2-72芯

Gross weight (kg)

190-215

380-430

570-645

760-860

950-1085

Outer diameter range:10-45mm

Shaft dimensions (cm)

75×65

95×70

115×75

125×75

135×80

tensile strength:≥6000N

Note: The format of the belt shaft size is diameter × width (cm),(The above parameters are for reference only).
