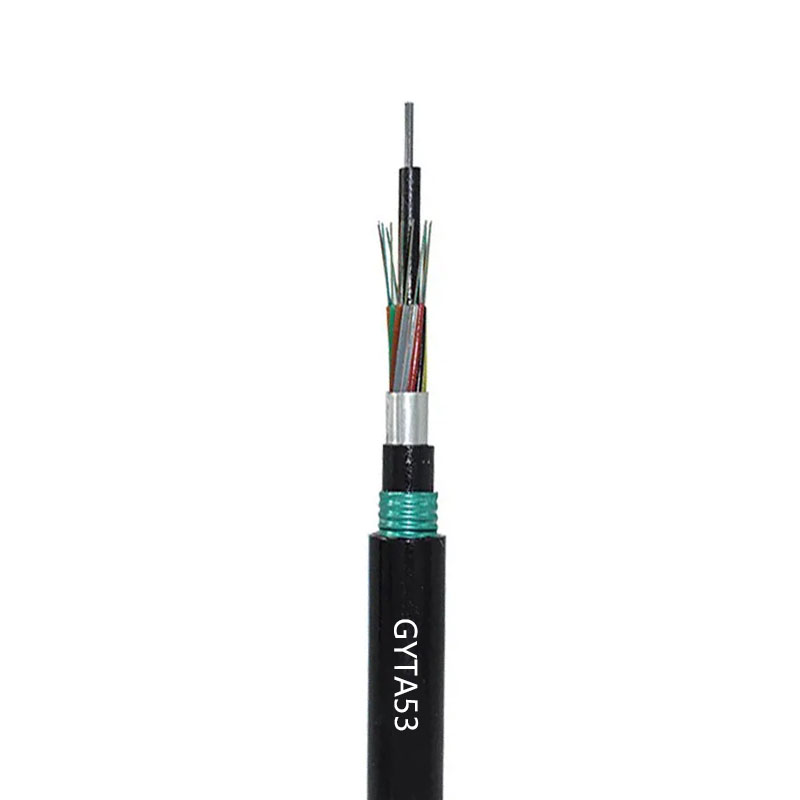

GYTA53 CABLE | Product Standards
AOPTKE's GYTA53 optical cable complies with YD/T 901 and IEC 60794-1 standards.If you have special requirements, please contact our sales and technical team. We also support OEM.

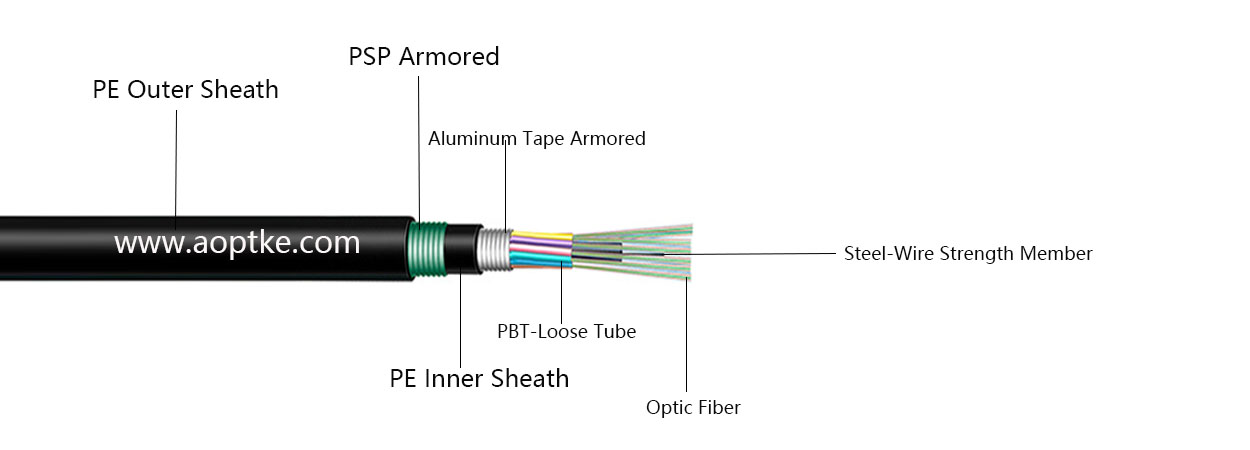

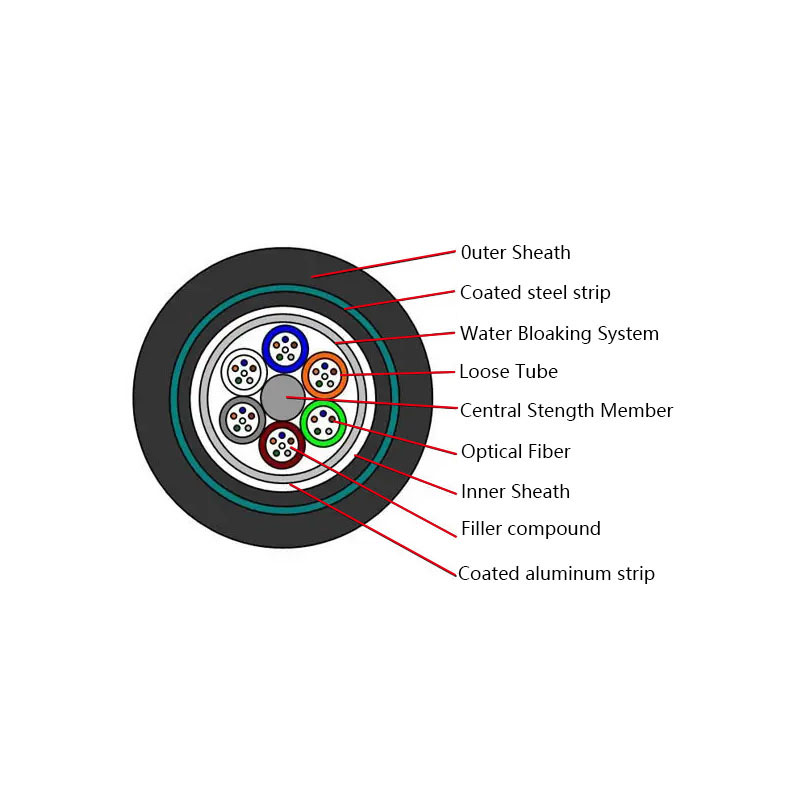

GYTA53 CABLE | Product Features
1.Single metal center reinforcement core.
2.Aluminum plastic coated tape (APL) moisture barrier.
3.Double-sided plastic coated steel tape (PSP) improves the cable's ability to resist moisture penetration.
4.Good water-blocking material prevents longitudinal water seepage in the cable.
GYTA53 CABLE | Technical Reference
-
Cable Type
|
Fiber Count
|
Cable Diameter MM
|
Cable Weight KG/KM
|
Tensile Strength
Long/Short Term N
|
Crush Resistance
Long/Short Term N/100MM
|
Bending Radius Static/Dynamic MM
|
GYTA53 2~12
|
2~12
|
12.5
|
160
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 14~36
|
14~36
|
12.8
|
165
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 38~72
|
38~72
|
13.4
|
185
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 74~96
|
74~96
|
14.9
|
220
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 122~144
|
122~144
|
17.4
|
290
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 146~216
|
146~216
|
17.7
|
300
|
1000
|
3000
|
1000
|
3000
|
10D/20D
|
GYTA53 CABLE | Optical characteristics
Fiber Type
|
Attenuation
(+20℃)
|
bandwidth
|
Numerical aperture
|
Cable cut-off wavelength
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
G.652
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
≤1260nm
|
G.652
|
---
|
---
|
≤0.40dB/km
|
≤0.23dB/km
|
---
|
---
|
---
|
≤1450nm
|
50/125μm
|
≤3.0dB/km
|
≤1.0dB/km
|
---
|
---
|
≥500MHz·km
|
≥500MHz·km
|
0.200±0.015 NA
|
---
|
62.5/125μm
|
≤3.3dB/km
|
≤1.0dB/km
|
---
|
---
|
≥200MHz·km
|
0.200±0.015 NA
|
0.275±0.015 NA
|
---
|
Storage and usage temperature: -40 ℃ to+70 ℃.

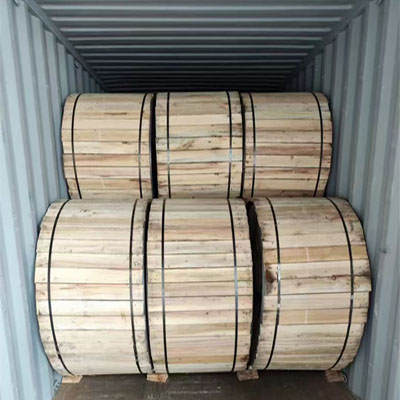

GYTA53 CABLE | Packaging and delivery
Cable Type
|
|
Length (M)
|
Fiber Count
|
Outer Diameter (mm)
|
GYTA53
|
|
1000M
|
2000M
|
3000M
|
4000M
|
5000M
|
Net Weight (kg)
|
200
|
400
|
600
|
800
|
1000
|
2-60 fibers
|
13.6mm
|
Gross Weight (kg)
|
230
|
440
|
650
|
860
|
1060
|
Reel Size (cm)
|
80*70
|
100*70
|
120*70
|
130*80
|
140*80
|
Net Weight (kg)
|
220
|
440
|
660
|
880
|
1100
|
62-72 fibers
|
13.6mm
|
Gross Weight (kg)
|
250
|
480
|
720
|
950
|
1150
|
Reel Size (cm)
|
80*70
|
100*70
|
120*70
|
130*80
|
140*80
|
Above reel size is: diameter * width (cm).
