GYFTY CABLE | Product Standards
AOPTKE CABLE directly supplies 2-144 core full-specification GYFTY non-metallic non-armored optical cables, which adopt FRP reinforced core + multi-layer waterproof structure design, have passed international certifications such as IEC 60794-4/TIA 598A, have both tensile strength and moisture-proof stability, support OEM customized production, and provide cost-effective and long-life pipeline wiring solutions for communication projects.
GYFTY CABLE | Product Features

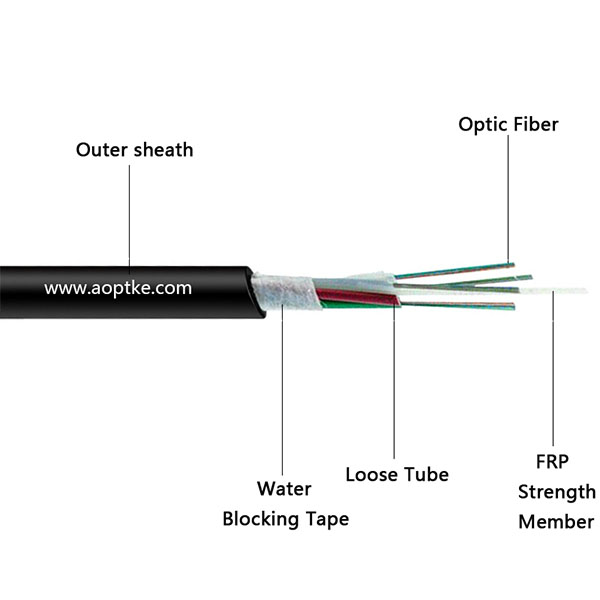

1. GYFTY optical cable uses a combination of non-metallic reinforced core and high-toughness PE sheath to effectively resist external extrusion and bending, ensuring that the optical fiber is safe and intact in complex pipelines.
2. Triple waterproof technology eliminates the risk of leakage: loose tubes are filled with waterproof grease to isolate moisture, cable core water-blocking materials block longitudinal penetration, and sheath interfaces are sealed, fearless of harsh environments such as humidity and heavy rain.
3. Special flexible sheath reduces the weight of the cable body, anti-ultraviolet formula prevents outdoor aging, and corrosion-resistant materials extend the service life, easily coping with frequent movement or small space wiring needs.
4. 2-144 core flexible configuration, IEC/TIA international certification, support OEM customization, specially designed for telecommunications networks, urban pipe corridors and other scenarios to provide stable signal transmission, with a warranty of up to 20 years.

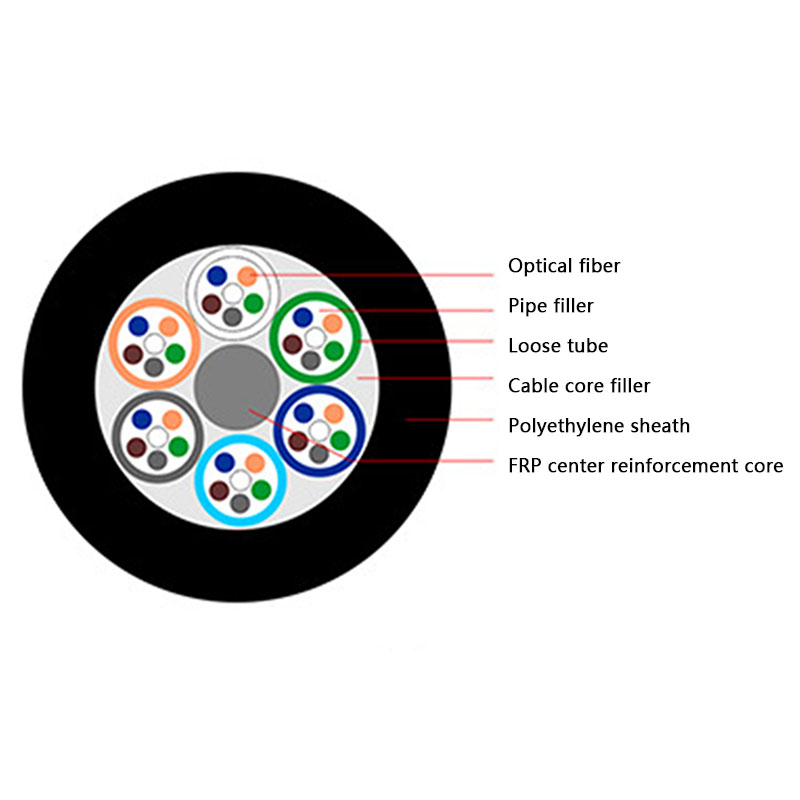

GYFTY CABLE | Structure Parameters
Optical cable model
|
Number of optical fibers
|
Number of casings
|
Number of filling ropes
|
Optical cable diameter mm
|
Cable weight
Kg/km
|
Allowable tensile force long-term/short-term
N
|
Allowable crushing force
Long-term/short-term
N/100mm
|
Bending radius
static/dynamic mm
|
GYFTY-2-6Xn
|
2-6
|
1
|
4
|
9
|
88
|
800/1500
|
500/1000
|
15D/30D
|
GYFTY-8-12Xn
|
8-12
|
2
|
3
|
9
|
88
|
GYFTY-14-18Xn
|
14-18
|
3
|
2
|
9
|
88
|
GYFTY-20-24Xn
|
20-24
|
4
|
1
|
9
|
88
|
GYFTY-26-30Xn
|
26-30
|
5
|
0
|
9
|
88
|
GYFTY-32-36Xn
|
32-36
|
5
|
0
|
9
|
88
|
GYFTY-38-48Xn
|
38-48
|
5
|
0
|
9
|
88
|
GYFTY-50-60Xn
|
50-60
|
5
|
0
|
9
|
88
|
GYFTY-62-72Xn
|
62-72
|
6
|
0
|
9.5
|
100
|
1000/2000
|
GYFTY-74-84Xn
|
74-84
|
7
|
1
|
10.5
|
120
|
GYFTY-86-96Xn
|
86-96
|
8
|
0
|
10.5
|
120
|
1500/2500
|
GYFTY-98-108Xn
|
98-108
|
9
|
1
|
11.5
|
150
|
GYFTY-110-120Xn
|
110-120
|
10
|
0
|
12
|
150
|
GYFTY-122-144Xn
|
122-144
|
12
|
0
|
13
|
150
|
GYFTY-146-216Xn
|
146-216
|
18
|
0
|
13
|
150
|
1000/2000
|

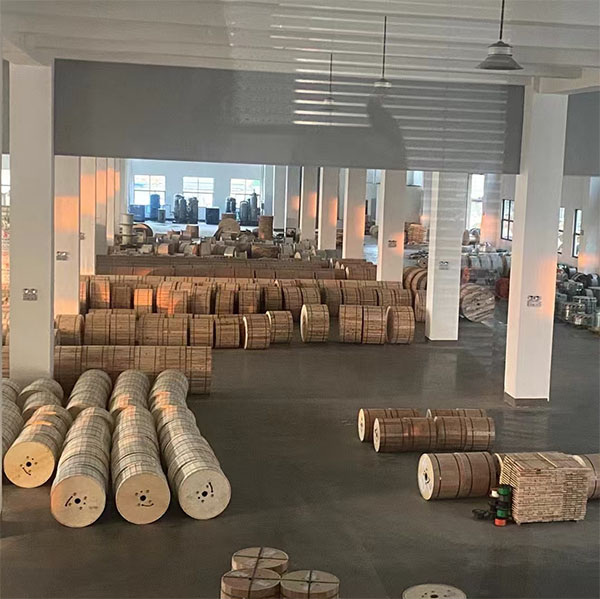

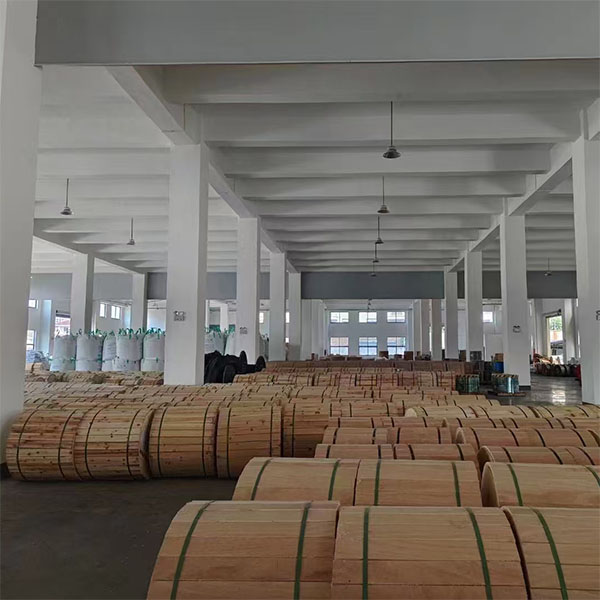

GYFTY CABLE | Packaging and delivery
Core number range
|
Length (m)
|
Outer diameter (mm)
|
Net weight (kg)
|
Gross weight (kg)
|
Reel size (cm)
|
2-24core
|
1000-3000
|
9.5
|
80-240
|
90-270
|
60×60
|
24-72core
|
2000-5000
|
12.0
|
160-400
|
180-450
|
100×70
|
72-144core
|
3000-6000
|
14.5
|
480-1280
|
540-1440
|
140×80
|
