GCYFY CABLE | Product Standards
In FTTH network, GCYFY cable is used as the feeder segment introduction cable, and air blowing is used to connect the cable branch point and the user access point. It is also suitable for application in backbone network, metropolitan area network and access network.
GCYFY CABLE | Product Features
·Small diameter, light weight, moderate hardness and softness, easy to operate.
·All non-metallic structure, low friction coefficient sheath material and long air blowing distance.
·Fully utilize the pipe hole resources and use air blowing to install the cables quickly.
·Optical cables can be blown in batches as the communication business volume increases, reducing initial investment.
·Micro cables can be blown out, making it easier to replace new types of optical fiber cables in the future.
·Suitable for construction in crowded metropolitan area network pipelines.
·No need to decide in advance where to place the junction box and the optical cable divergence, reducing the overall cost.
·Suitable for backbone networks, metropolitan area networks and access networks.

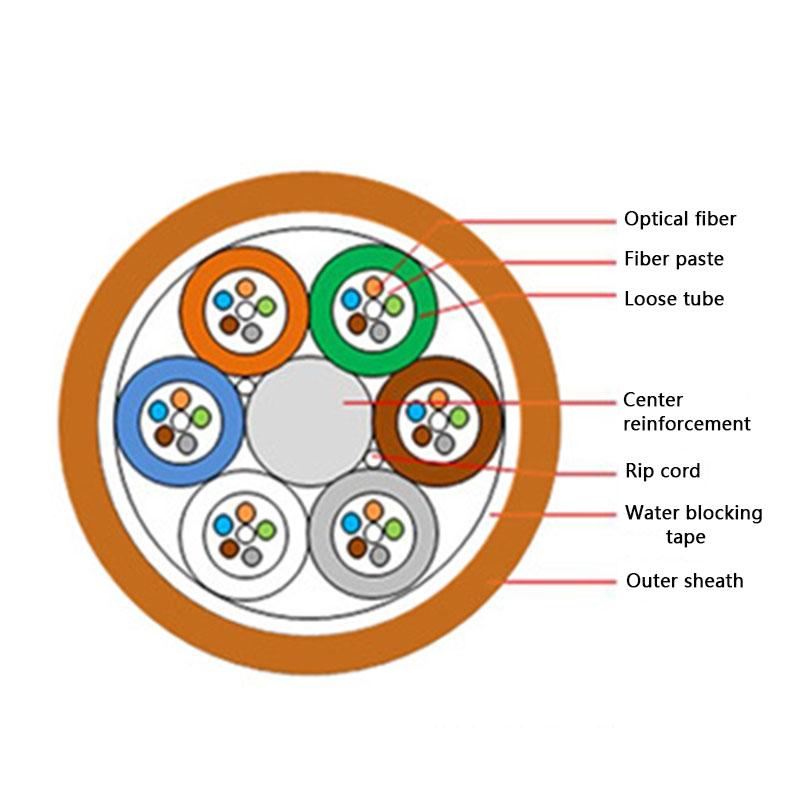

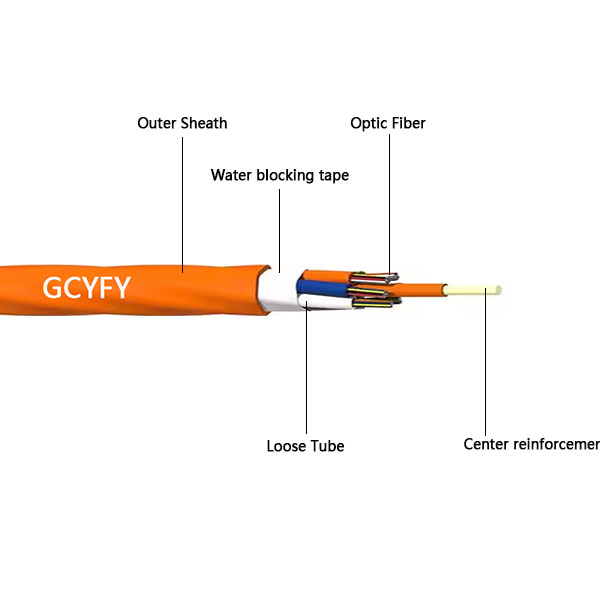

GCYFY CABLE | Structure Parameters
Product specifications
|
12/24/36
|
24/48/72
|
96
|
144
|
192
|
216
|
288
|
144
|
192
|
288
|
432
|
576
|
Number of cores per tube
|
6
|
12
|
12
|
12
|
12
|
12
|
12
|
24
|
24
|
24
|
24
|
24
|
Number of sleeves
|
4
|
6
|
8
|
12
|
16
|
18
|
24
|
6
|
8
|
12
|
18
|
24
|
Outer diameter of optical cable (mm)
|
4.5
|
5.4
|
6.1
|
7.9
|
7.9
|
7.9
|
9.3
|
7.9
|
8.8
|
11.4
|
11.4
|
13.4
|
Cable weight (Kg/km)
|
16
|
26
|
36/29
|
52
|
52
|
52
|
80
|
42
|
76
|
110
|
105
|
140
|
Maximum tension (N)
|
200
|
600
|
800
|
800
|
600
|
600
|
1000
|
800
|
1000
|
1200
|
800
|
1200
|
Allowed long-term/short-term tension (N)
|
0.3G/1.0G (G represents the weight of 1km optical cable)
|
Allowable long-term/short-term crushing force
(N/100mm)
|
150/500
|
Applicable micro-tube (mm)
|
6/8
|
8/12
|
8/12
|
10/14
|
10/14
|
10/14
|
12/14
|
10/14
|
12/16
|
14/16
|
14/16
|
16/20
|
Transportation/storage/use temperature
|
-40'℃~+70C
|
Installation temperature
|
-5℃℃~+50℃C
|
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

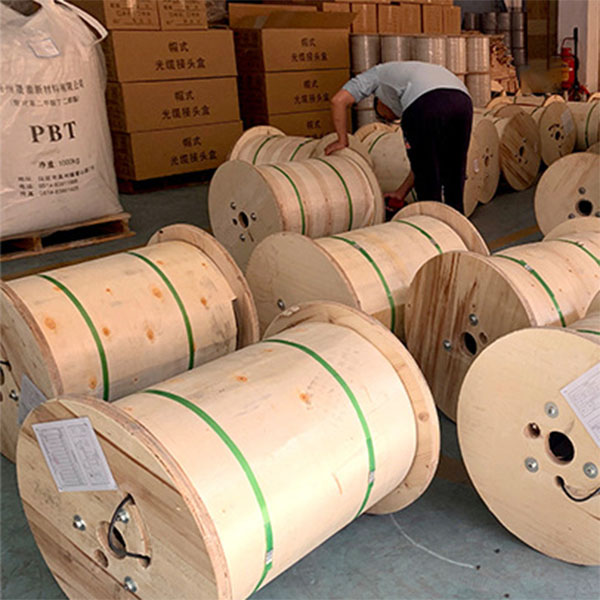

GCYFY CABLE | Packaging and delivery
