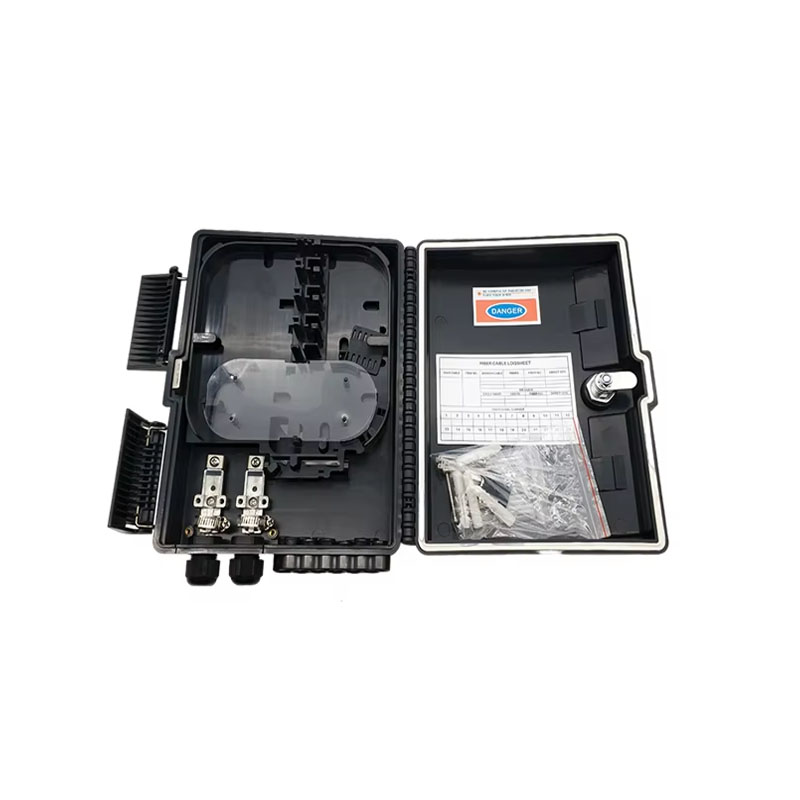

FTTH fiber optic distribution box Wall Mounted

FTTH fiber optic distribution box Wall Mounted

Short Description:

The optical fiber distribution box is also named the optical splitter box the end-user fiber distribution equipment in the FTTH optical network, which is mainly used for the fusion, splitting, wiringoutput and other functions of the optical transmission terminal.It can effectively terminate, protect and manage the optical cable.It is anecessary equipment in the optical transmission processnetwork.


  • Model: 8/16/24/48 core or customized
  • Unit: Ten minimum orders
  • Installation method: pole, wall-mounted;
  • Delivery time: 3-15 days

Product Detail

Product Tags

  • Fiber optic distribution box | Product Standards

    This product is made of engineering plastics, flame-retardant ABS, and polycarbonate materials, and is molded by high-temperature injection molding. The product has a smooth appearance, strong impact resistance, and a protection level of up to lP65. The box has a unique design, flexible opening and closing, and good protection performance. It also has waterproof, dustproof, and anti-theft functions.



    Fiber optic distribution box | Product Features

  • 1.There is a set of reliable optical cable and skin-line cable fixing devices inside;

  • 2.The fiber distribution box adopts a hinged flap structure, which can easily and quickly plug and unplug the optical splitter box.

  • 3.The box body is sealed with a structure, and is fixed with a mechanical lock, and the box body is simple and convenient to open and close.

  • 4.There are optical fiber fusion protection devices and optical fiber distributor fixing devices inside.

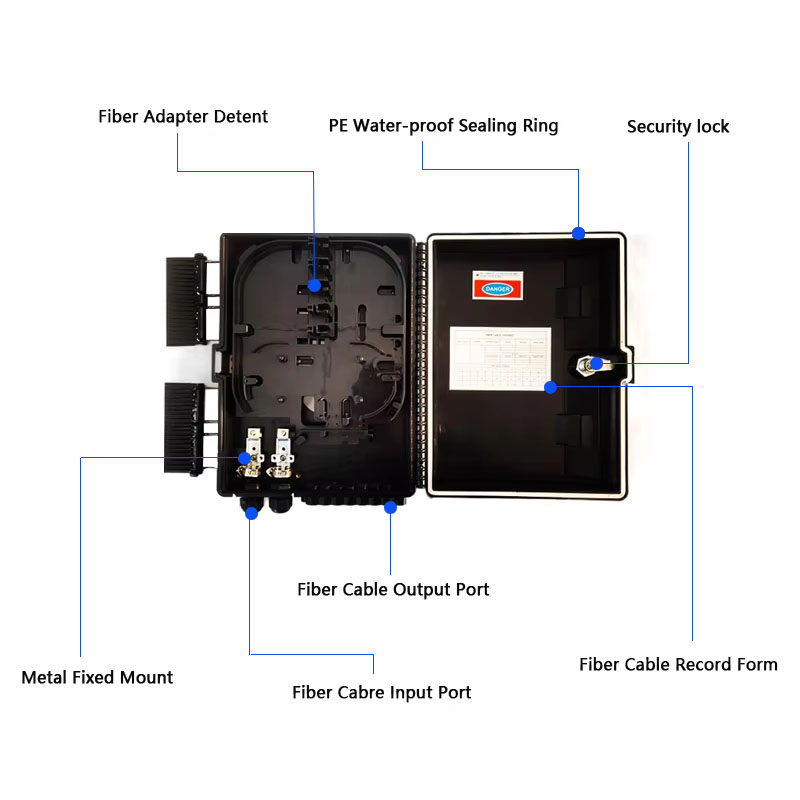

  • Fiber optic distribution box | Structure Parameters

    Model Number

    ABS

    Warranty Time

    5 YEARS

    Product name

    Fiber Optic Distribution Box

    Splitter Type

    PLC splitter

    Application

    FTTH System

    Working Temperature

    -40°C~+65°C

    Optional Accessories

    Adapters

    Adapter Type

    SC Simplex/LC

    Dimensions (H*W*D)

    303mm*236mm*109mm

    Conditions of Use

Type

Operating temperature

Relative humidity

Atmospheric pressure

Indoor

                                    -10℃~+40℃

                                  ≤85%(+30℃)

70kPa~106kPa

Outdoor

                                    -40℃~+60℃

                                  ≤95%(+40℃)

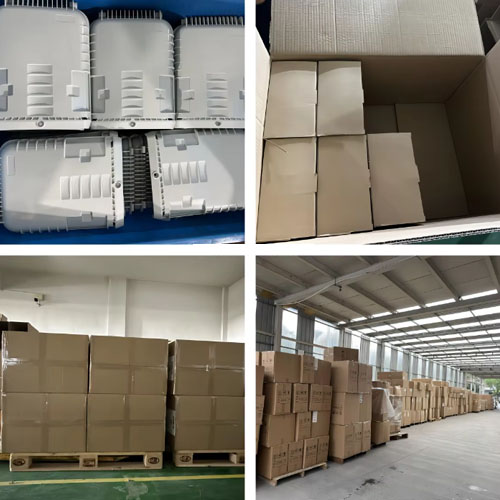

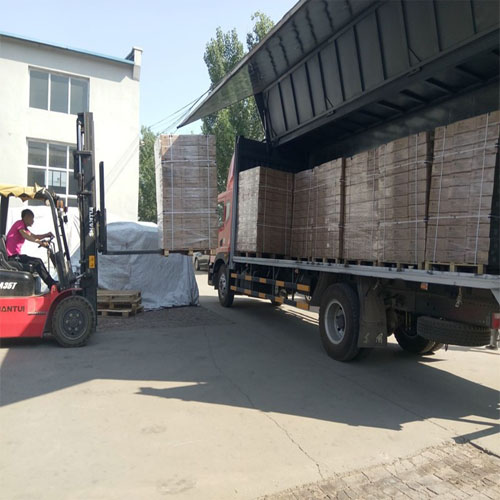

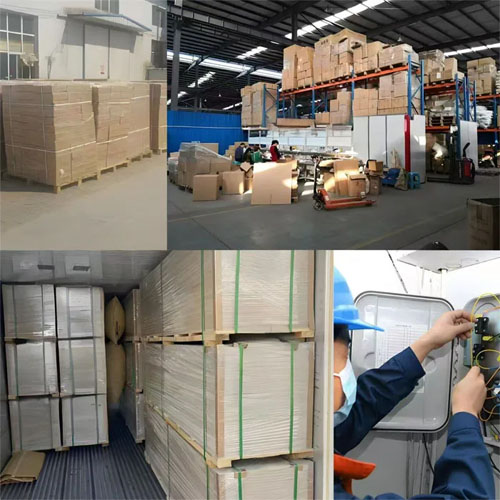

  • Fiber optic distribution box | Packaging and delivery

Selling Units

Single item

Single package size

300X350X100 cm

Single gross weight

3.000 kg
