FTTH Drop Cable GJYXFCH CABLE FRP1 2 4 6 8 12 core optical fiber cable

FTTH Drop Cable GJYXFCH CABLE FRP1 2 4 6 8 12 core optical fiber cable

Short Description:

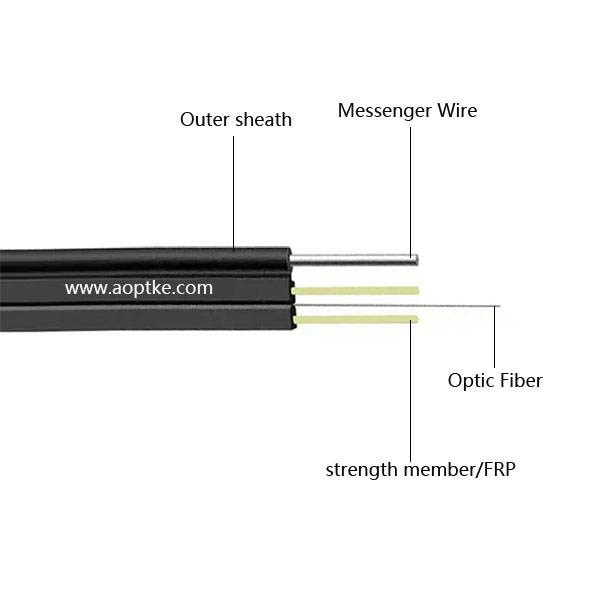

Drop Cable GJYXFCH Cable 1/2/4/68/12 Core Fiber Optic Drop Cable with Steel Wire or FRP Self-supporting FTTH drop cable consists of one or two single mode optical fibers (G657A1). The cable is protected by dielectric strength members made of fiberglass reinforced plastic (FRP), steel wire and LSZH jacket.


  • Model: GJYXFCH 1/2/4/6/8/12 Croe
  • Length: 500/1000/2000/3000M or customized
  • Application: FTTH
  • Delivery time: 3-15 days

Product Detail

Product Tags

GJYXFCH CABLE | Product Standards

AOPTKE CABLE's DROP CABLE all complies with ISO 9001/CE/ROHS standards, this cable is designed for outdoor installation, very suitable for the connection between dome enclosure and small residence/warehouse and independent villa.

 GJYXFCH CABLE | Product Features

1. Self-supporting structure, light weight, easy to install.

2. Durable flame retardant LSZH sheath, low smoke zero halogen.

3. Steel wire as an additional strength member with high tensile strength.

4. Two parallel FRP strength members ensure good anti-electromagnetic and anti-extrusion performance.

GJYXFCH CABLE | Structure Parameters

Fiber Count

1-4

6-12
Cable Diameter(mm)

5.2*2.0

3.0*9.0
Cable Weight (kg/km)

18

27
Tensile Strength (N/100mm)
Short Term

600

1200
Long Term

300

600
Crush Resistance (N/100mm)
Short Term

2200

1100
Long Term

1000

500

GJYXFCH CABLE | Specification

Fiber type

Single-mode

Single-mode

Single-mode

G652D

G657A1

G657A2

(1310/1550nm)

(1310/1550nm)

(1310/1550nm)

Attenuation

Typical

0.36/0.22

0.36/0.22

0.36/0.22

Maximum

0.5/0.4

0.36/0.22

0.5/0.4

Note: This data sheet is for reference only . Please contact our sales team for more detailed information.
