GJXH CABLE | Product Standards
GJXH CABLE includes 1, 2, 4,and 12-core FTTH drop cables, using KFRP/steel wire, G657A1/A2 optical fiber, supporting OEM, and all drop cables comply with IEC 60794-4, IEC 60793, and TIA/EIA 598 A standards.
GJXH CABLE | Product Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two steel wires strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
Simple structure,light weight and high practicability.
Novel flute design,easily strip and splice,simplify the installation and maintenance.
Low smoke,zero halogen and flame retardant sheath,Complies with Standard YD/T 1997-2009.

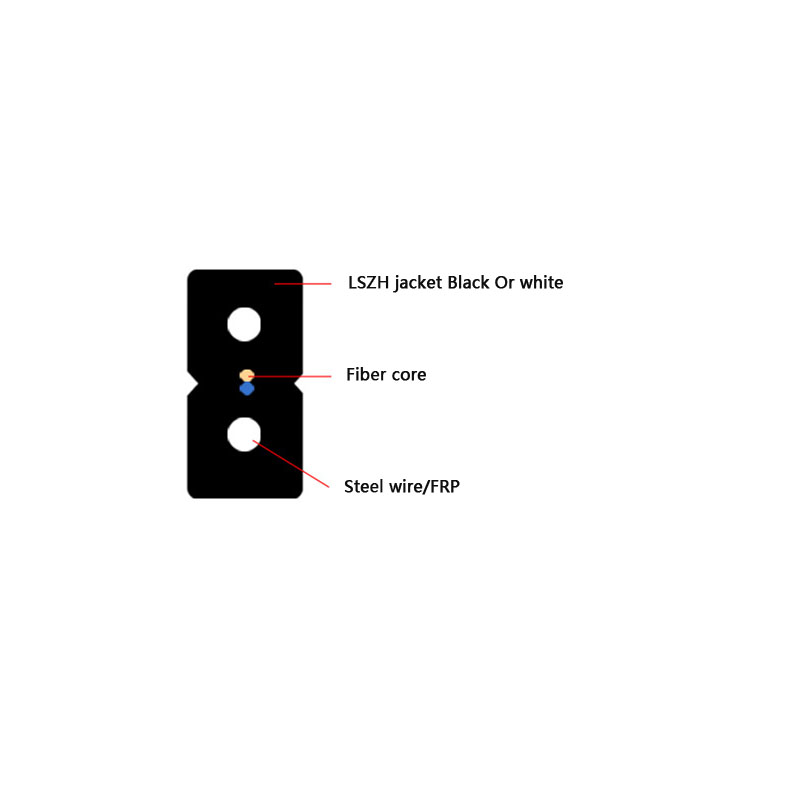

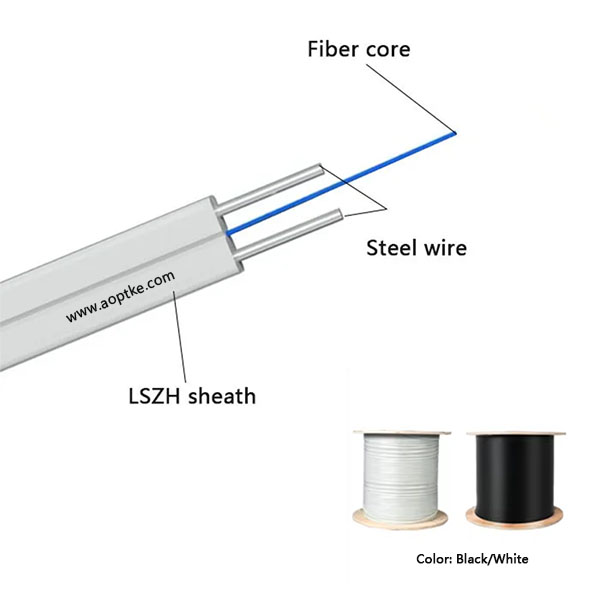

GJXH CABLE | Structure Parameters
Fiber Count
|
Cable Diameter
mm
|
Cable Weight
Kg/km
|
Tensile Strength
Long/Short Term
N
|
Crush Resistance
Long/Short Term
N/100m
|
Bending Radius
Static/Dynamic
mm
|
1
|
2.0x5.0
|
20
|
100/200
|
1000/2200
|
15D/30D
|
2
|
2.0x5.0
|
20
|
4
|
2.0x5.0
|
20
|
6
|
2.0x5.0
|
21
|
8
|
2.0x6.0
|
23
|
12
|
2.0x7.0
|
25
|

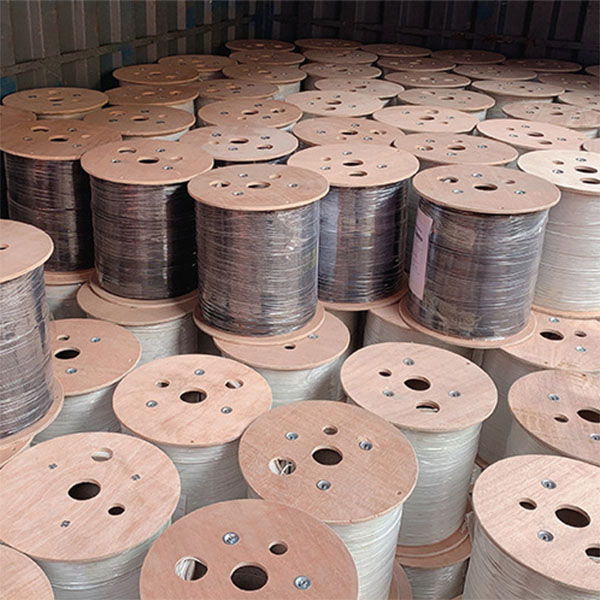

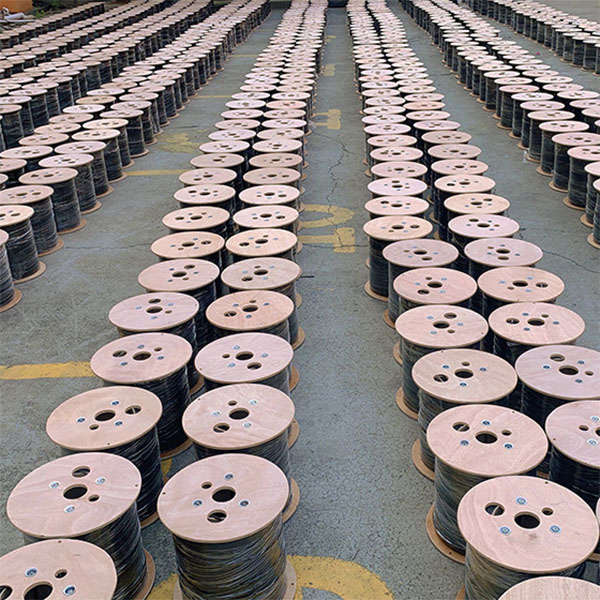

GJXH CABLE | Packaging and delivery
Container Type
|
Spool Configuration
|
Maximum Capacity
|
20ft Standard Container
|
Single-Jumbo Roll
|
6,500m
|
|
Double-Compact Roll
|
7,200m
|
40ft High-Cube Container
|
Single-Jumbo Roll
|
13,800m
|
|
Double-Compact Roll
|
15,000m
|
Note:
·Standard cable length: 1,000m/roll (customized lengths are available).
·Actual load may vary depending on packaging solution. Please contact sales@aoptke.com to obtain exclusive logistics solutions.
