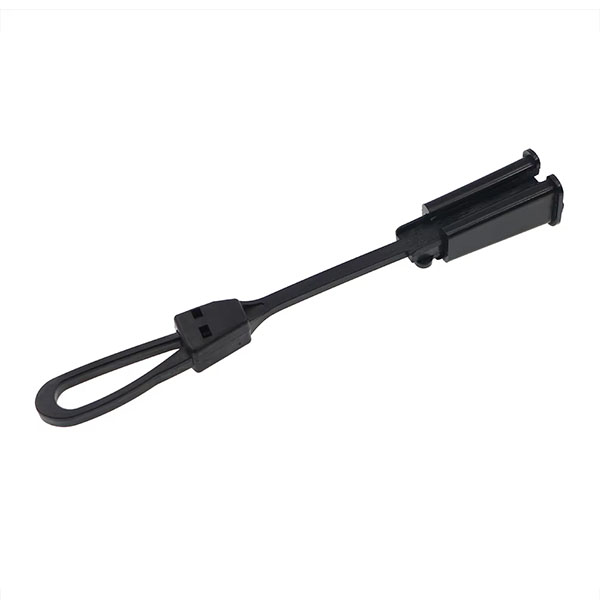

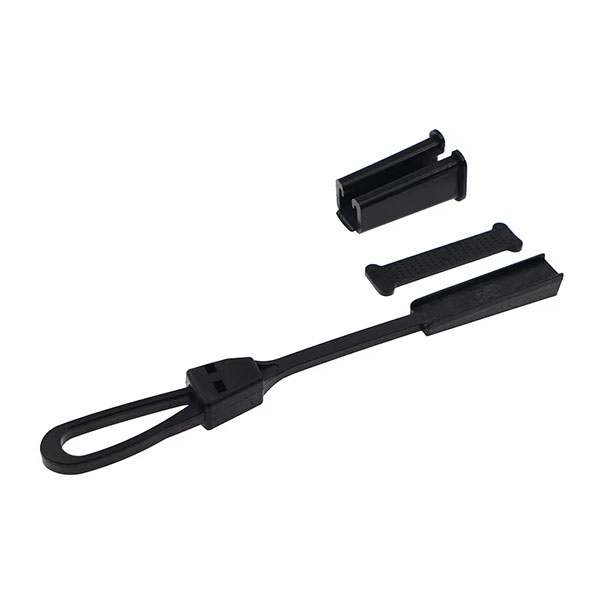

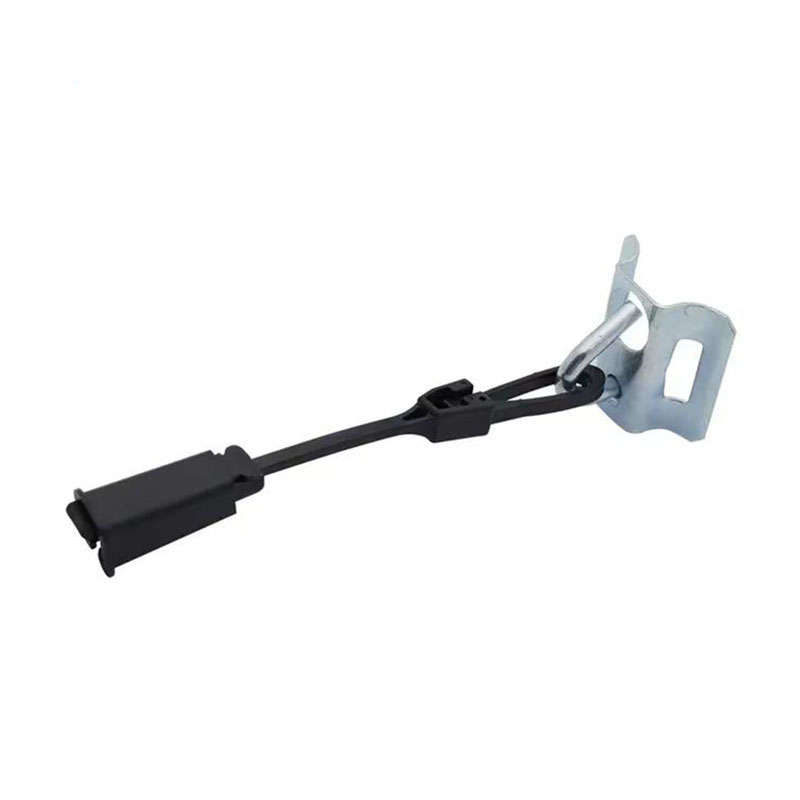

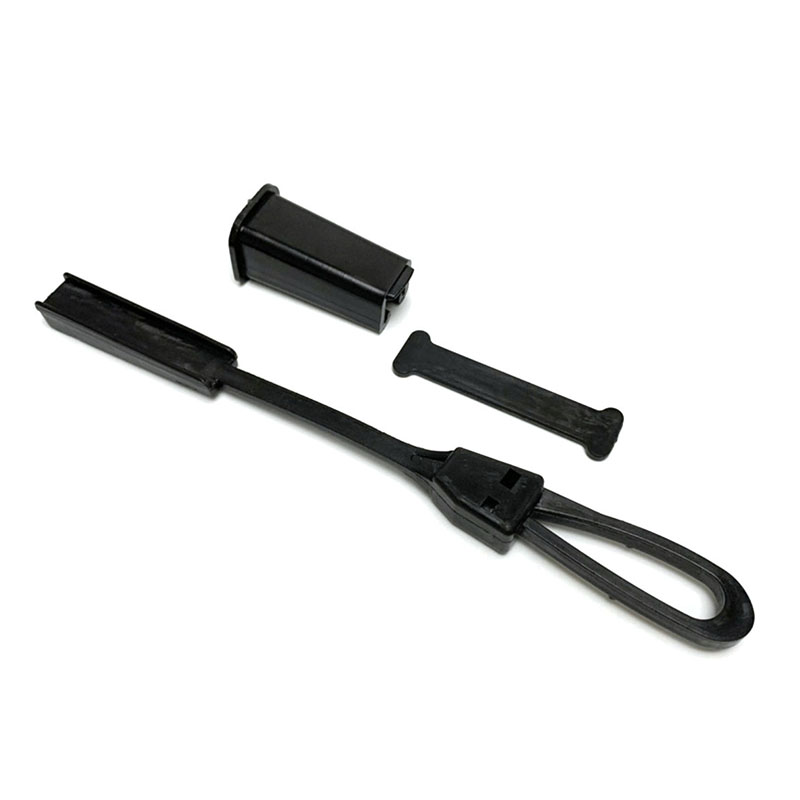

Drop Cable Clamp | Product Standards
The design of FTTH Drop Cable Clamp allows the cable to be clamped tightly and evenly along the entire length of the clamp. And in the case of heavy longitudinal loads on the cable, under operation, it will not slip and will not be damaged at the connection site.
Drop Cable Clamp | Product Features
·High strength and corrosion resistance: Made of engineering plastic, resistant to UV and chemical corrosion (conforms to ASTM D543 standard).
·Wear-resistant and anti-damage design: serrated gasket enhances cable fixation and adhesion, corrugated cushion prevents sheath scratches.
·Maintenance-free durability: anti-aging structure, no maintenance required for long-term outdoor use (applicable temperature: -40℃~+85℃).
·Quick and flexible disassembly and assembly: modular buckle design, supports repeated disassembly and wire diameter adjustment (suitable for φ5mm-20mm cables).
·Lightweight safety protection: self-weight <50g/piece, flame retardant grade UL94 V-0 (optional nylon/stainless steel reinforced models).
Drop Cable Clamp | Structure Parameters
Model
|
ODWAC-22S
|
Cable Diameter(mm)
|
(2-3)*(4-8)
|
Break Load(kN)
|
1
|
Tension（KN）
|
0.6
|
material
|
Nylon
|
UV Protection Level Material
|
Benzophenone and its derivatives
|
Accelerated weathering（300 hours）
|
no significant changes were ibserved
|
Conditioning
|
Procedure:8 hours UV at 60℃ and 4 hours condensation at 50℃
|
Test Method
|
ASTM G154-12a
|
