Drop Cable | Product Standards
-
AOPTKE's fiber optic drop cables are compliant with IEC 60794-4, IEC 60793 and TIA/EIA 598 A standards.If you have special requirements, please contact our sales and technical team. We also support OEM.
Drop Cable | Product Features
-
1. Special low bending sensitivity optical fiber provides high bandwidth and excellent communication transmission performance.

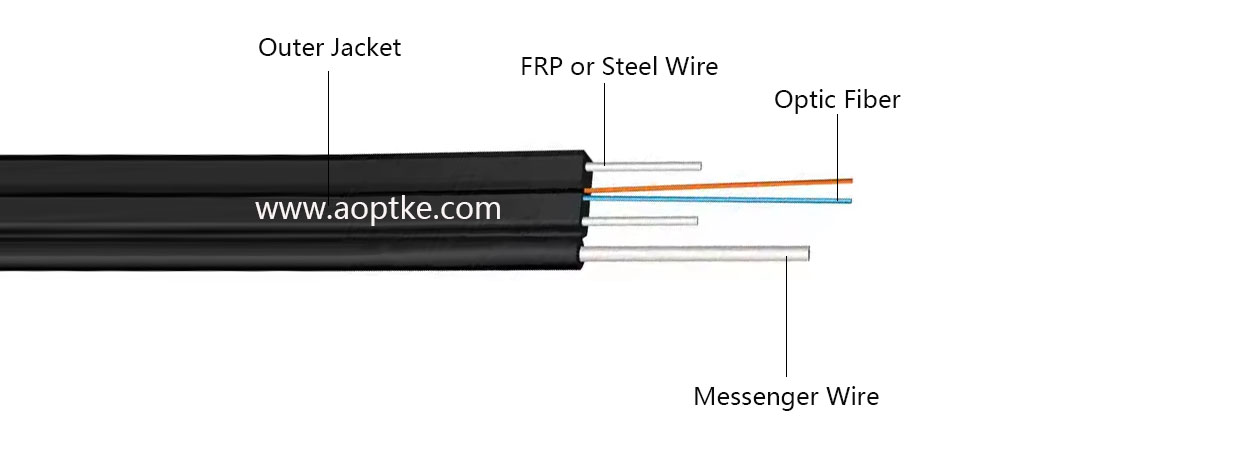

2. Two parallel steel wire or fiberglass strength members ensure good crush resistance to protect the fiber.
3. Simple structure, light weight and high practicality.
4. Novel groove design, easy stripping and splicing, simplifying installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.
Drop Cable | Structure Parameters
Optical cable model
|
Number of cores
|
Optical cable size
(mm)
|
Optical cable reference weight
(kg/km)
|
Allowable tensile force
Long term/short term
(N)
|
Allowable crushing force
Long term/short term
(N/100mm)
|
Bending radius
Dynamic/static
(mm)
|
GJYXFHS -1Xn
|
1
|
7.4
|
59
|
200/600
|
2000
|
20D/10D
|
GJYXFHS -2Xn
|
2
|
7.4
|
59
|
200/600
|
2000
|
20D/10D
|
Drop Cable | Optical properties
Fiber Type
|
Attenuation
|
Full injection bandwidth
|
Effective mode bandwidth
|
10G Ethernet link length
|
Minimum bending radius
|
condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
/
|
Typical value
|
Maximum value
|
Typical value
|
Maximum value
|
unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
---
|
---
|
---
|
---
|
---
|
10
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
---
|
---
|
---
|
---
|
---
|
7.5
|
OM3
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
OM4
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
Drop Cable | Packaging and delivery
-
Loading Quantity Advice
|
20'GP container
|
1KM/roll
|
600KM
|
2KM/roll
|
650KM
|
40'HQ container
|
1KM/roll
|
1100KM
|
2KM/roll
|
1300KM
|
*Standard length:1000m; Other length is also availabe.
*The above is just advice for container loading, please consult our sales department for the specific quantity.
