FPV fiber optic Canister | Product Standards
The Fiber Optic Canister offers a sleek, durable solution for storing and managing optical fibers with ease. Built for reliability, it ensures smooth cable deployment without straining the fiber.
FPV fiber optic Canister | Product Features
·Supports two-way AVI video output.

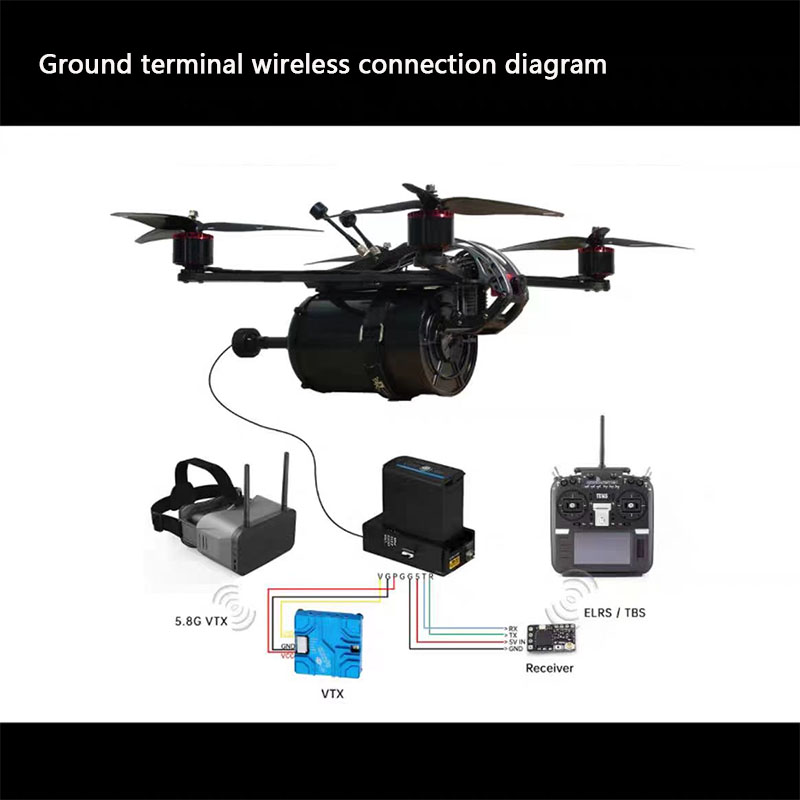

·Supports wireless video transmission connection output.
,Supports wireless signal frequency matching/wired CRSF protocol direct connection remote control.
.Provides six distances of 2/3/5/10/15/20km.
·Uses special cold-resistant sheath material, no impact in -30° environment.
FPV fiber optic Canister | Structure Parameters
Product Specifications
|
Ultra fiber ultra light version
|
Fiber diameter
|
0.25mm
|
Fiber interface
|
FC/UPC
|
Fiber model
|
G657a2 single-mode bend-resistant optical fiber
|
Shell material
|
Engineering plastic ABS
|
Product size
|
5KM fiber optic box
|
Diameter 90mm x height 230mm
|
0.65kg
|
10KM fiber optic box
|
Diameter 115mm x height 295mm
|
1.1kg
|
15KM fiber optic box
|
Diameter 115mm x height 295mm
|
1.4kg
|
20KM fiber optic box
|
Diameter 130mm x height 350mm
|
2.2kg
|
Product specifications
|
Light fiber lightweight version
|
Fiber diameter
|
0.3mm sheathed tight-packed optical fiber
|
Reinforced sheath material
|
High-strength modified PVC
|
Fiber interface
|
FC/UPC
|
|
|
Fiber model
|
G657 a2 single-mode bend-resistant optical fiber
|
Shell material
|
Engineering plastic ABS
|
Product size
|
3KM fiber optic box
|
Diameter 90mm x height 230mm
|
0.55kg
|
5KM fiber optic box
|
Diameter 115mm x height 295mm
|
0.75kg
|
10KM fiber optic box
|
Diameter 115mm x height 295mm
|
1.3kg
|
15KM fiber optic box
|
Diameter 130mm x height 350mm
|
2.0kg
|
20KM fiber optic box
|
Diameter 130mm x height 350mm
|
2.5kg
|
