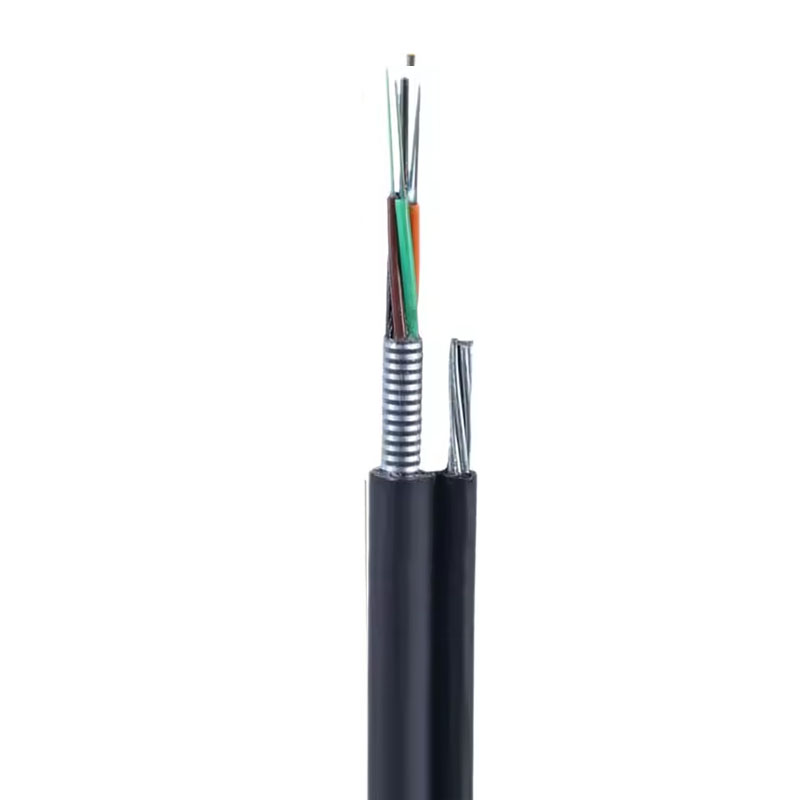

Figure 8 Cable GYTC8A with Aluminum Tape

Short Description:

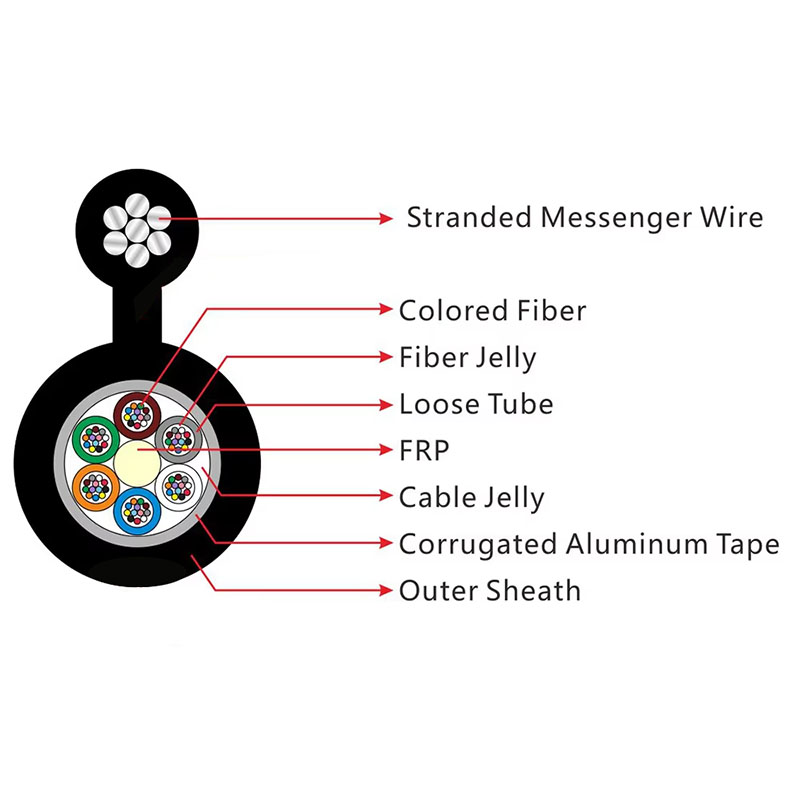

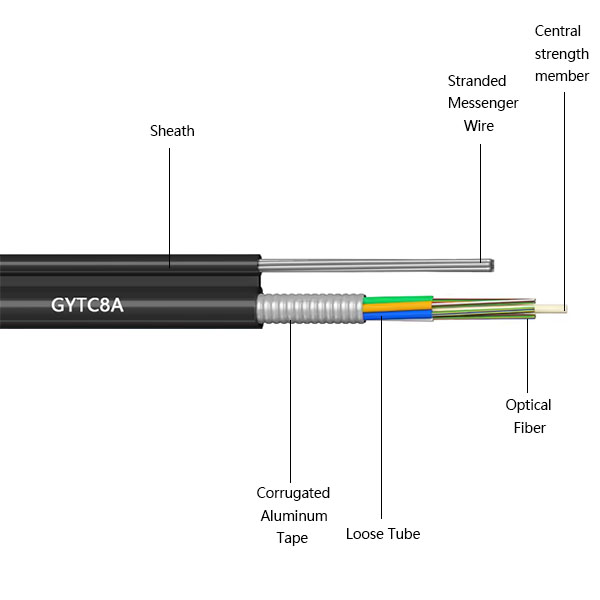

GYTC8A 8-shaped aluminum ribbon optical cable uses high modulus plastic loose tube to encapsulate optical fiber, with a built-in central steel core reinforcement in the cable core, full-section water-blocking filling in the loose tube, and an outer layer covered with aluminum tape armor and PE sheath, forming a self-supporting 8-shaped structure with double sheaths integrated into one.


  • Model: GYTC8A 2-288fo
  • Length: 1000/2000/3000m or customized
  • Application: Self-supporting antenna/FTTX
  • Delivery time: 3-15 days

Product Detail

Product Tags


GYTC8A CABLE | Product Standards


GYTC8A 8-shaped optical cable has high tensile strength, moisture resistance, and bending resistance, and is suitable for outdoor communication scenarios with high strength requirements such as overhead wiring.

All AOPTKE CABLE's 8-shaped cables comply with standards YD/T 901-2009 and IEC 60794-1.


GYTC8A CABLE | Product Features


1. Double-sheathed 8-shaped self-supporting: aluminum tape armor + PE sheath is integrated into one, taking into account the compression and torsion resistance, supporting rapid overhead deployment and reducing construction costs.

2. Full-section water-blocking protection: The gap between the loose tube and the cable core is filled with water-blocking compound, which is effective in moisture and seepage prevention and adapts to high-humidity outdoor environments.

3. High-strength bending resistance design: The central steel core + aluminum tape armor layer is double-reinforced,  ensuring durability in complex terrain.

4. Lightweight outdoor applicability: Compact structure (reference diameter) and low wind resistance design, suitable for long-span overhead scenes, meeting stringent requirements such as FTTH/5G base stations.


GYTC8A CABLE | Structure Parameters


Product Models and Specifications

Model

Fiber Count (Cores)

Outer Diameter (mm)

Unit Weight (kg/km)

Tensile Strength (Long/Short Term)

Crush Resistance (Long/Short Term)

GYTC8A 2–30

2–30

9.5×19.1

160

2000N / 6000N

300N / 1000N

GYTC8A 32–36

32–36

10.1×19.7

170

2000N / 6000N

300N / 1000N

GYTC8A 38–60

38–60

10.8×20.4

180

2000N / 6000N

300N / 1000N

GYTC8A 62–72

62–72

12.4×22.0

195

2000N / 6000N

300N / 1000N

GYTC8A 74–96

74–96

13.1×22.7

222

2000N / 6000N

300N / 1000N

GYTC8A 98–120

98–120

15.7×22.3

238

2000N / 6000N

300N / 1000N

GYTC8A 122–144

122–144

15.5×25.1

273

2000N / 6000N

300N / 1000N


Mechanical and Environmental Characteristics

Key Characteristics

Specifications

Tensile Strength

Short-term max tensile strength: 6000N

Crush Resistance

Short-term crush resistance: 1000N/100mm

Installation Bend Radius

≤20× cable diameter (during installation)

Operational Bend Radius

≤10× cable diameter (after deployment)

Strength Member

1.2mm×7 steel wire strand

Storage Temperature

-50°C to +70°C

Operating Temperature

-40°C to +60°C
