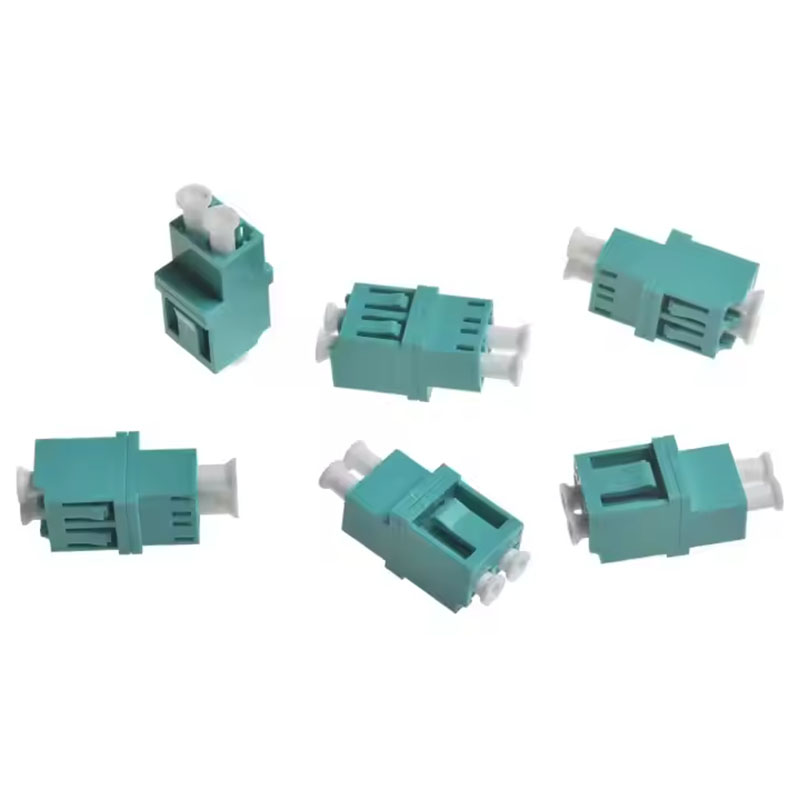

Fiber Optic LC Adaptor LC Duplex Coupler

Fiber Optic LC Adaptor LC Duplex Coupler

Short Description:

LC adaptors are used for mating 2 different style connectors or assemblies. These adaptors have a female adaptor end united to the back end of a different male connector which can be connected to an additional adaptor or interface of the same type. This can change the assembly end without the need for additional cable, therefore reducing space.


Product Detail

Product Tags

LC Adaptor | Product Standards

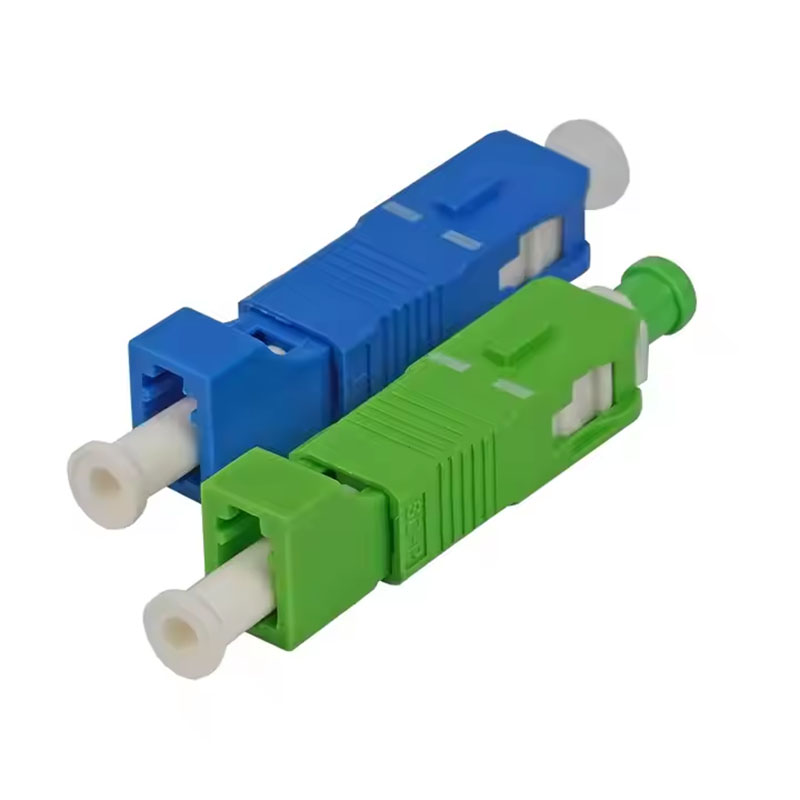

AOPTKE CABLE adaptors conform to GR-326 and IEC standards,, are quality tested, and supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.

LC Adaptor | Product Features

 ·High size precision.

·Good repeatability.

·Good changeability.

·Good temperature stabilization.

·High wearable.

LC Adaptor | tructure Parameters

Type

Single mode

Multimode

Insertion Loss

<0.2dB

<0.2dB

Plug and unplug force(g/f)

200-600G

Durability

1000 times

Operating Temperature

-25~85°C

Operating Temperature

-40~110°C

Humidity

95%RH(Non-Packaging)
