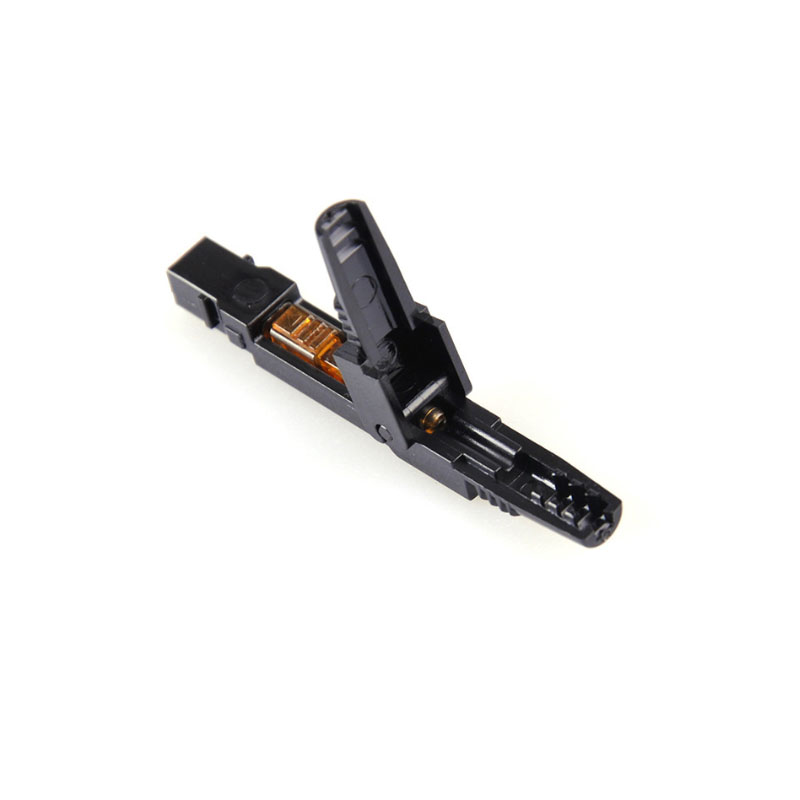

Fiber optic connectors for telecommunications

Short Description:

A fiber optic connector is a pre-polished connector that uses mechanical clamping and alignment to cleave the fiber end that is inserted into the connector body.


  • Model: A0001
  • Unit: pcs

Product Detail

Product Tags


  • Fiber optic connectors | Product Standards



    Fiber optic connectors | Product Features


    1. The fiber joint has axial adhesion, and the loss is ≤0.3DB.

    2. The fiber clamping components use anti-aging plastic components that are not easy to age, high temperature resistant, vibration resistant, and good anti-drop performance.

    3. Brand new high-quality ceramic ferrule, stable and reliable performance with good repeatability.

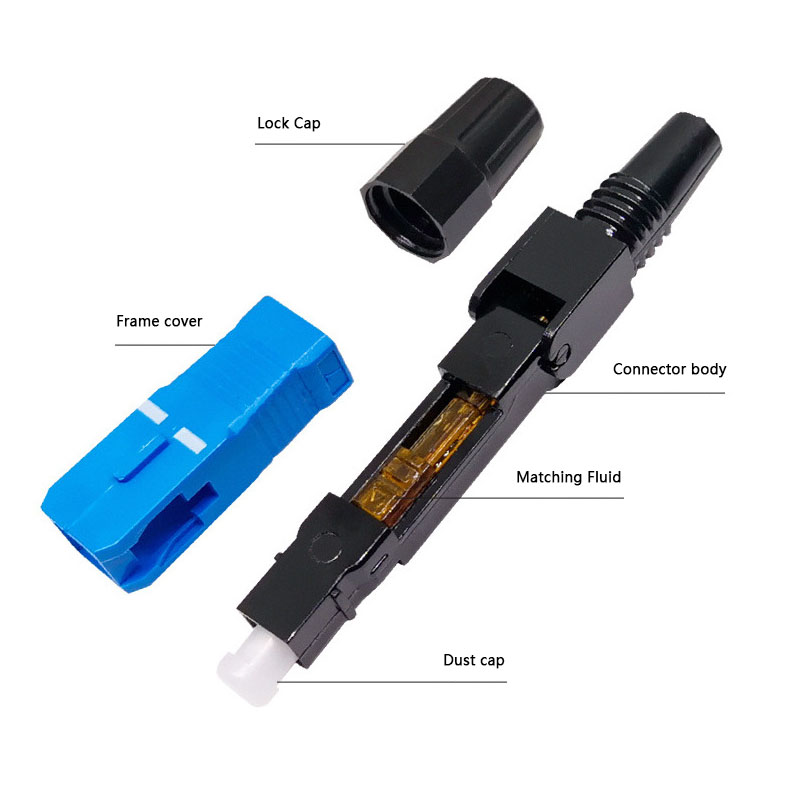

    Fiber optic connectors | Structure Parameters


    Project

    Technical parameters

    Scope of application

    2.0X3.0mm sheathed optical cable

    Fiber diameter

    0.125mm(657A&657B)

    Tight cladding diameter

    0.250mm

    Applicable mode

    single mode

    Operation time

    about 10s (excluding fiber processing)

    Average insertion loss

    <0.25dB

    Return loss

    UPC>50dB, APC>60dB

    Optical cable type tensile strength

    >30N

    Using temperature

    -40℃~sanja

    ▲IL≤0.3dB

    High temperature and high humidity test (96h)

    ▲IL≤0.3dB

    Drop test (1.5m high concrete floor, 8 times in total)

    ▲IL≤0.3dB

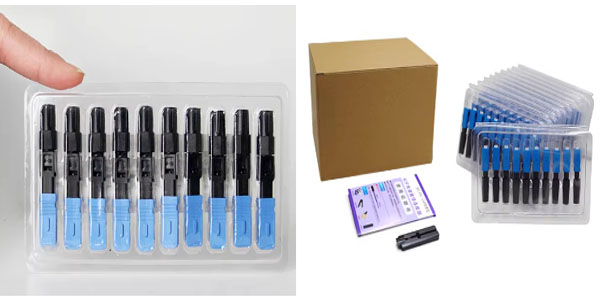

    Fiber optic connectors | Packaging and delivery
