Cat7 | Product Standards
AOPTKE has been focusing on the integrated wiring field for 10 years and has obtained international certifications such as ISO9001 and RoHS, providing industrial-grade communication solutions to more than 50 countries around the world. We have our own cable production base, equipped with professional equipment such as TDR impedance testers, and our products cover a variety of scenarios such as data centers, smart security and industrial automation.
Cat7 | Product Features
1. Future-level transmission performance
·10Gbps high-speed transmission: supports 10 Gigabit Ethernet, 2.5 times faster than Cat6a.
·600MHz ultra-high bandwidth: provides non-blocking data channels for multi-device parallel operation (such as server clusters, industrial sensor networks).
2. Industrial-grade anti-interference design

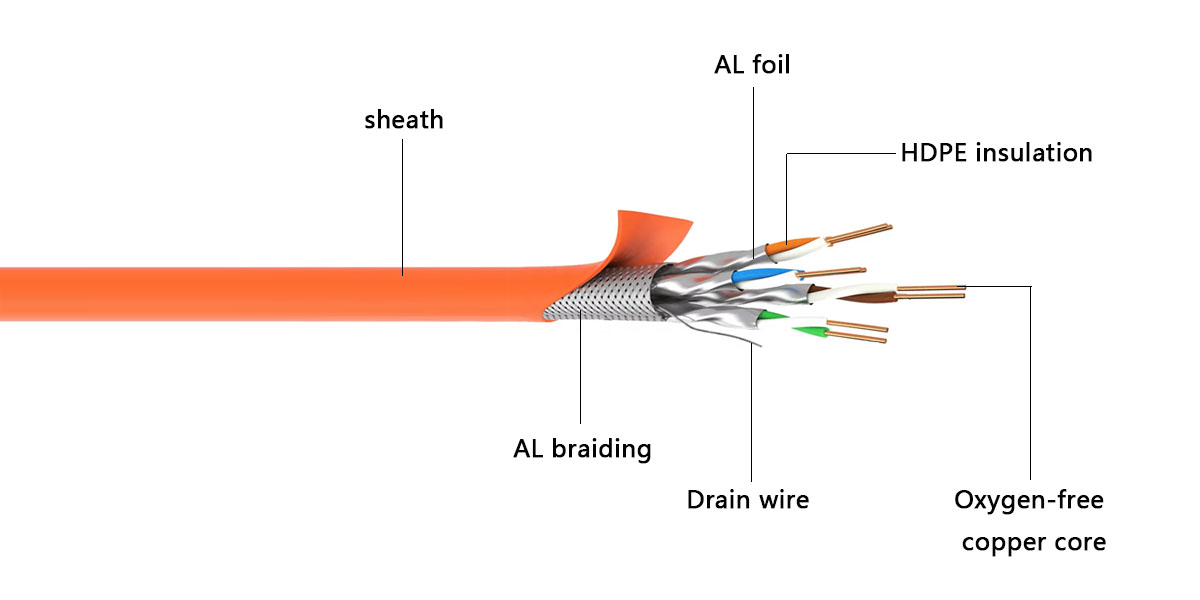

·Double-layer shielding (SF/UTP): outer aluminum foil overall shielding + independent line pair aluminum foil shielding, completely isolating electromagnetic interference (EMI) and radio frequency interference (RFI), suitable for high-interference scenarios such as factories and medical equipment.
4. Durable structure
·US standard 23AWG pure copper wire core: ensures low signal attenuation and long-distance transmission (lossless rate within 100 meters).
·High-density PVC sheath: wear-resistant, oil-resistant, and anti-bending, passed 10,000 plug-in and pull-out tests, and adapts to harsh environments such as computer rooms and outdoor pipelines.

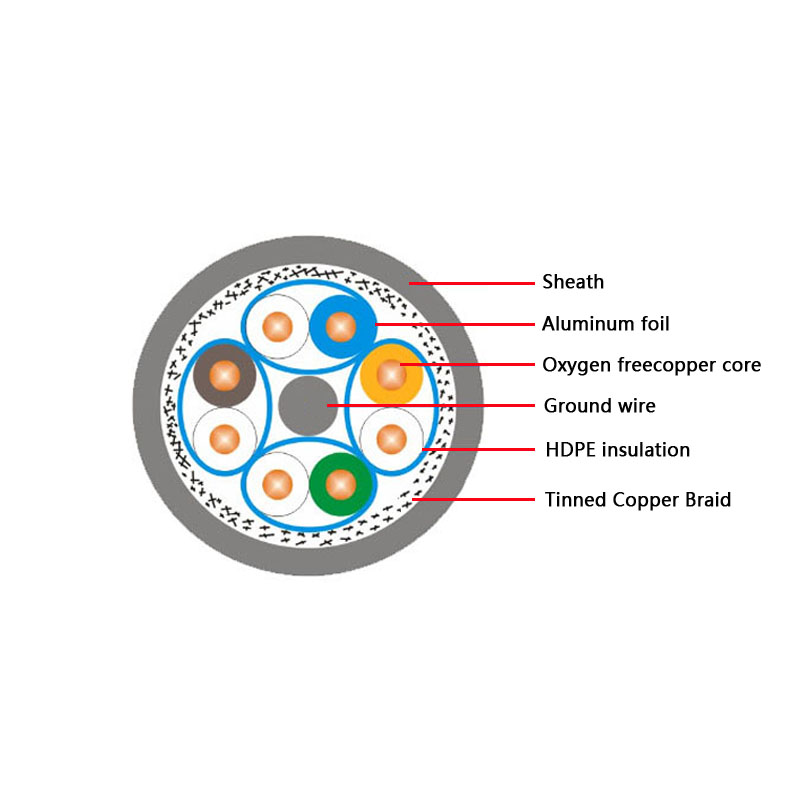

Cat7 | Physical parameters
Copper core conductor
|
Electrical characteristics
|
Sheath
|
Conductor material
|
single strand bare copper
|
DC resistance
|
≤9.52/100m
|
Sheath material
|
PVC, LSZH, PE
|
Conductor diameter
|
0.60±0.03mm
|
Characteristic impedance
|
≤9.52/100m
|
Sheath color
|
Orange or customized
|
Conductor wire gauge
|
23AWG
|
Characteristic impedance
|
100±15Q (4-250Mhz)
|
Average thickness
|
20.5mm
|
Insulation
|
100±20Ω (250~600Mhz)
|
Sheath outer diameter
|
8.0±0.3mm
|
Insulation material
|
HDPE
|
Propagation phase delay
|
≤535ns/100m(600MHz)
|
shield
|
Insulation diameter
|
1.35±0.05mm
|
Line pair DC resistance unbalance
|
≤2%
|
Inner shield
|
aluminum foil
|
Product Applications
|
Ground wire
|
tinned copper wire
|
1000 Base-Tx Gigabit Ethernet
|
2.5 GBse-Tx2.5G Ethernet
|
5 GBse-Tx5G Ethernet
|
10 GBase-Tx10G Ethernet
|
Outer shield
|
16×6×0.12mm
|
Cat7 | Transmission characteristics
Frequency (MHz)
|
Frequency (MHz)
|
Attenuation(Max)
dB/100m
|
Near-end crosstalk dB (Min)
|
Near string attenuation power and dB(Min)
|
Equal level far end crosstalk
dB/100m(Min)
|
Equal level long-distance string
Attenuation power sum
dB(Min)/100m
|
4
|
24.5
|
3.5
|
79.3
|
75.8
|
78.5
|
75.5
|
8
|
26.0
|
5.0
|
79.3
|
75.8
|
77.7
|
74.7
|
16
|
26.5
|
7.2
|
79.3
|
75.8
|
71.7
|
68.7
|
20
|
26.5
|
8.1
|
79.3
|
75.8
|
69.8
|
66.8
|
31.25
|
25.1
|
10.2
|
79.3
|
75.8
|
65.9
|
62.9
|
62.5
|
23.0
|
14.7
|
76.8
|
73.3
|
59.9
|
56.9
|
100
|
21.6
|
18.8
|
73.7
|
70.2
|
55.8
|
52.8
|
250
|
18.8
|
30.8
|
67.7
|
64.2
|
47.8
|
44.8
|
500
|
18.8
|
45.1
|
63.2
|
59.7
|
41.8
|
38.8
|
600
|
18.8
|
49.9
|
62.0
|
58.5
|
40.2
|
37.2
|
1000
|
15.1
|
61.9
|
60.4
|
57.4
|
35.3
|
32.3
|
-

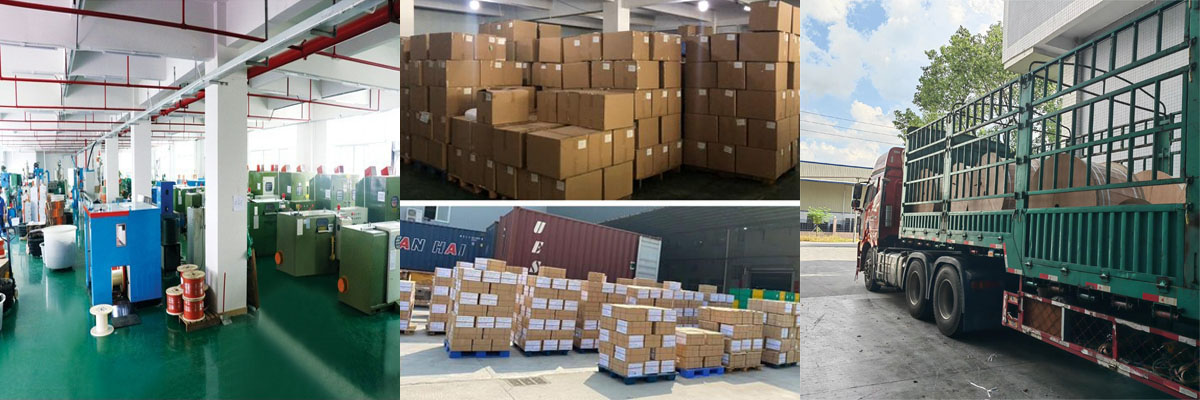

Cat7 | Packaging and Delivery
-
