OPGW Product Standards
AOPTKE's OPGW cables are compliant with IEEE 1138, IEC 60794-4, IEC 60793 and TIA/EIA 598 A standards.If you have special requirements, please contact our sales and technical team. We also support OEM.
OPGW Product Features
1.Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds.
2.The short-circuit current has little mutual interference between the power grid and the communication network.
3.The excess length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when the maximum operating tension is reached.
4.Good compact structure and high tensile strength.

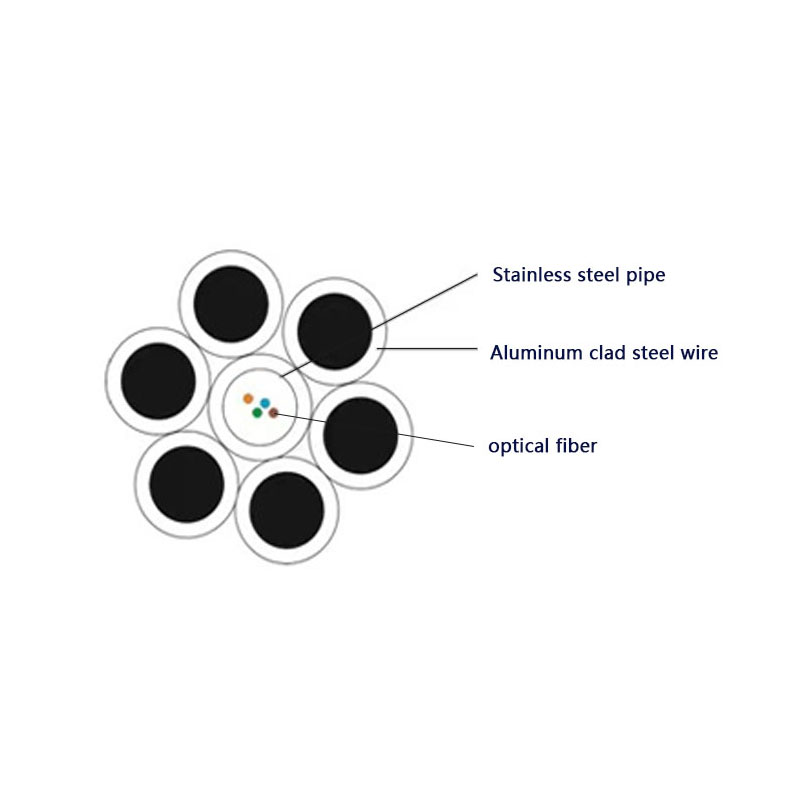

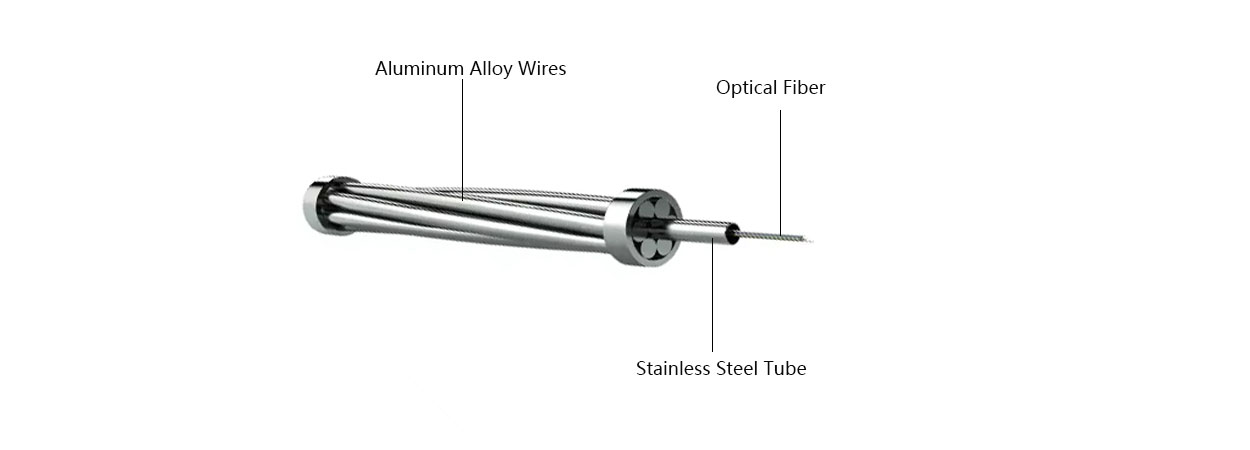

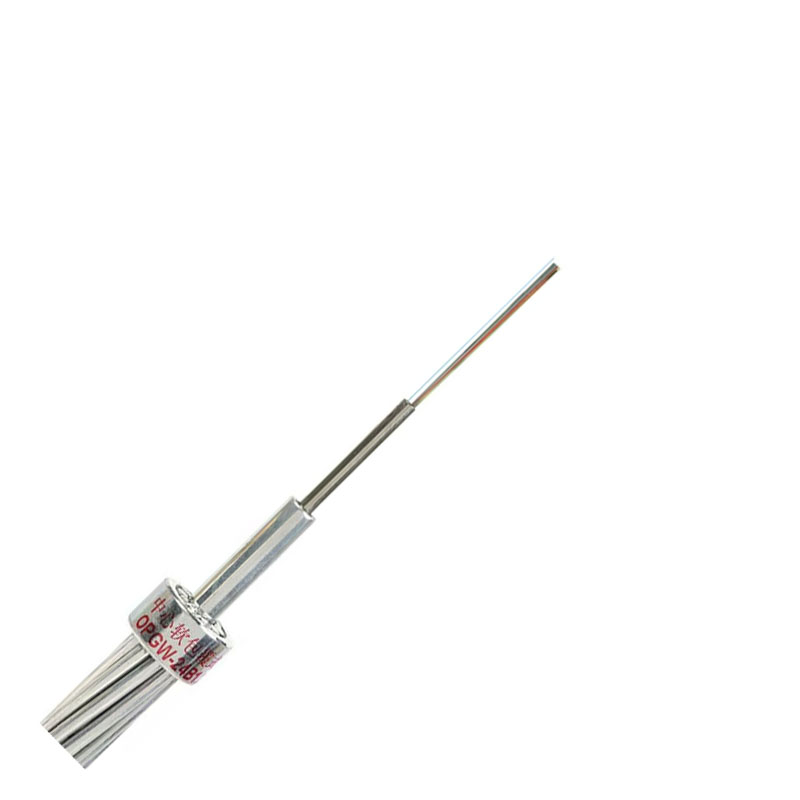

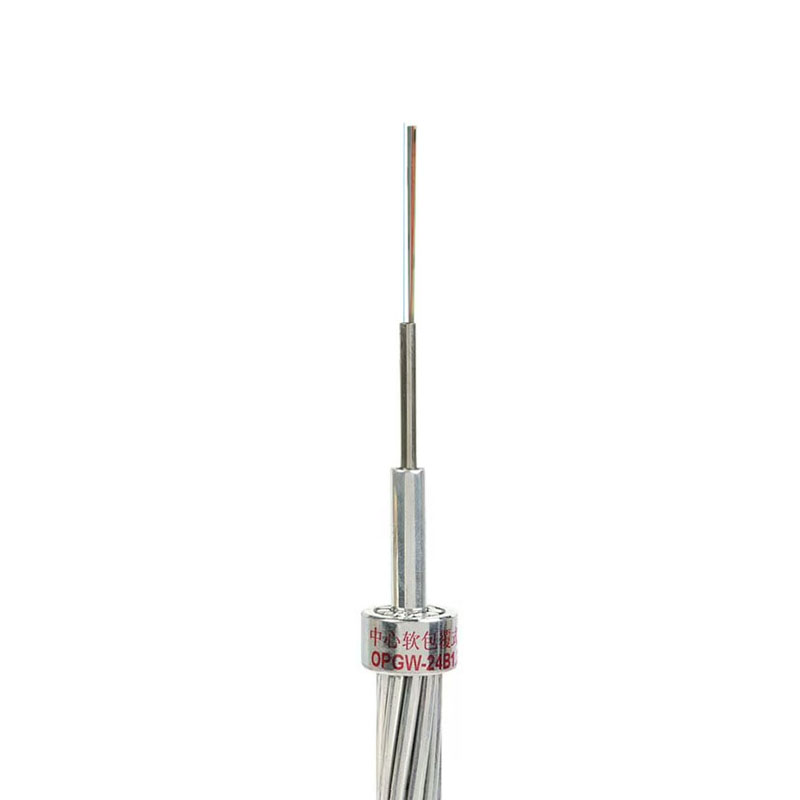

OPGW Structure Parameters
Cable Performance Parameter
|
|
Span meter
|
200
|
300
|
400
|
Related Strength Tension(RTS)
|
17.5 kn
|
20.6 kn
|
28kn
|
Max Allowable Tension(MAT)
|
6.9 kn
|
8.2 kn
|
11.5 kn
|
Allowable Crush Resistance
|
Long Term: 1100 n/100mm
|
Long Term: 1100 n/100mm
|
Long Term: 1100 n/100mm
|
Short Term: 2200 n/100mm
|
Short Term: 2200 n/100mm
|
Short Term: 2200 n/100mm
|
Minimum Bending Radius
|
Operating: 220 mm
|
Operating: 220 mm
|
Operating: 220 mm
|
Installlation: 360 mm
|
Installlation: 360 mm
|
Installlation: 360 mm
|
Temperature Range
|
Operating: -40 /+70℃
|
Operating: -40 /+70℃
|
Operating: -40 /+70℃
|
Installlation: -15 / +60℃
|
Installlation: -15 / +60℃
|
Installlation: -15 / +60℃
|
Out Sheath Material
|
Electrical Resistance AT (Borealis material 6081) Sheath
|
|
Note
|
ice accretion 5MM,weed speed:30M/S
|
|
Typical Design for Single Layer
|
Specification
|
Fiber Count
|
Diameter (mm)
|
Weight (kg/km)
|
RTS (KN)
|
Short Circuit (KA2s
|
OPGW-50(58;12)
|
12
|
9.6
|
344
|
58
|
12
|
OPGW-75(86.7;30.5)
|
24
|
12
|
527
|
86.7
|
30.5
|
OPGW-70(81.5.6;25.2)
|
48
|
11.4
|
480
|
81.5
|
25.2
|
-
Typical design for Double Layer
|
Specification
|
Fiber Count
|
Diameter(mm)
|
Weight (kg/km)
|
RTS(KN)
|
Short Circuit (KA2s)
|
OPGW-96[121.7;42.2]
|
12
|
13
|
671
|
121.7
|
42.2
|
OPGW-127[141.0;87.9]
|
24
|
15
|
825
|
141
|
87.9
|
OPGW-127[77.8;128.0]
|
24
|
15
|
547
|
77.8
|
128
|
OPGW-145(121.0;132.2)
|
28
|
16
|
857
|
121
|
132.2
|
OPGW-163(138.2;183.6)
|
36
|
17
|
910
|
138.2
|
186.3
|
OPGW-163(99.9;213.7)
|
36
|
17
|
694
|
99.9
|
213.7
|
OPGW-183(109.7;268.7)
|
48
|
18
|
775
|
109.7
|
268.7
|
OPGW-183(118.4;261.6)
|
48
|
18
|
895
|
118.4
|
261.6
|
OPGW Fiber Characteristics
|
Fiber Attenuation
|
Bandwidth
|
Polarization Mode Dispersion
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
Single fiber
|
Link value (M=20, Q=0.01%)
|
G652D
|
—
|
—
|
≤0.35dB/km
|
≤0.21dB/km
|
—
|
—
|
≤0.20ps/ km
|
≤0.1ps/ km
|
G655
|
—
|
—
|
—
|
≤0.22dB/km
|
—
|
—
|
≤0.20ps/ km
|
≤0.1ps/ km
|
50/125μm
|
≤3.0dB/km
|
≤1.0dB/km
|
—
|
—
|
≥600MHz.km
|
≥1200MHz.km
|
—
|
—
|
62.5/125μm
|
≤3.5dB/km
|
≤1.0dB/km
|
—
|
—
|
≥200MHz.km
|
≥600MHz.km
|
—
|
—
|

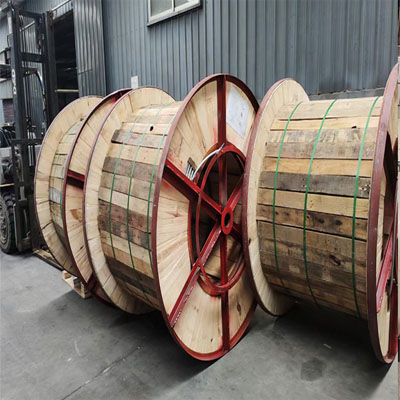

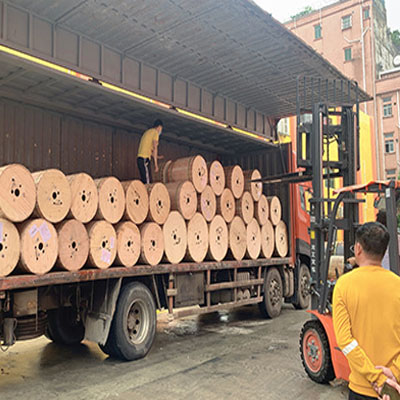

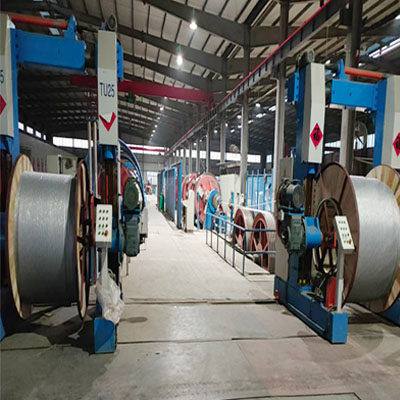

OPGW Packaging and delivery
-
