Cat6 UTP | Product Standards

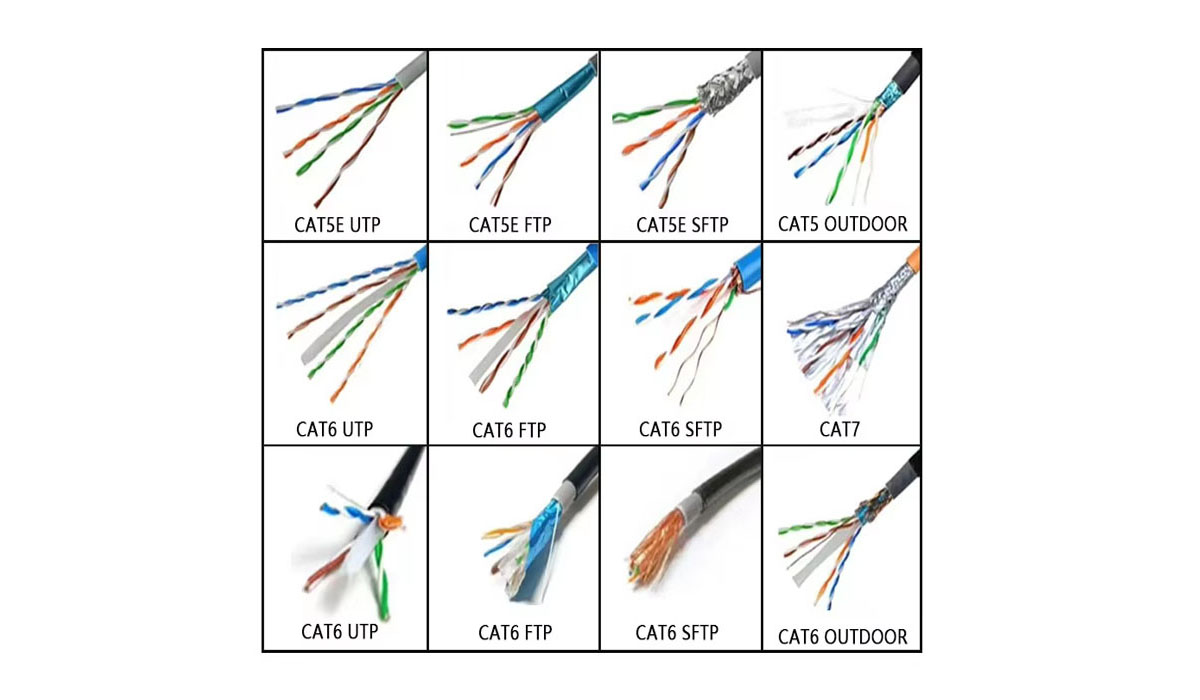

AOPTKE CABEL. is a 10-year reliable fiber optic equipment manufacturer. We can provide 5e, 6e, 7e Ethernet cables. The product complies with YD/T 1019-2013, ISO/IEC 11801:2017, TIA-568.2-D:2018
Cat6 UTP | Product Features

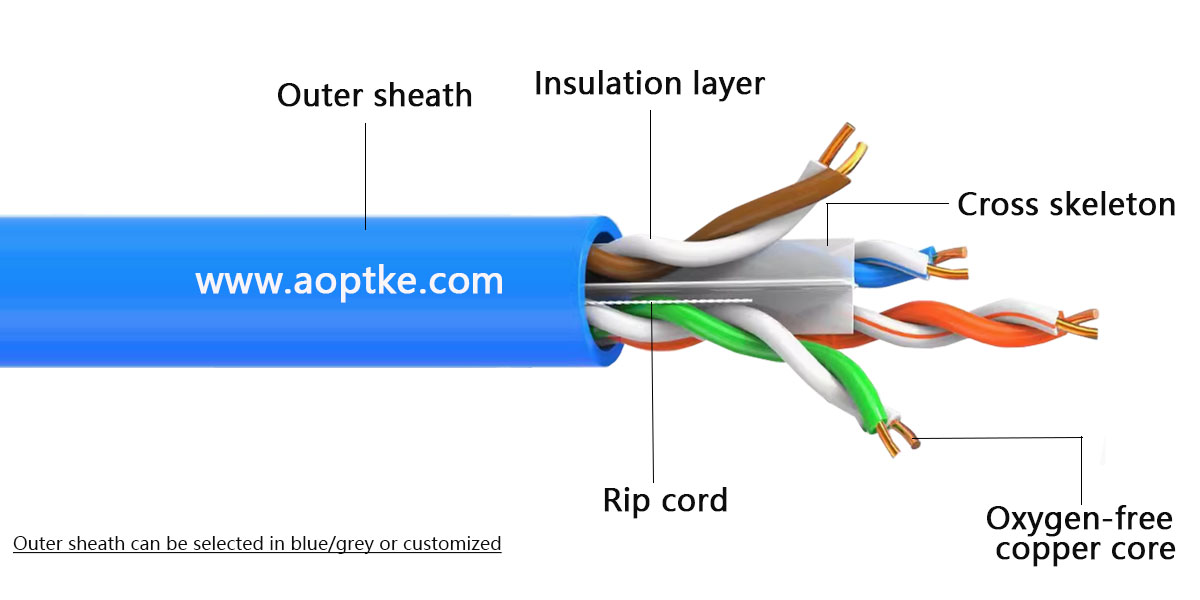

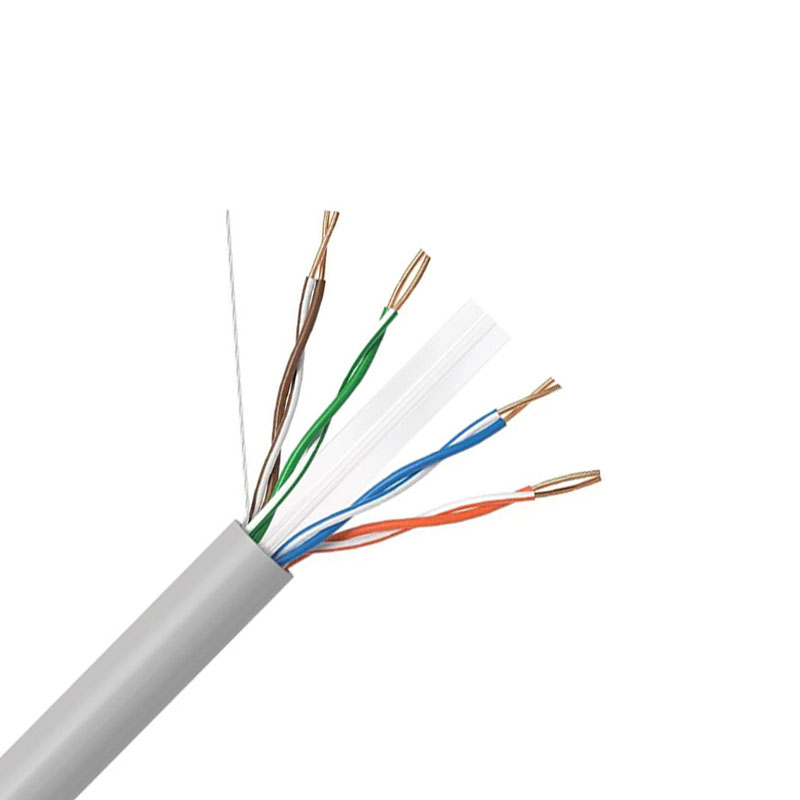

1.The copper wire is made of oxygen-free copper, with a conductor diameter of 0.57±0.02mm/24AWG.
2.The insulation layer is made of HDPE material, solid insulation, and the insulation outer diameter is 0.98±0.02mm.

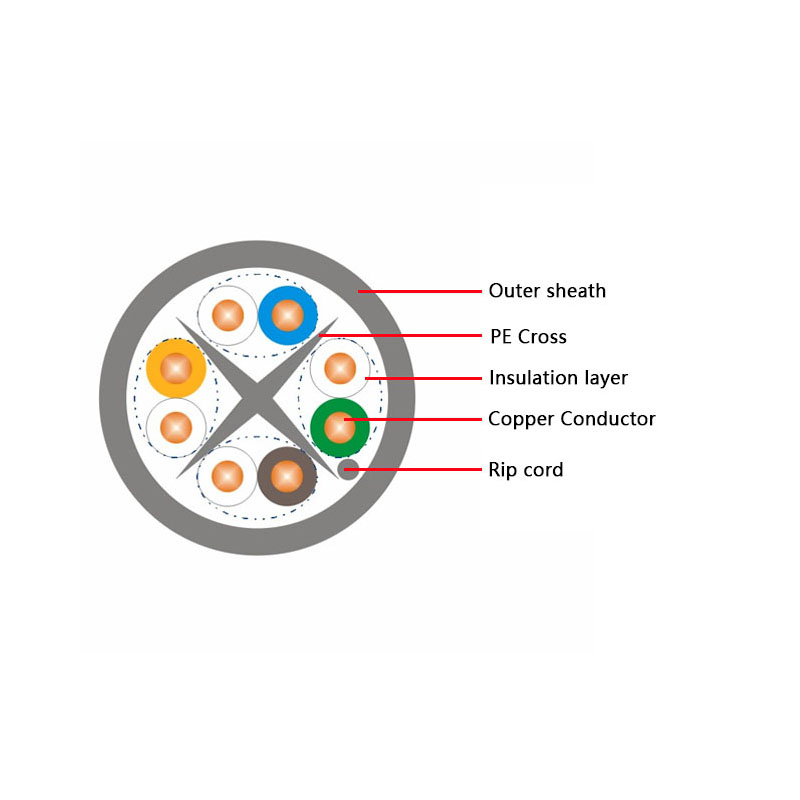

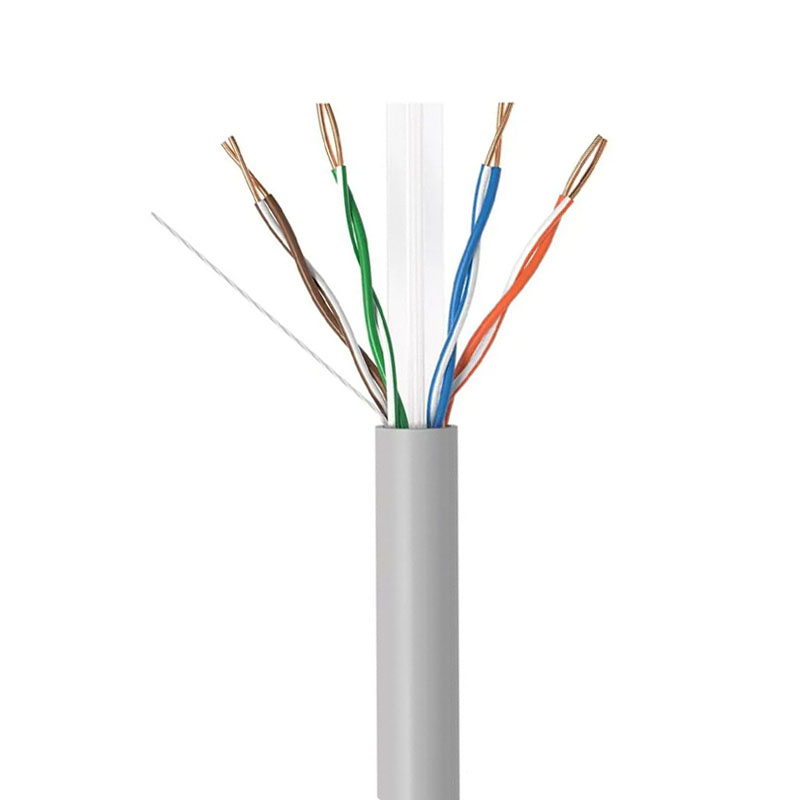

3.The skeleton adopts a cross-shaped structure.
4.The sheath thickness is ≥0.55mm, and the sheath outer diameter is 6.0±0.3mm ■Sheath materials can be selected from PVC, LSZH, and LDPE.
Cat6 UTP | Physical parameters
Oxygen-free copper conductor
|
Insulation
|
Product Standard
|
Conductor material
|
single strand bare copper
|
Insulation material
|
HDPE
|
IS0/lEC11801:2017
|
Conductor diameter
|
0.57±0.02mm
|
Insulation diameter
|
0.980.02mm
|
TlA-568.2-D:2018
|
Conductor wire gauge
|
24AWG
|
|
|
YD/T1019-2013
|
jacket
|
Electrical characteristics
|
Product Applications
|
Sheath material
|
PVC, LSZH, PE
|
DC resistance
|
≤9.5Ω/100m
|
100 Base-Tx 100M Ethernet
|
Sheath color
|
gray, bule,customized
|
Characteristic impedance
|
100±152(4-250MHz)
|
1000 Base-Tx Gigabit Ethernet
|
Cat6 UTP | Transmission characteristics
Frequency (MHz)
|
Return loss
dB(Min)
|
Damping(Max)
dB/100m
|
Near-end crosstalk
dB(Min)
|
Near string attenuation
Power and
dB(Min)
|
Equal level
Far end crosstalk
dB(Min)
|
Equal level long-range string
Reduction power sum
dB(Min)
|
4
|
24.5
|
3.6
|
67.8
|
64.1
|
56.5
|
53.5
|
8
|
26.0
|
5.1
|
63.1
|
59.6
|
50.4
|
47.4
|
16
|
26.5
|
7.4
|
58.5
|
55.0
|
44.4
|
41.4
|
20
|
26.5
|
8.3
|
57.1
|
53.6
|
42.5
|
39.5
|
31.25
|
25.1
|
10.5
|
54.2
|
50.7
|
38.6
|
35.6
|
62.5
|
23.0
|
15.2
|
49.7
|
46.2
|
32.6
|
29.6
|
100
|
21.6
|
19.6
|
46.6
|
43.1
|
28.5
|
25.5
|
250
|
18.8
|
32.6
|
40.6
|
37.1
|
20.5
|
17.5
|
