Cat6 FTP | Product Standards
AOPTKE CABEL. has been focusing on the integrated wiring field for 10 years, and has obtained international certifications such as ISO9001 and RoHS, providing industrial-grade communication solutions for more than 50 countries around the world. We have our own cable production base, equipped with professional equipment such as TDR impedance testers, and our products cover multiple scenarios such as data centers, smart security, and industrial automation.
Cat6 FTP | Product Description
1. Certification standards: TIA/EIA-568-C.2, ISO/IEC11801, ROHS, CE.

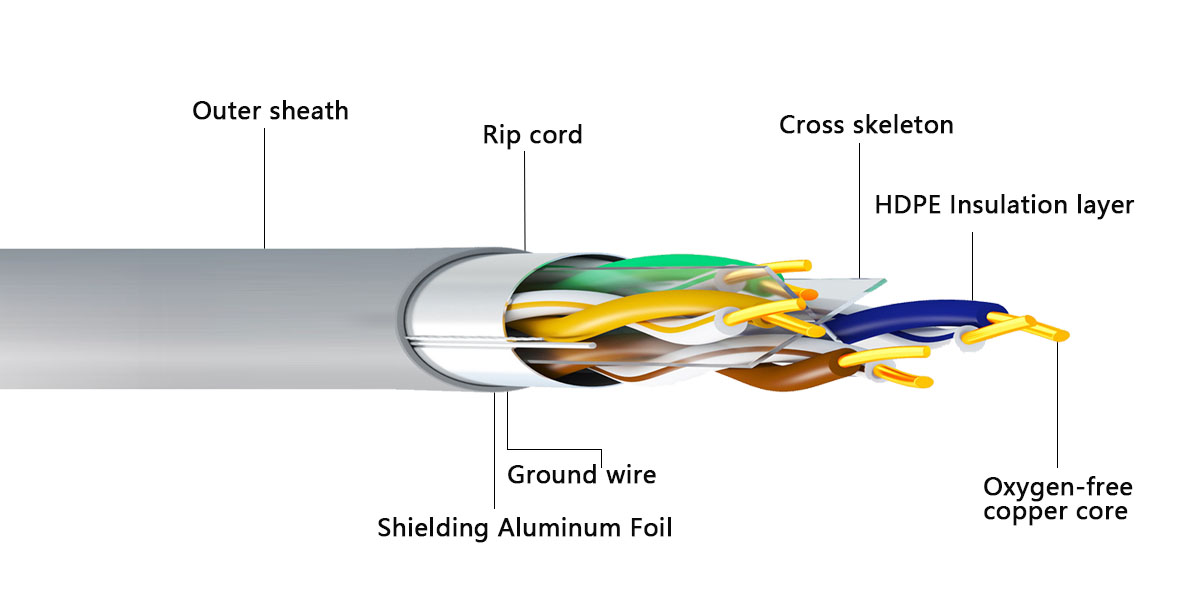

2. Shielding structure: F/UTP (single-layer aluminum foil wrapped twisted pair, grounding design anti-static).
3. Wire core material: 4 pairs of high-purity oxygen-free copper (OFC), HDPE insulation layer to prevent signal leakage.
4. Transmission distance: 10Gbps@55 meters, 1Gbps@100 meters
(without relay).
Cat6 FTP | Product parameters
Conductor (oxygen-free copper)
|
Product Applications
|
Sheath
|
Electrical characteristics
|
Conductor material
|
single strand bare copper
|
100 Base-Tx 100M Ethernet
|
Sheath material
|
PVC, LSZH, PE
|
DC resistance
|
≤9.52/100m
|
Conductor wire gauge
|
24AWG
|
1000 Base-Tx Gigabit Ethernet
|
Sheath color
|
gray, customized
|
Characteristic impedance
|
100±15Ω(4-250MHZ)
|
Conductor diameter
|
0.57±0.02mm
|
2.5 GBse-Tx 2.5G Ethernet
|
Average thickness
|
≥0.5mm
|
Propagation phase delay
|
≤536ns/100m(250MHz)
|
|
5 GBse-Tx 5G Ethernet
|
Sheath outer diameter
|
7.5±0.3mm
|
Line pair DC resistance unbalance
|
≤2%
|
Product Standard
|
Shielding
|
Insulation
|
|
IS0/1EC11801:2017
|
Shielding material
|
aluminum foil
|
Insulation material
|
HDPE
|
T1A-568.2-D:2018
|
Ground wire
|
tinned copper wire
|
Insulation diameter
|
1.1±0.05mm
|
YDT1019-2013
|
|
Cat6 FTP | Transmission characteristics
Frequency (MHz)
|
Return loss
dB (Min)
|
Reduction (Max)
dB/100m
|
Near-end crosstalk
dB (Min)
|
Near-end crosstalk reduction
Power sum
dB (Min)
|
Equal level
Far-end crosstalk
dB (Min)
|
Equal level far-end crosstalk
Reduction power sum
dB (Min)
|
4
|
23.0
|
3.6
|
67.8
|
64.1
|
56.5
|
53.5
|
8
|
26.0
|
5.1
|
63.1
|
59.6
|
50.4
|
47.4
|
16
|
26.5
|
7.4
|
58.5
|
55.0
|
44.4
|
41.4
|
20
|
26.5
|
8.3
|
57.1
|
53.6
|
42.5
|
39.5
|
31.25
|
25.1
|
10.5
|
54.2
|
50.7
|
38.6
|
35.6
|
62.5
|
23.0
|
15.2
|
49.7
|
46.2
|
32.6
|
29.6
|
100
|
21.6
|
19.6
|
46.6
|
43.1
|
28.5
|
25.5
|
250
|
18.8
|
32.6
|
40.6
|
37.1
|
20.5
|
17.5
|
-
-
