Cat6 SFTP | Product Standards
AOPTKE is a 10-year reliable fiber optic equipment manufacturer. We can provide 5e, 6e, 7e Ethernet cables. We can customize the data cables according to customers' needs.Products comply with T1A-568.2-D:2018.
Cat6 SFTP | Product Features
-

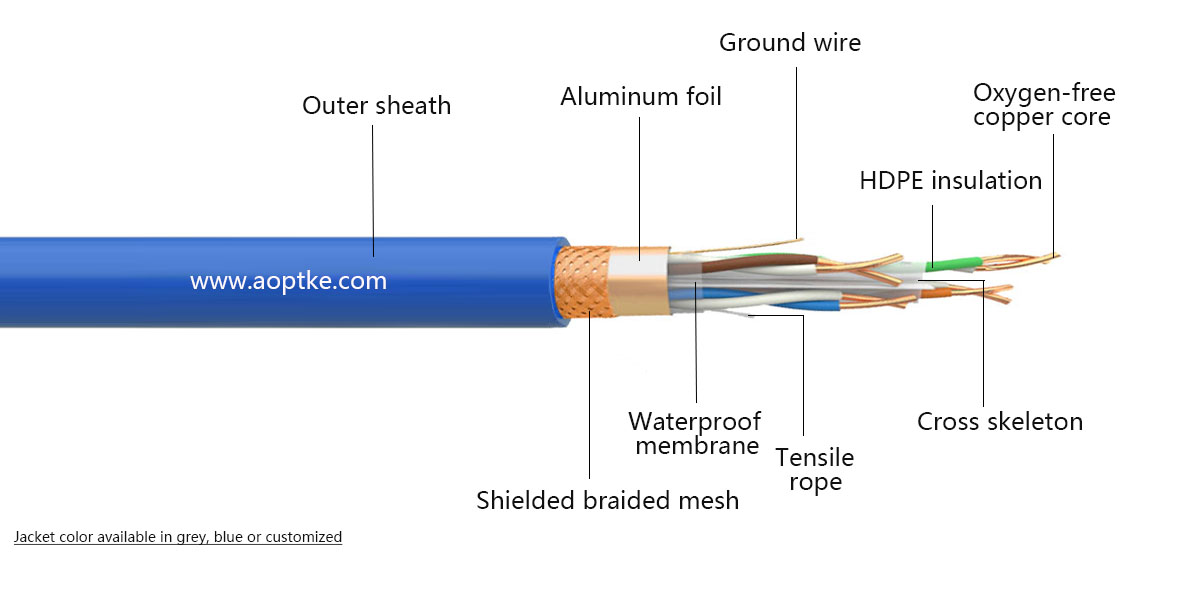

1. Double shielding and anti-interference
Aluminum foil layer + braided mesh double shielding structure, effectively blocks external electromagnetic interference (EMI), ensures pure and stable signals, and is suitable for high-density wiring and industrial environments.
2. Ultra-high-speed Gigabit transmission
Supports 10Gbps high-speed transmission and 250MHz bandwidth, worry-free network upgrades in the future.
3. Durable and reliable materials
High-purity oxygen-free copper conductor + wear-resistant PVC outer sheath, anti-oxidation and anti-stretching, with double-layer shielding design, long-term stable operation, and reduced signal loss.
4. Enterprise-level all-round scenarios
Compatible with PoE++ power supply (90W), monitoring systems and data centers, and has passed international certification (ISO/IEC), meeting the high standards of commercial, industrial and high-end home networks.
-

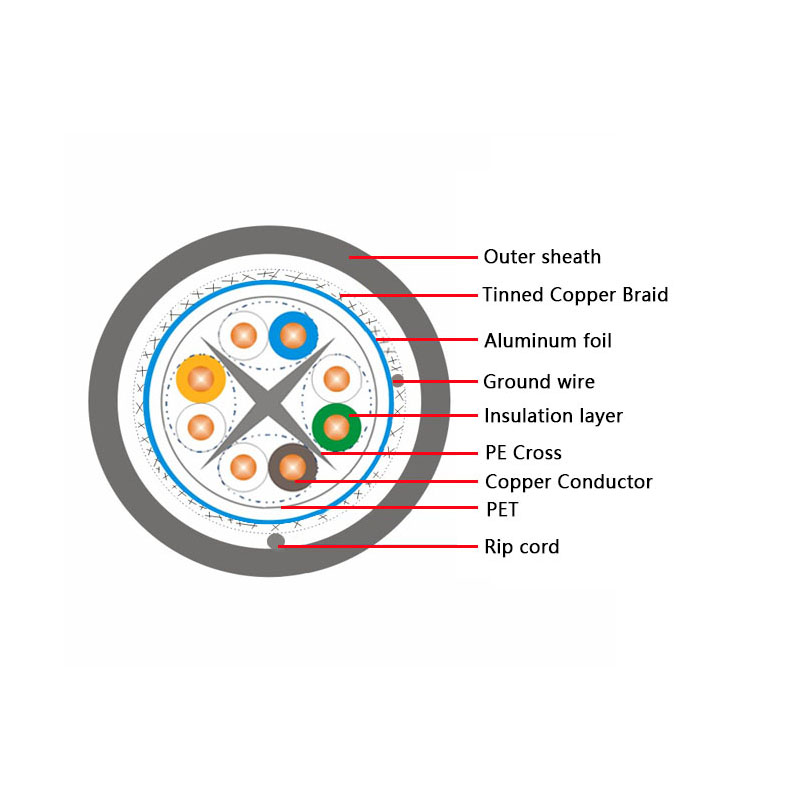

Cat6 SFTP | Physical parameters
Oxygen-free copper core (conductor)
|
Electrical characteristics
|
Sheath
|
Product Applications
|
Conductor material
|
single strand bare copper
|
DC resistance
|
≤9.52/100m
|
Sheath material
|
PVC, LSZH, PE
|
100 Base-Tx 100M Ethernet
|
Conductor diameter
|
0.57±0.02mm
|
Characteristic impedance
|
100±152(4-250MHz)
|
Sheath color
|
gray, bule,or customized
|
1000 Base-Tx Gigabit Ethernet
|
Conductor wire gauge
|
24AWG
|
Propagation phase delay
|
≤536ns/100m(250MHz)
|
Average thickness
|
≥0.5mm
|
2.5 GBse-Tx 2.5G Ethernet
|
|
Line pair DC resistance unbalance
|
≤2%
|
Sheath outer diameter
|
7.5±0.3mm
|
5 GBse-Tx 5G Ethernet
|
Insulation
|
Shielding
|
Product standards
|
|
Insulation material
|
HDPE
|
Shielding material
|
aluminum foil
|
IS0/IEC11801:2017
|
Insulation diameter
|
1.1±0.05mm
|
Ground wire
|
tinned copper wire
|
TlA-568.2-D2018
|
|
YD/T1019-2013
|
Cat6 SFTP | Transmission characteristics
Frequency (MHz)
|
Return loss
dB(Min)
|
Damping(Max)
dB/100m
|
Near-end crosstalk
dB(Min)
|
Near-end crosstalk attenuation
Power sum
dB(Min)
|
Equal level
Far-end crosstalk
dB(Min)
|
Equal level far-end crosstalk
Attenuation power sum
dB(Min)
|
4
|
24.5
|
3.6
|
67.8
|
64.1
|
56.5
|
53.5
|
8
|
26.0
|
5.1
|
63.1
|
59.6
|
50.4
|
47.4
|
16
|
26.5
|
7.4
|
58.5
|
55.0
|
44.4
|
41.4
|
20
|
26.5
|
8.3
|
57.1
|
53.6
|
42.5
|
39.5
|
31.25
|
25.1
|
10.5
|
54.2
|
50.7
|
38.6
|
35.6
|
62.5
|
23.0
|
15.2
|
49.7
|
46.2
|
32.6
|
29.6
|
100
|
21.6
|
19.6
|
46.6
|
43.1
|
28.5
|
25.5
|
250
|
18.8
|
32.6
|
40.6
|
37.1
|
20.5
|
17.5
|
 |
|
|
|
|
|
|
|
|
|
-
-
-
