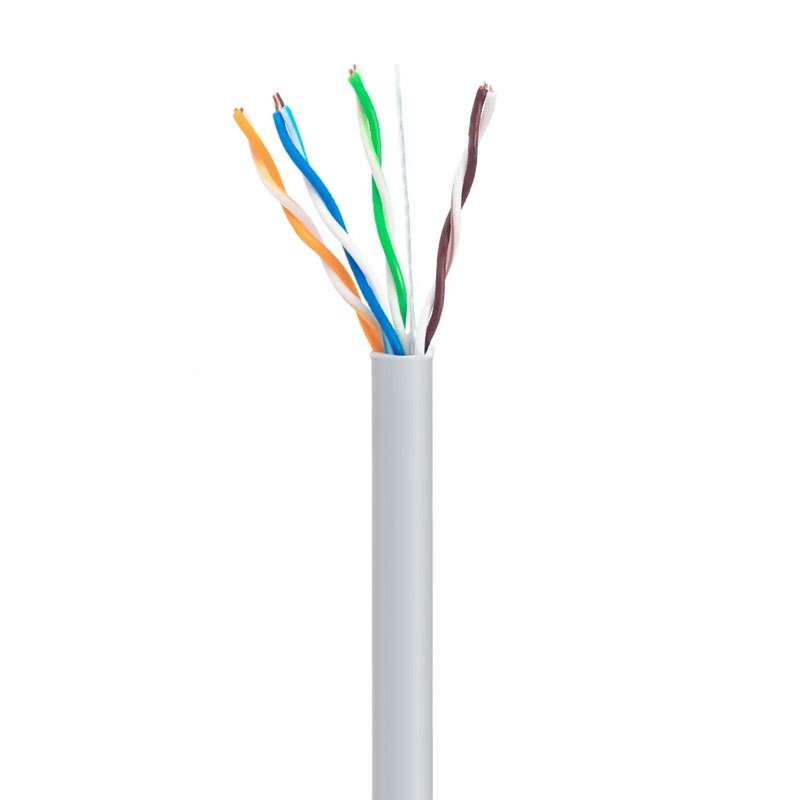

Cat5e 100Mbps Ethernet Cables

Cat5e 100Mbps Ethernet Cables

Short Description:

Category 5e Ethernet cable (Cat5e) supports Gigabit transmission (1000Mbps) and 100W PoE power supply. It adopts oxygen-free copper core twisted pair design to effectively reduce interference.




  • Model: CAT5e
  • Unit: 305m box/or customized
  • Application: 100M Ethernet network transmission

Product Detail

Product Tags

Cat5e | Product Standards

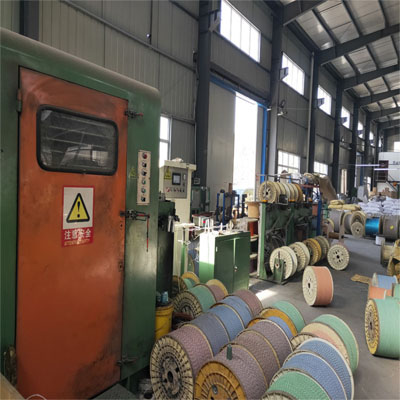

AOPTKE CABEL. is a 10-year reliable fiber optic equipment manufacturer. We can provide 5e, 6e, 7e Ethernet Cables. We can customize data cables according to customer needs.Products comply with RoHS 2.0, European Directive 2011/65/EU RoHS Compliance.


  • Cat5e | Product Features

  • 1.High-Speed ​​Connection: This Super Cat 5e cable ensures fast and reliable digital communication with its high-speed capabilities, making it ideal for heavy network usage.

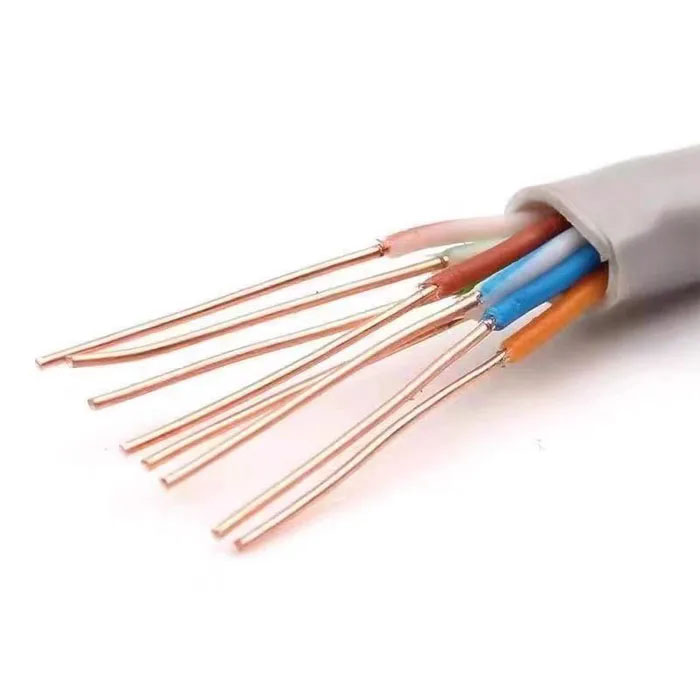

    2.Durable Construction: The cable features rugged PVC+LDPE/ LD+PE jacket material and 23/25AWG diameter, providing excellent durability and abrasion resistance.

    3.Versatile Color Options: Available in a variety of colors, including black, white, gray, and blue, to suit a variety of office or home network configurations.

    4.Excellent Compatibility: Suitable for a wide range of applications, including networking, and designed for high-speed digital communication systems.

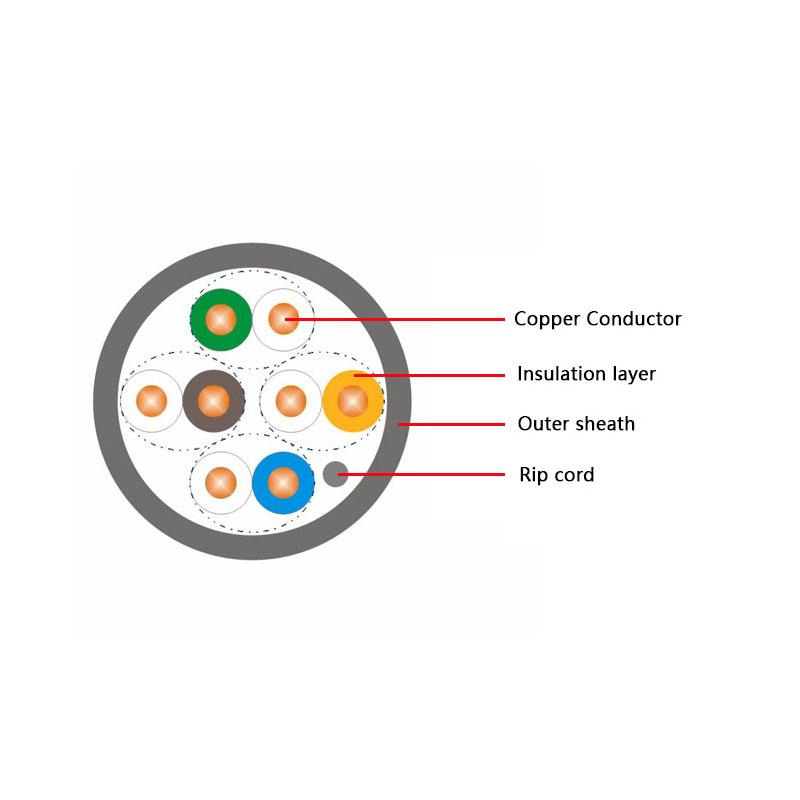

    5.Long-Lasting Performance: With 8 conductors and 6 twisted pairs, this cable ensures long-lasting performance and stable connections for heavy network usage, as per the user's requirements.

    Cat5e | Main technical parameters

    Contents

    Technical indicators

    Maximum resistance unbalance

    2%

    Insulation resistance

    >5000MΩ·km

    Characteristic impedance

    4-100MHz    100±15Ω

    Delay Difference

    ≤ 45ns/100m

    Operating temperature

    Installation temperature: -20℃ ~ +60℃,

    Working temperature: -40℃ ~ +70℃

    Cold bending: -20℃ × 4h without cracking

    Bending radius

    Not less than 8 times the outer diameter of the twisted pair

    Maximum pulling force

    400N

    Maximum conductor resistance

    75Ω/km(23AWG，LSZH-1、CM)

    89Ω/km(23AWG，LSZH-3、PVC)

    93.8Ω/km(24AWG，LSZH-1、CM)

    Insulation Materials

    HDPE

    Minimum insulation resistance

    100MΩ/km

    Dielectric strength

    500Vac/1min

    Package

    305m/box

    Cat5e | Transmission characteristics

    Frequency (MHz)

    Return lossdB(Min)

    Damping(Max)dB/100m

    Near-end crosstalkdB(Min)

    Near-series attenuationPower sumdB(Min)

    Equal levelFar end crosstalkdB(Min)

    Equal level long-range stringReduction power sumdB(Min)

    4

    23.0

    4.1

    56.3

    53.3

    52.0

    49.0

    8

    24.5

    5.8

    51.8

    48.8

    45.9

    42.9

    16

    25.0

    8.2

    47.2

    44.2

    39.9

    36.9

    20

    25.0

    9.3

    45.8

    42.8

    38.0

    35.0

    31.25

    23.6

    11.7

    42.9

    39.9

    34.1

    31.1

    62.5

    21.5

    17.0

    38.4

    35.4

    28.1

    25.1

    100

    20.1

    22.0

    35.3

    32.3

    24.0

    21.0

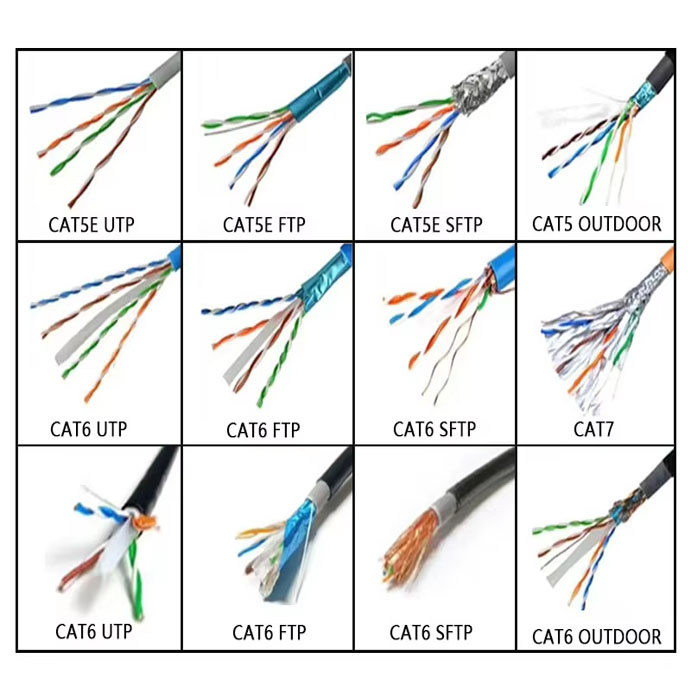

    Multiple styles for you to choose from

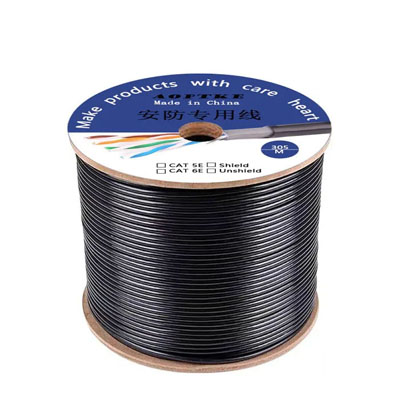

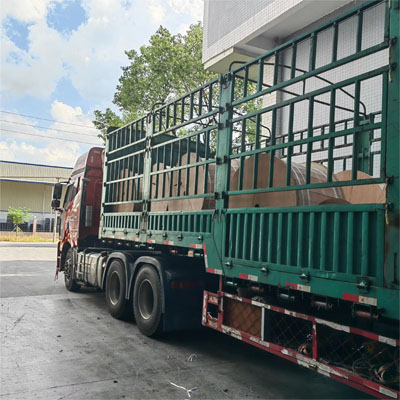

    Cat5e | Packaging and delivery
