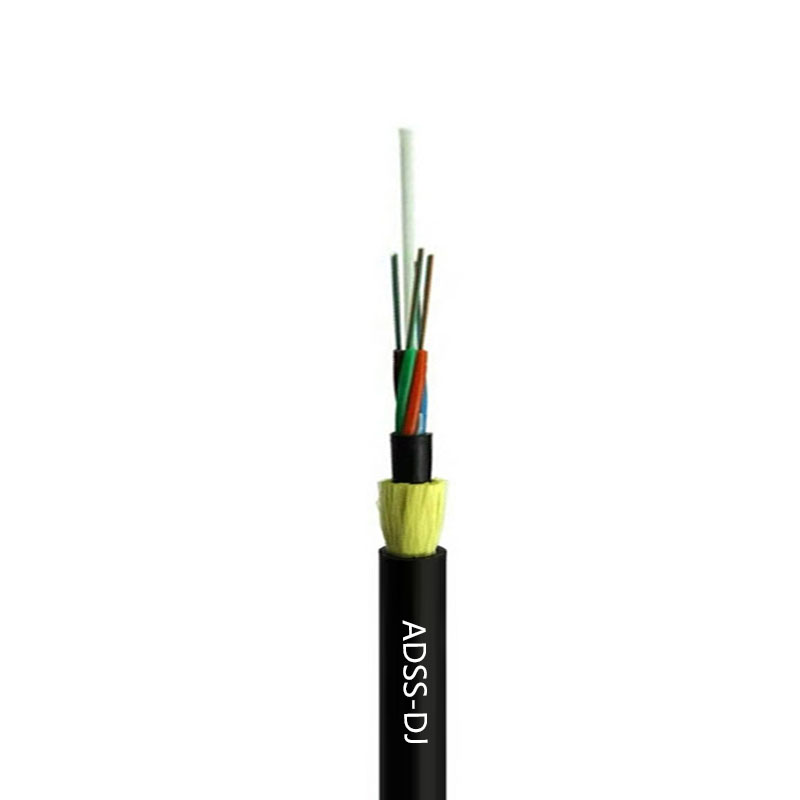

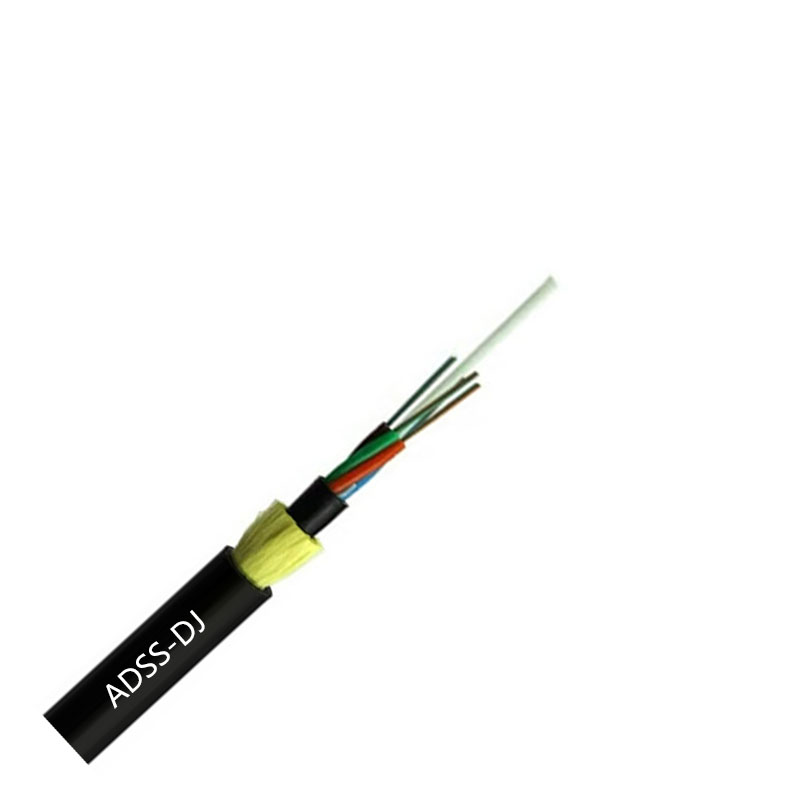

ADSS double sheathed all dielectric self-supporting optical cable

ADSS double sheathed all dielectric self-supporting optical cable

Short Description:

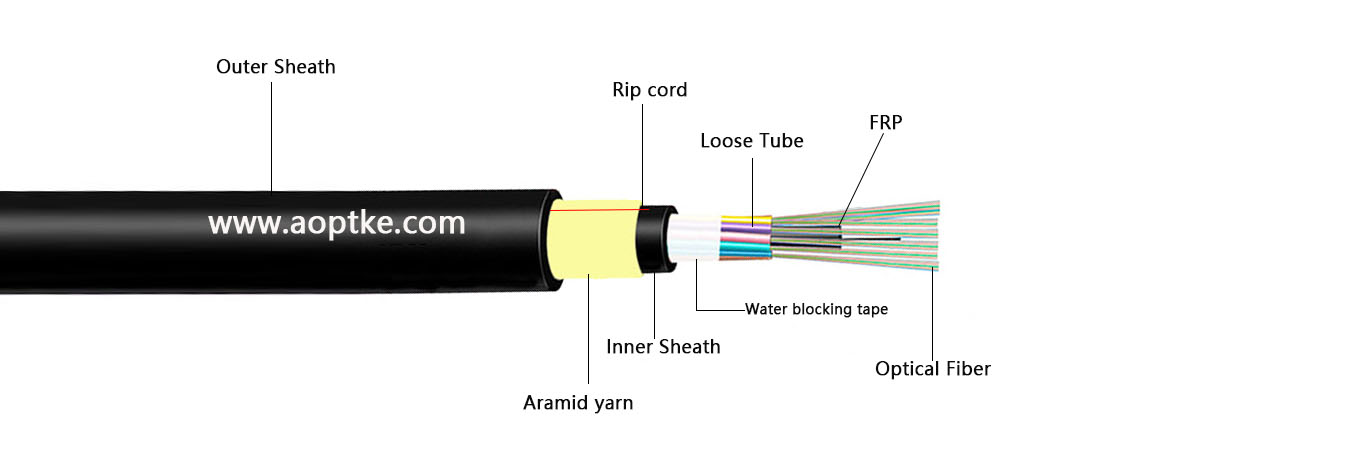

ADSS double jacket optical cable adopts an enhanced loose tube layer twisted structure, and the ultra-low loss 250µm optical fiber is precisely embedded in a high-modulus polyester loose tube. The tube is filled with a self-developed gel-like fully water-blocking compound to achieve molecular-level protection of the optical fiber. The loose tube and the high-strength non-metallic reinforcing core (FRP) are formed into an ultra-dense cable core through S-Z twisting technology, and nano-scale water-blocking paste is injected into the gap between the cable cores to form a triple waterproof barrier. The innovative double-layer sheath design is adopted: the inner layer is a compression-resistant high-density polyethylene (HDPE) sheath, and the millimeter-level thickness control is achieved through a vacuum sizing process; the outer layer is a composite electrical tracking-resistant AT or PE polyethylene sheath, and the double sheath molecular chains are cross-linked through a special co-extrusion technology to form a composite protective layer that is resistant to ultraviolet rays and electrical corrosion.

Model: DJ--ADSS
Unit: 1000/2000/3000M or customized
Application: Power, telecommunications, overhead
Delivery time: 3-15 days

Product Detail

Product Tags

ADSSS double sheath | Product Standards

AOPTKE’s ADSS structure is IEC 60794-1-20 certified and can maintain stable performance in extreme environments ranging from -40°C to +70°C.If you have special requirements, please contact our sales and technical team. We also support OEM.

ADSS double sheath | Product Features

1.Double-layer sheath structure, especially suitable for special environments such as chemical plant areas and coastal high salt fog areas.

2.Independently laid without relying on transmission lines, easy construction and maintenance, closely integrated with the power grid structure, and low construction cost.

3.The loose tube material itself has good hydrolysis resistance.

4.Slow to temperature changes, the sag remains basically unchanged when the temperature changes, and has a certain pressure resistance, and can withstand the larger grip of the tension clamp.

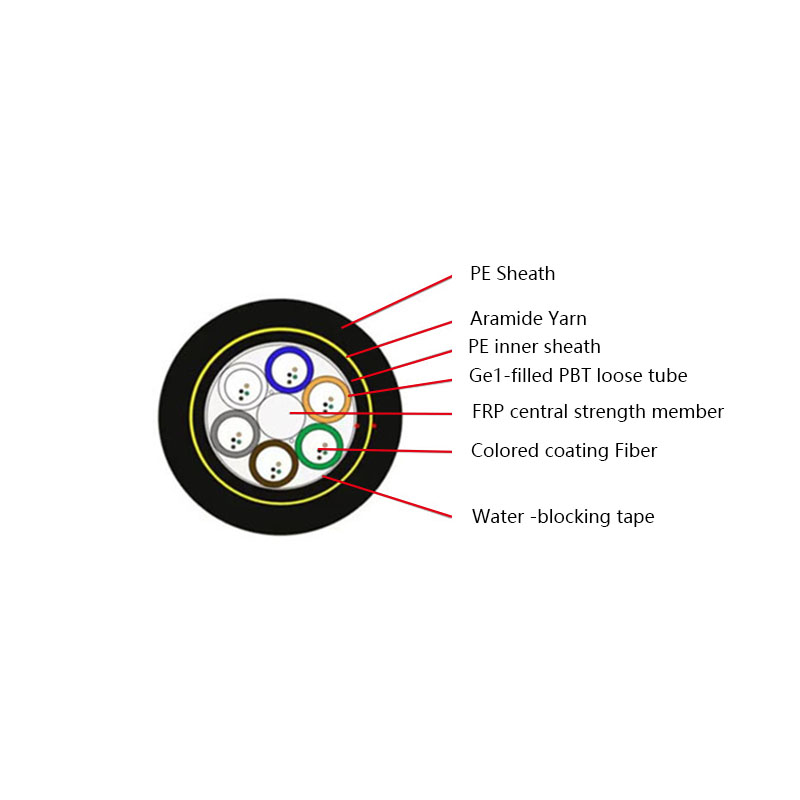

ADSSS double sheath | Structure Parameters

Fiber Count	Span (Meter)	Diameter (MM)	MAT (KN)	Ice Cover (MM)	Wind Speed (M/S)
6-72 fibers	200	12.2	3.77	0	25
6-72 fibers	300	12.3	5.33	0	25
6-72 fibers	400	12.5	7.06	0	25
6-72 fibers	500	12.9	9.02	0	25
6-72 fibers	600	13.0	10.5	0	25
6-72 fibers	700	13.2	11.97	0	25
6-72 fibers	800	13.4	13.94	0	25
6-72 fibers	900	13.5	15.41	0	25
6-72 fibers	1000	13.7	17.37	0	25
6-72 fibers	1500	15.5	25.8	0	25

Up to 288 fibers.

ADSSS double sheath | Optical characteristics

Fiber Type	Attenuation (+20℃)				bandwidth		Numerical aperture	Cable cut-off wavelength
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cable cut-off wavelength
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.652	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125μm	≤3.0dB/km	≤1.0dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125μm	≤3.3dB/km	≤1.0dB/km	---	---	≥200MHz·km	0.200±0.015 NA	0.275±0.015 NA	---

Storage and usage temperature: -40 ℃ to+70 ℃.

ADSSS double sheath | Packaging and delivery

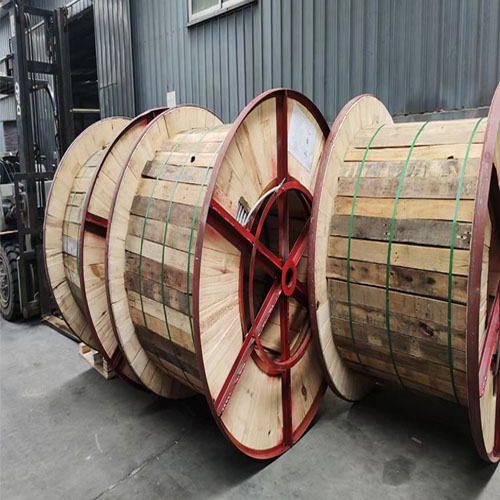

Length & Packing	Packing	Size	Net Weight	Gross Weight
2KM	Fumigate Wooden Drum	900750900MM	156KG	220KG
3KM	Fumigate Wooden Drum	10006801000MM	240KG	280KG
4KM	Fumigate Wooden Drum	10907501090MM	300KG	368KG
5KM	Fumigate Wooden Drum	12907201290MM	400KG	480KG

The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
