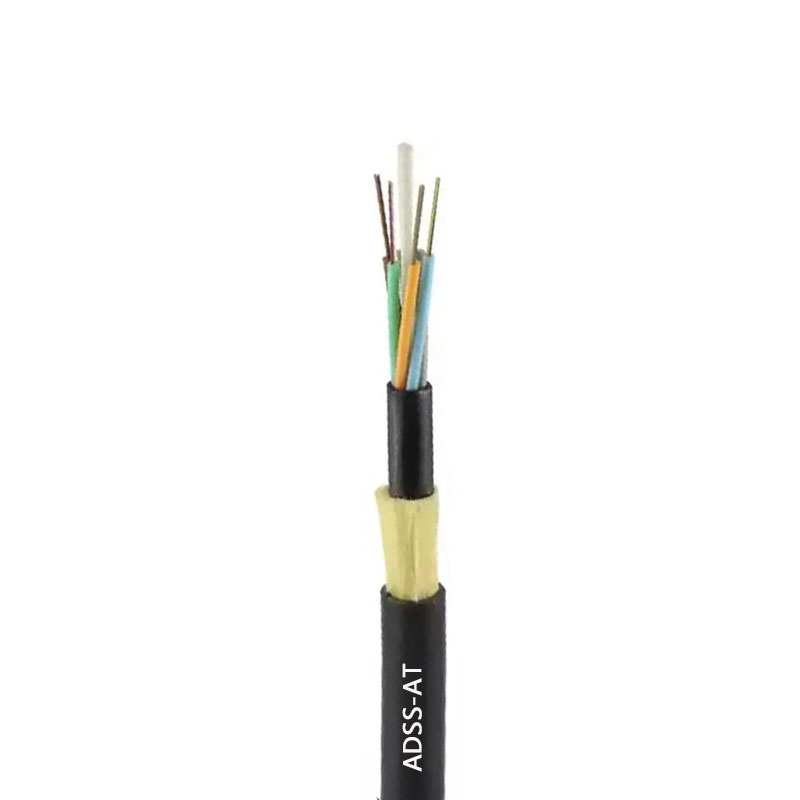

ADSS CABLE-AT | Product Standards
AT sheath is made of UV-resistant modified polyethylene, which has strong weather resistance and can adapt to extreme environments of -40℃~70℃, with a span of up to 1500 meters. The metal-free design reduces installation risks and is widely used in power grid communications, railways and long-distance backbone networks.All AOPTKE CABLE products comply with EEE 1222 & IEEE 1138, RoHS standards.
ADSS CABLE-AT | Product Features
·Excellent anti-tracking performance
The AT sheath adopts anti-tracking modified PE material, which effectively resists tracking corrosion and arc damage under ≤12kV electric field, ensuring long-term stable operation near high-voltage lines.
· All-non-metallic anti-interference structure
No metal design (FRP reinforced core + aramid fiber), insulation and anti-electromagnetic interference, avoids the risk of lightning strikes, can be directly installed on power poles and towers, saving deployment costs.
·Anti-UV & wide temperature and weather resistance
The outer AT sheath adds anti-UV components to adapt to extreme environments of -40℃~70℃, has strong anti-aging performance, and a span of 1500 meters, which is suitable for overhead laying in complex climate areas.

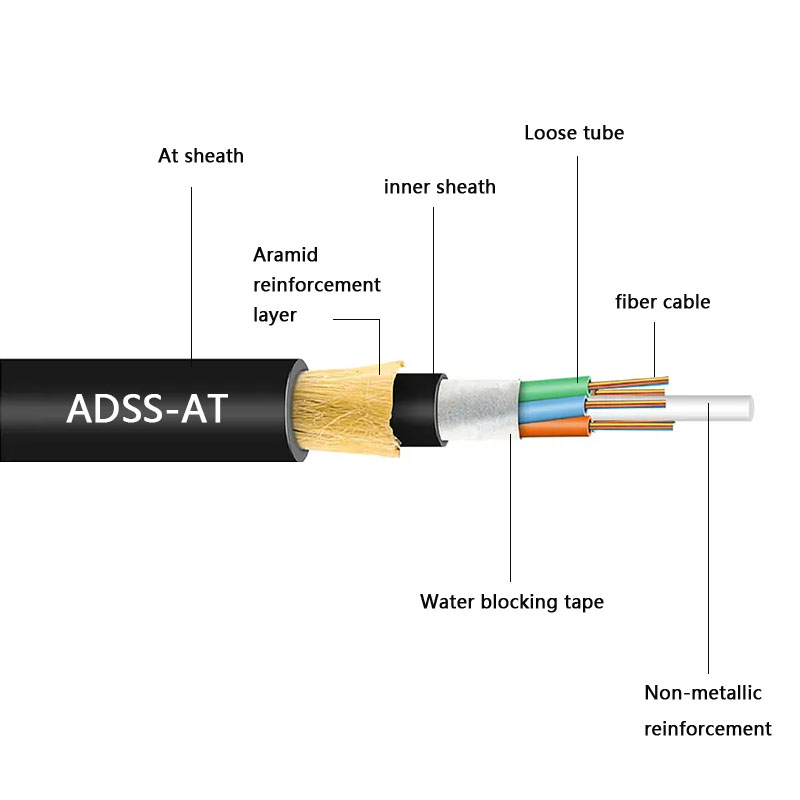

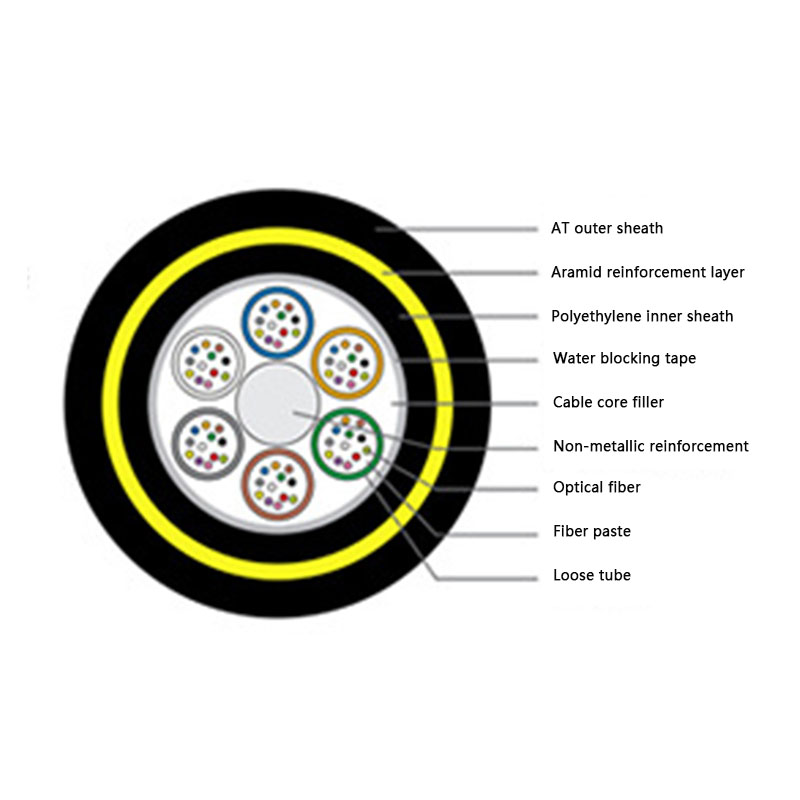

ADSS CABLE-AT | Structure Parameters
100m span AT sheath material 110Kv or above (8 cores - 24 cores)
Structural parameters
|
|
Central reinforcement FRP
|
Diameter
|
2.1mm
|
Loose tube (filled with fiber paste)
|
Outer diameter
|
2.0mm
|
Inner tube
|
Thickness
|
0.9mm
|
Mechanical reinforcement layer Aramid
|
Area
|
9.3mm²
|
Outer sheath
|
Thickness
|
1.70mm
|
Technical Parameters
|
Outer sheath type
|
Tracking resistant AT sheath material
|
Cable outer diameter
|
117mm²
|
Fiber Type
|
G.652
|
Cable weight
|
132kg/km
|
Rated tensile strength (RTS)
|
15Kn
|
Maximum Allowable Working Tension (MAT)
|
6Kn
|
Annual average operating tension (EDS)
|
3.7Kn
|
Anti-electrical corrosion measures
|
The outer sheath of the optical cable is made of chemical resistant electrical sheath material 6081, which has good resistance to electrical corrosion.
|
Young's touch
|
13.0knmm²
|
Compressive strength
|
Long term 1100 n/100mm
|
Applicable temperature range
|
Lay -15+60℃
|
Short term 2200 n/100mm
|
Transport and operation -40” +70℃
|
Minimum bending radius
|
Run 220mm
|
Fiber excess length
|
c0.7%
|
Lay 360mm
|
