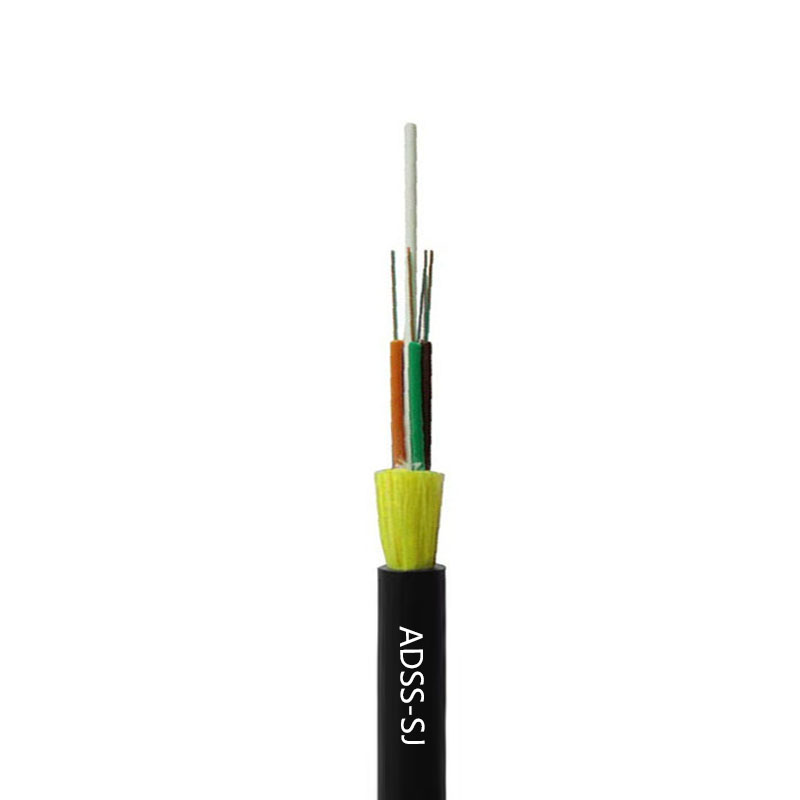

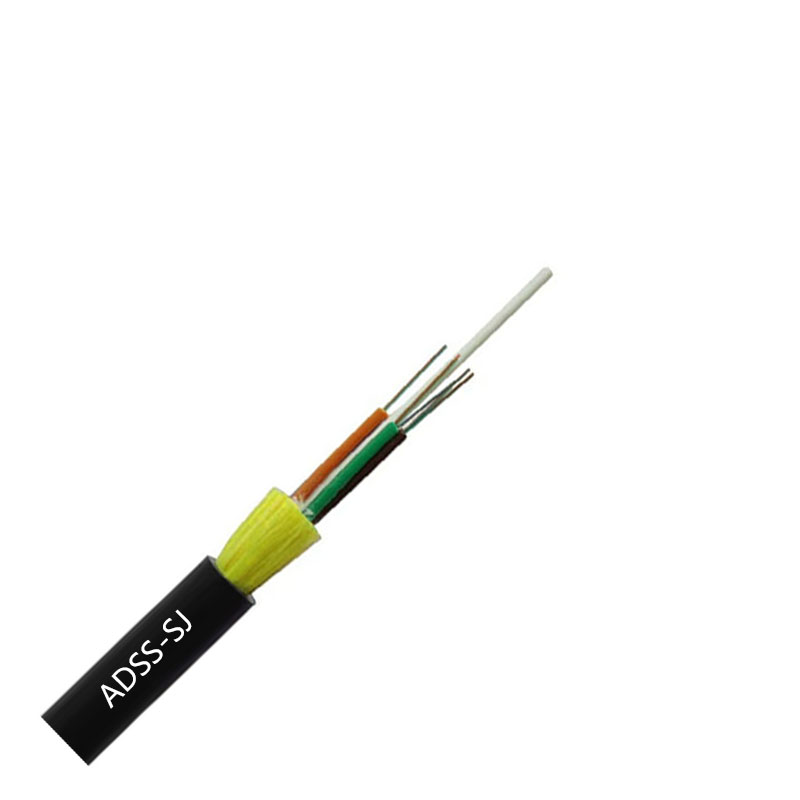

ADSSS single sheath | Product Standards
AOPTKE's ADSS optical cables comply with the IEEE 1222 technical standard and also meet the IEC 60794-1 standard.If you have special requirements, please contact our sales and technical team. We also support OEM.
ADSSS single sheath | Product Features
-
-
1.Lightweight and small cable diameter, reducing the impact of ice and wind and the load on the tower and supports.
2.Adopting AT sheath, excellent anti-tracking performance.
3.Excellent tensile and temperature performance.
4.Can be erected without power failure.
5.Large span, the maximum span exceeds 1,000 meters.
6.Expected life is more than 30 years.
-

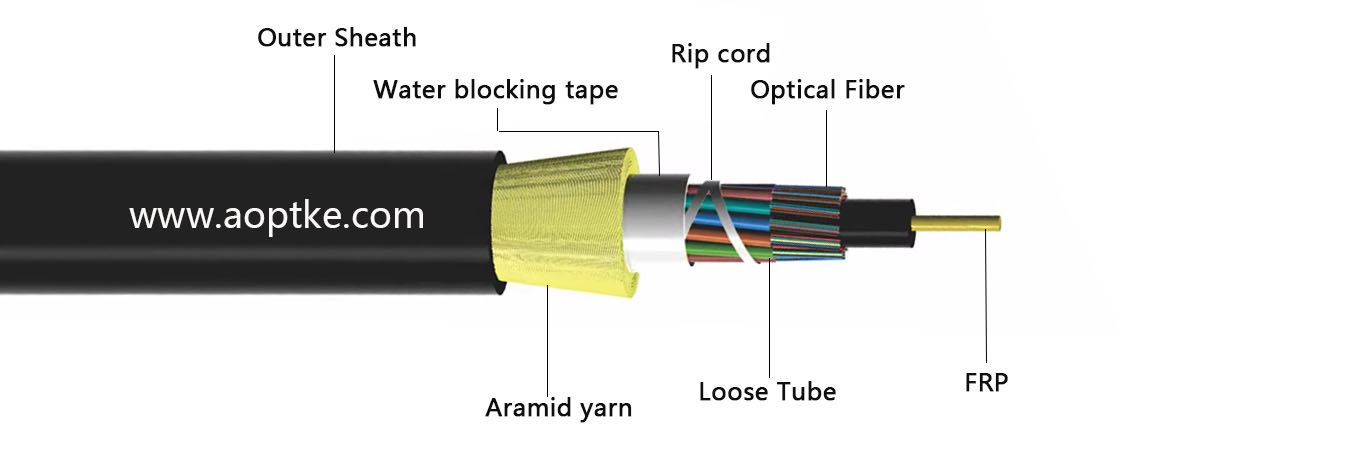

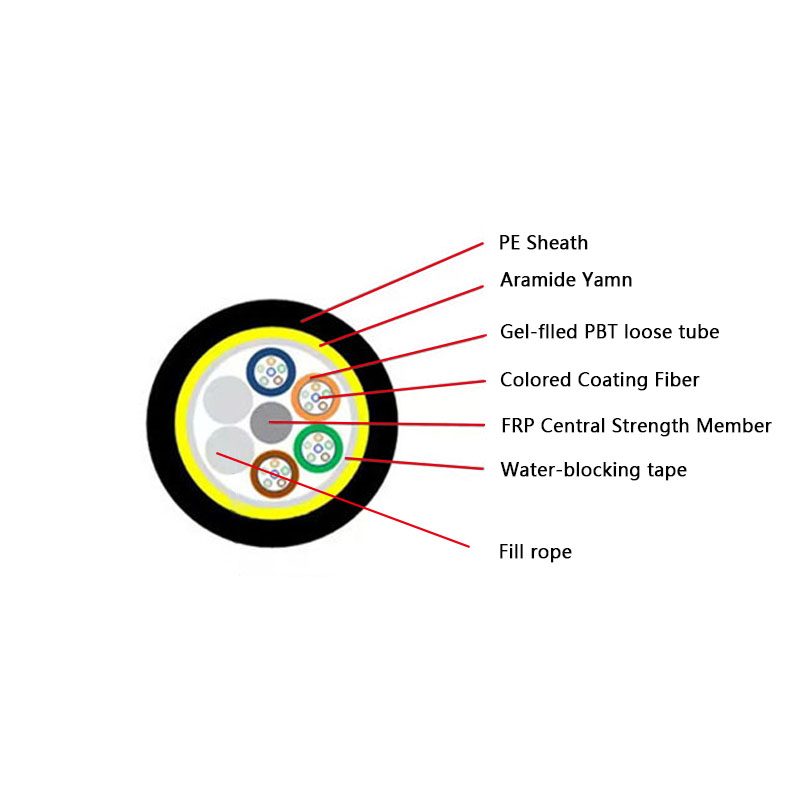

ADSSS single sheath | Structure Parameters
Reference outer diameter (mm)
|
Reference weight (kg/km)
|
Recommended daily maximum working tension (kN)
|
Maximum allowable working tension (kN)
|
Breaking strength (kN)
|
Tensile element cross-sectional area (mm2)
|
Elastic modulus (kN/mm2)
|
Thermal expansion coefficient and elastic modulus (kN/mm2) x10-6/K
|
PE outer sheath
|
AT outer sheath
|
11.8
|
117
|
124
|
1.5
|
4
|
10
|
4.6
|
7.6
|
1.8
|
12.0
|
121
|
129
|
2.25
|
6
|
15
|
7.6
|
8.3
|
1.5
|
12.3
|
126
|
134
|
3.0
|
8
|
20
|
10.35
|
9.45
|
1.3
|
12.6
|
133
|
141
|
3.05
|
10
|
24
|
13.8
|
10.8
|
1.2
|
12.8
|
138
|
145
|
4.5
|
12
|
30
|
14.3
|
11.8
|
1.0
|
13.1
|
145
|
153
|
5.4
|
15
|
36
|
18.4
|
13.6
|
0.9
|
13.5
|
155
|
163
|
6.75
|
18
|
45
|
22.0
|
16.4
|
0.6
|
13.8
|
163
|
171
|
7.95
|
22
|
53
|
26.4
|
18.0
|
0.3
|
14.4
|
177
|
186
|
9.0
|
26
|
60
|
32.2
|
19.1
|
0.1
|
14.6
|
182
|
191
|
10.5
|
28
|
70
|
33.0
|
19.6
|
0.1
|
14.8
|
195
|
204
|
12.75
|
34
|
85
|
40.0
|
20.1
|
|
ADSSS single sheath | Optical characteristics
Fiber Type
|
Attenuation
(+20℃)
|
bandwidth
|
Numerical aperture
|
Cable cut-off wavelength
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
G.652
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
≤1260nm
|
G.652
|
---
|
---
|
≤0.40dB/km
|
≤0.23dB/km
|
---
|
---
|
---
|
≤1450nm
|
50/125μm
|
≤3.0dB/km
|
≤1.0dB/km
|
---
|
---
|
≥500MHz·km
|
≥500MHz·km
|
0.200±0.015 NA
|
---
|
62.5/125μm
|
≤3.3dB/km
|
≤1.0dB/km
|
---
|
---
|
≥200MHz·km
|
0.200±0.015 NA
|
0.275±0.015 NA
|
---
|
Storage and usage temperature: -40 ℃ to+70 ℃.
ADSSS single sheath | Packaging and delivery
Length & Packing
|
Packing
|
Size
|
Net Weight
|
Gross Weight
|
2KM
|
Fumigate Wooden Drum
|
900*750*900MM
|
156KG
|
220KG
|
3KM
|
Fumigate Wooden Drum
|
1000*680*1000MM
|
240KG
|
280KG
|
4KM
|
Fumigate Wooden Drum
|
1090*750*1090MM
|
300KG
|
368KG
|
5KM
|
Fumigate Wooden Drum
|
1290*720*1290MM
|
400KG
|
480KG
|
-
The reference cable diameter is 10.0MM and the span is 100M. For specific specifications, please ask the sales department.
