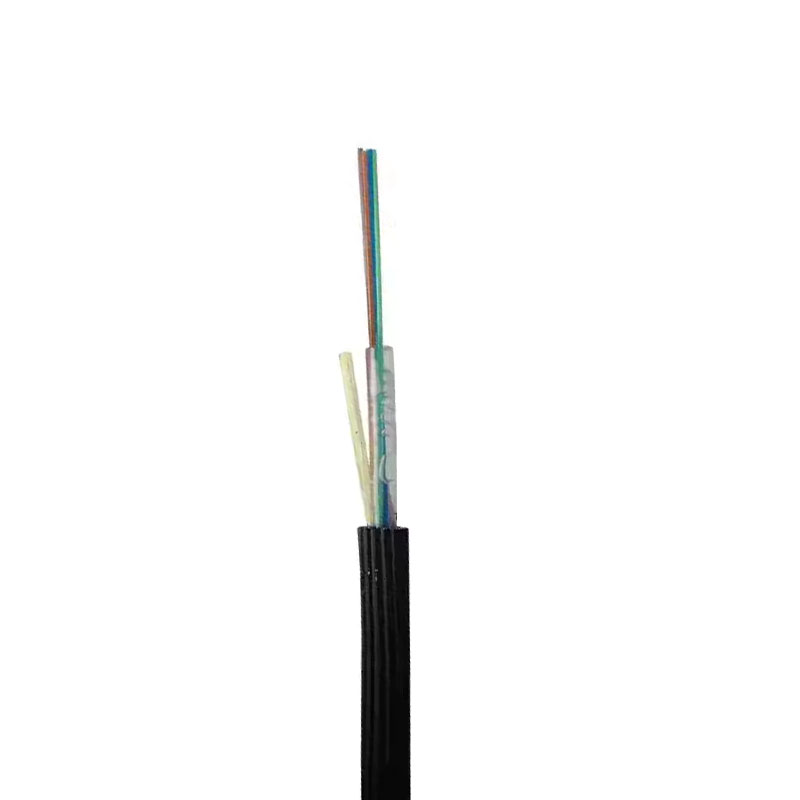

GCYFXTY CABLE | Product Standards
GCYFXTY CABLE utilizes micro-duct resources and is particularly suitable for backbone networks, access networks and fiber-to-the-home. The product complies with IEC 60794-1 standards.
GCYFXTY CABLE | Product Features
• All-non-metallic structure
The design without metal components avoids electromagnetic interference (EMI) and radio frequency interference (RFI), and is suitable for sensitive scenarios such as substations and hospitals.
• Anti-tube retraction technology
The precision-molded tight-tube buffer layer, combined with low thermal expansion coefficient materials, ensures the stability of optical fiber under temperature changes from -30℃ to 70℃.
• High-strength aramid reinforcement
The longitudinal aramid yarn has a tensile strength of ≥1000N, which meets the mechanical requirements of overhead/pipeline laying.
• Double waterproof protection
The loose tube is filled with waterproof gel, and the outer sheath is seamlessly connected, passing the industry standard immersion test (1m water depth/24h).
• Flexible and easy to construct
The minimum bending radius is 10 times the cable diameter (static) and 20 times the cable diameter (dynamic), which is suitable for wiring in small spaces.
• Air-blowing laying optimization
The compact cable body design and low friction coefficient sheath on the surface increase the air-blowing efficiency by more than 30%.

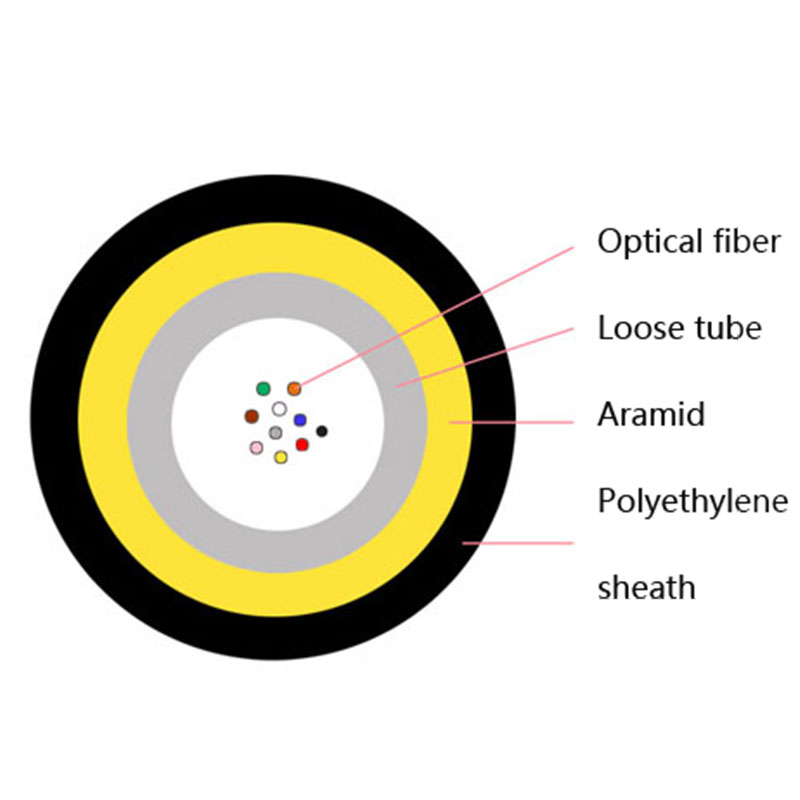

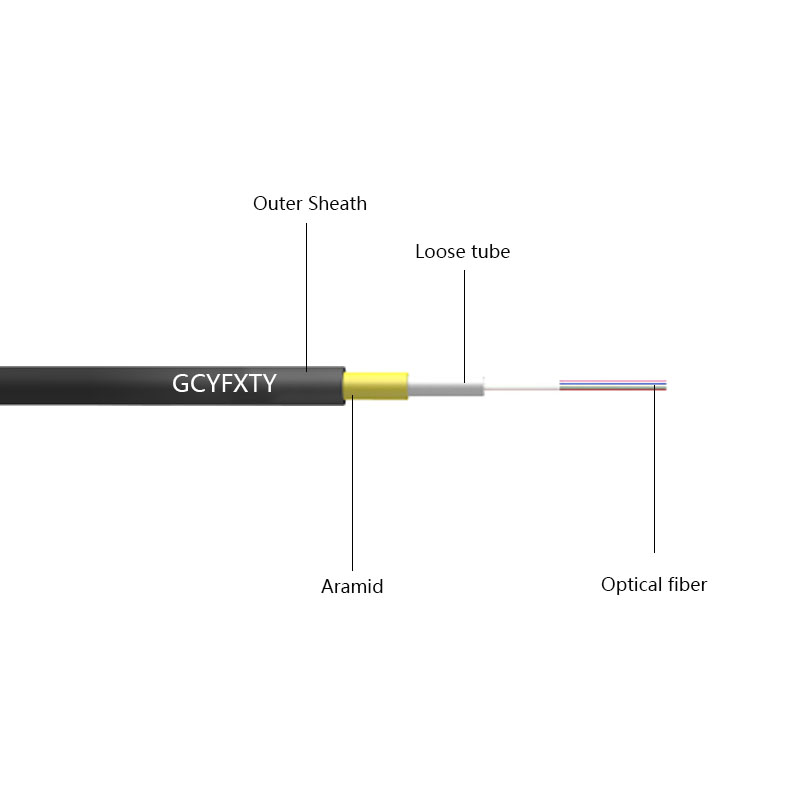

GCYFXTY CABLE | Structure Parameters
Optical cable model
(incremental by 2 fibers)
|
Number of optical fibers
|
Optical cable diameter
|
Optical cable reference weight
(kg/km)
|
Allowable tensile force
Long-term/short-term
(N)
|
Allowable crushing force
Long-term/short-term
(N/100mm)
|
Bending radius
Static/dynamic
(mm)
|
GCYFXTY 2~12Xn
|
2~12
|
3.5±0.3
|
12
|
60/150
|
150/450
|
10D/20D
|
GCYFXTY- 14 ~24Xn
|
14~24
|
4.4±0.3
|
15
|
60/150
|
150/450
|
10D/20D
|
Storage/operating temperature: -30℃ to +70℃.
GCYFXTY CABLE | Optical properties
Fiber Type
|
Attenuation
(+20℃)
|
Bandwidth
|
Numerical aperture
|
Optical cable cutoff wavelength
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
G.652
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
≤1260nm
|
G.657
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
≤1260nm
|
50/125µm
|
≤3.3dB/km
|
≤1.2dB/km
|
---
|
---
|
≥500MHz·km
|
≥500MHz·km
|
0.200±0.015 NA
|
---
|
62.5/125µm
|
≤3.5dB/km
|
≤1.2dB/km
|
---
|
---
|
≥200MHz·km
|
≥500MHz·km
|
0.275±0.015 NA
|
---
|
GCYFXTY CABLE | Packaging and delivery

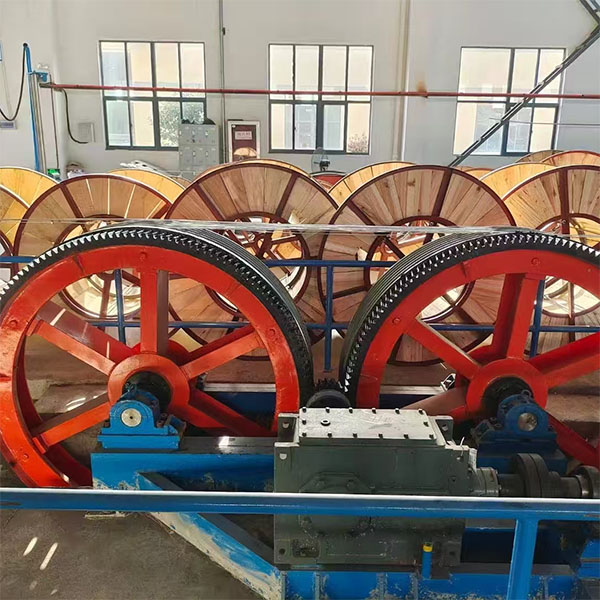

AOPTKE provides full-scenario optical cable packaging customization services, supporting brand logos (LOGO), operation guides and safety labels to be printed directly on reels and cartons to ensure product traceability and brand consistency. Suitable for wooden reels (environmentally friendly FSC certification) or galvanized iron reels (IP55 protection), meeting differentiated protection needs from short-distance transportation to cross-border shipping.
For global project deployment, we optimize container loading solutions: 20-foot/40-foot standard cabinets are flexible to ensure zero damage to goods.
