ACAR CABLE | Product Standards
Used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity than ACSR.
ACAR CABLE | Product Features

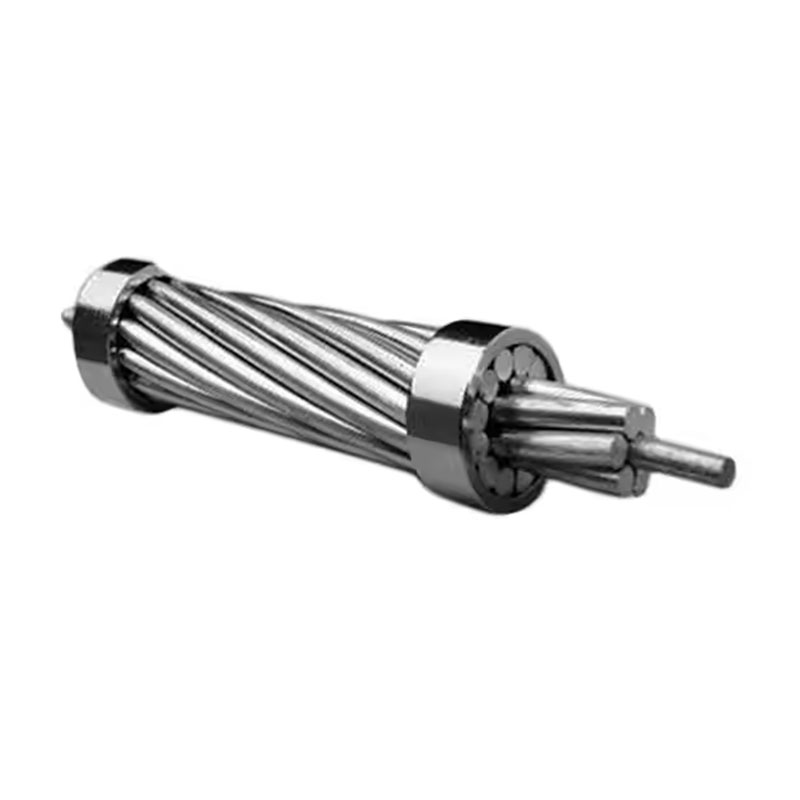

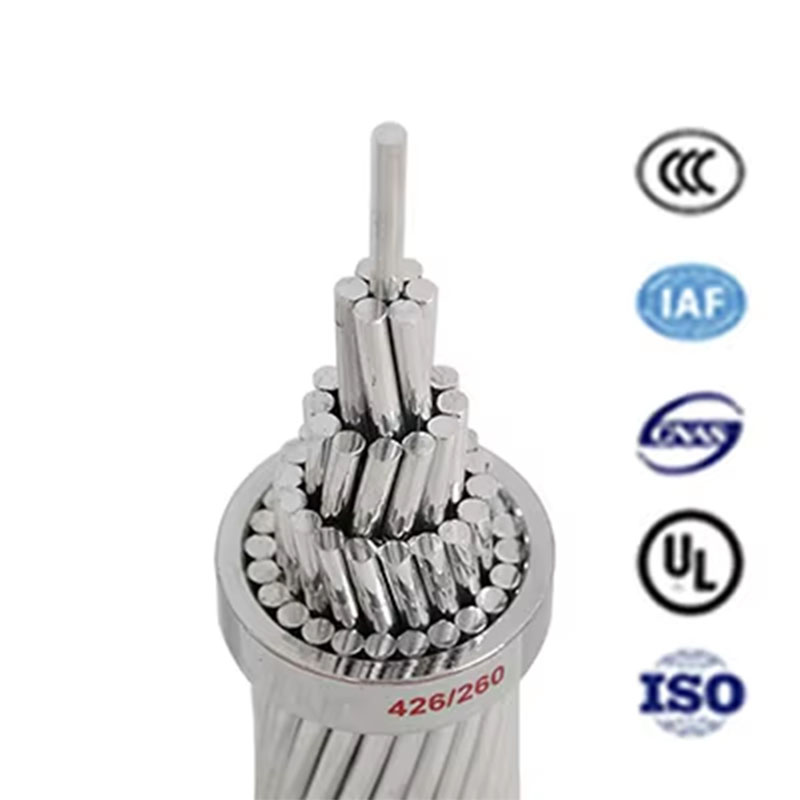

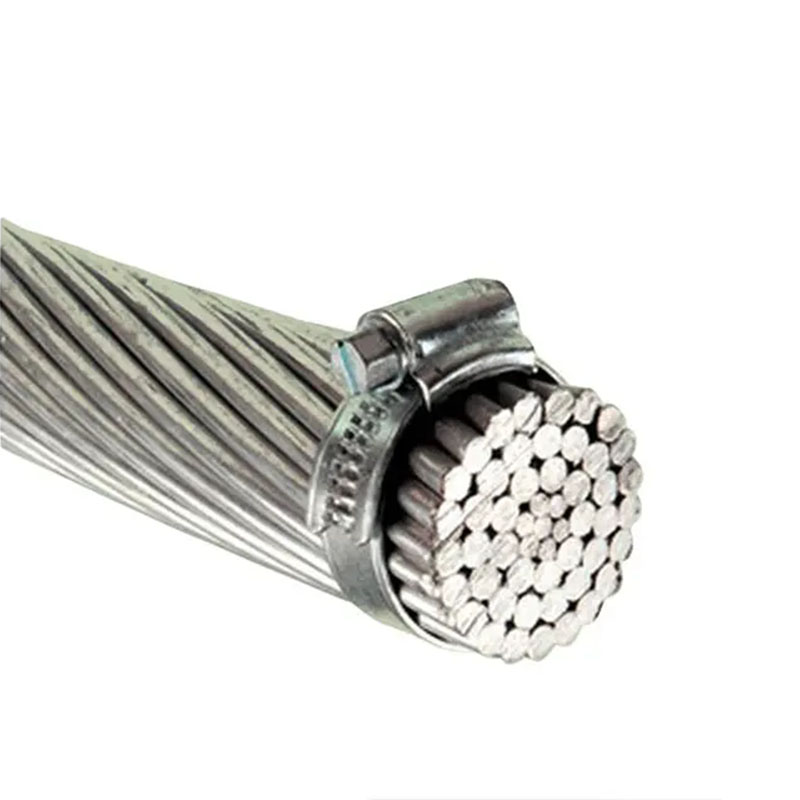

1.1350 H-19 wires concentrically stranded around a 6201-T81 aluminum alloy core.
2.Some designs have 1350 aluminum wires and 6201 alloy wires intercalated in the same layer.
3.Aluminum wire / Alloy Core Strands: 4/3, 12/7, 18/19, 30/7, 54/7, 42/19, 24/37, 54/37, 72/19.
ACAR CABLE | Structure Parameters
ASTM CONDUCTOR SIZES
|
ASTM CONDUCTOR SIZES
|
Stranding
|
Outside
Diameter
mm²
|
Area
mm²
|
Wire
Diameter
mm²
|
Overall
Diameter of
Conductor
mm²
|
Linear
Weight
Kg/km
|
Rated strength (kN)
|
Maximum DC resistance at 20°C (Ω/km)
|
AWG or Kcmil
|
Cr055 Section
mm²
|
1350-H19
|
6201-TB
|
2000
|
1.5713
|
54×0.1811
|
7×0.1811
|
1.630
|
1013
|
4.60
|
41.40
|
2800
|
16830
|
0.029
|
2000
|
1.5713
|
48×0.1811
|
13×0.1811
|
1.630
|
1013
|
4.60
|
41.40
|
2800
|
18030
|
0.0295
|
2000
|
1.5713
|
42×0.1811
|
19×0.1811
|
1.630
|
1013
|
4.60
|
41.40
|
2800
|
19540
|
0.030
|
2000
|
1.5713
|
33×0.1811
|
28×0.1811
|
1.630
|
1013
|
4.60
|
41.40
|
2800
|
21440
|
0.0305
|
2000
|
1.5700
|
72x0.1482
|
19X0.1482
|
1.630
|
1013
|
3.76
|
41.40
|
2795
|
18210
|
0.0295
|
2000
|
1.5700
|
63x0.1482
|
28X0.1482
|
1.630
|
1013
|
3.76
|
41.40
|
2795
|
19275
|
0.0300
|
2000
|
1.5700
|
54x0.1482
|
37X0.1482
|
1.630
|
1013
|
3.76
|
41.40
|
2795
|
20695
|
0.0305
|
2250
|
1.7660
|
72×0.1572
|
19×0.1572
|
1.729
|
1140
|
3.99
|
43.90
|
3175
|
20200
|
0.0265
|
2250
|
1.7660
|
63×0.1572
|
28×0.1572
|
1.729
|
1140
|
3.99
|
43.90
|
3175
|
21450
|
0.0267
|
2250
|
1.7660
|
54×0.1572
|
37×0.1572
|
1.729
|
1140
|
3.99
|
43.90
|
3175
|
23050
|
0.0270
|
2500
|
1.9620
|
72×0.1657
|
19×0.1657
|
1.823
|
1267
|
4.21
|
46.30
|
3530
|
22470
|
0.0230
|
2500
|
1.9620
|
63×0.1657
|
28×0.1657
|
1.823
|
1267
|
4.21
|
46.30
|
3530
|
23850
|
0.0240
|
2500
|
1.9620
|
54×0.1657
|
37×0.1657
|
1.823
|
1267
|
4.21
|
46.30
|
3530
|
25625
|
0.0245
|
2750
|
2.1590
|
72X0.1738
|
19×0.1738
|
1.912
|
1393
|
4.41
|
48.55
|
3880
|
24690
|
0.0215
|
2750
|
2.1590
|
63X0.1738
|
28×0.1738
|
1.912
|
1393
|
4.41
|
48.55
|
3880
|
26200
|
0.0220
|
2750
|
2.1590
|
54X0.1738
|
37×0.1738
|
1.912
|
1393
|
4.41
|
48.55
|
3880
|
28200
|
0.0222
|
3000
|
2.3570
|
72X0.1816
|
19×0.1816
|
1.998
|
1520
|
4.61
|
50.75
|
4240
|
26950
|
0.0197
|
3000
|
2.3570
|
63X0.1816
|
28×0.1816
|
1.998
|
1520
|
4.61
|
50.75
|
4240
|
28640
|
0.0200
|
3000
|
2.3570
|
54X0.1816
|
37×0.1816
|
1.998
|
1520
|
4.61
|
50.75
|
4240
|
30770
|
0.0203
|
