Mini ADSS (ASU) | Product Standards

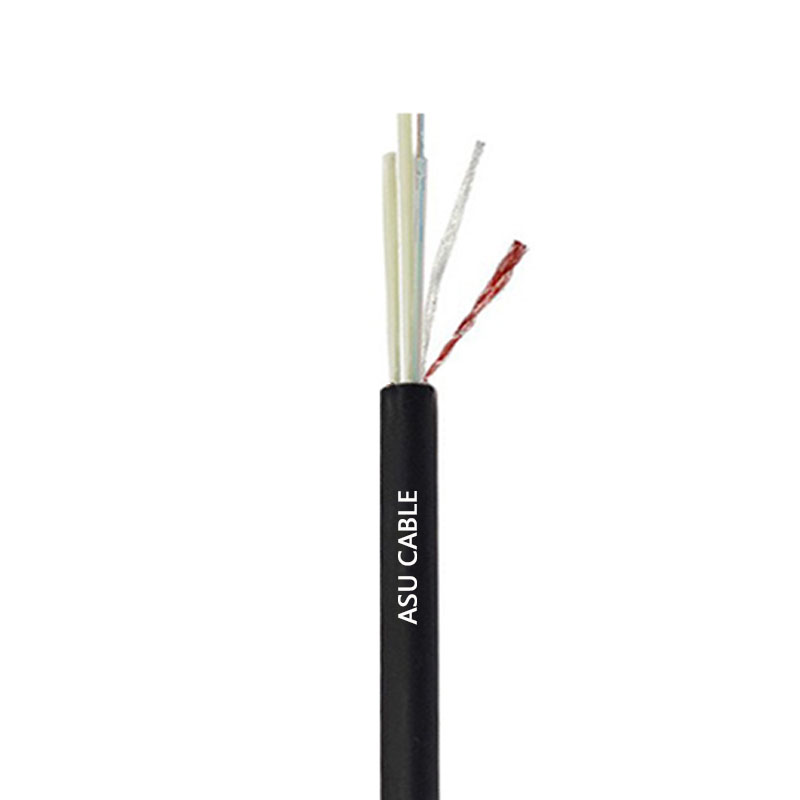

Mini ADSS aerial self-supporting optical fiber cable, span is 80m, 100m, 120m. AOPTKE companies support customization.
Mini ADSS (ASU) | Product Features
1. The unique second coating and stranding technology provide enough space and bending resistance for the optical fiber, thus ensuring the optical fiber in the cable has good optical performance.
2. Precise process control ensures good mechanical and temperature performance.
3. High-quality raw materials guarantee a long service life of the cable.

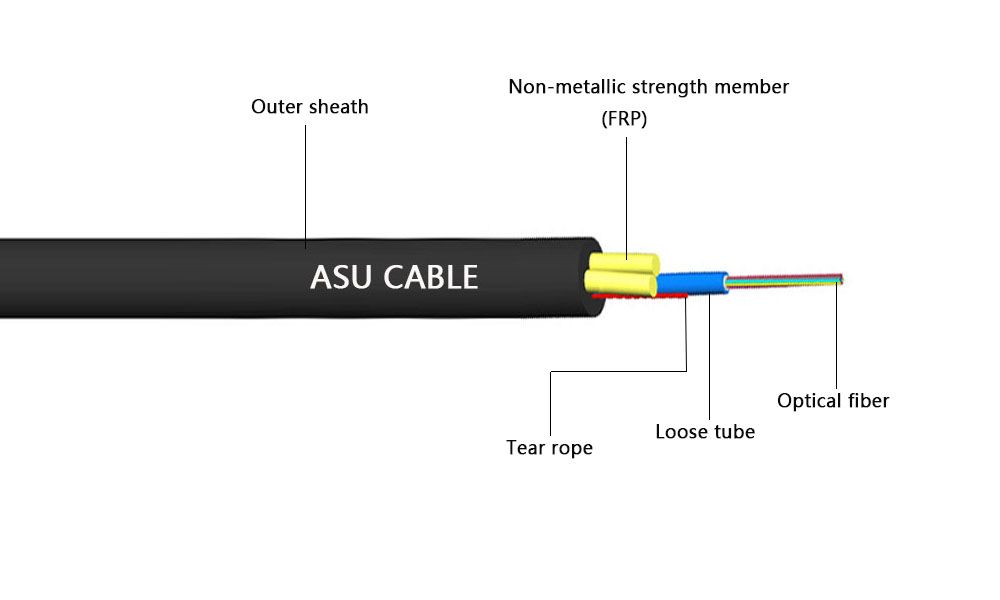

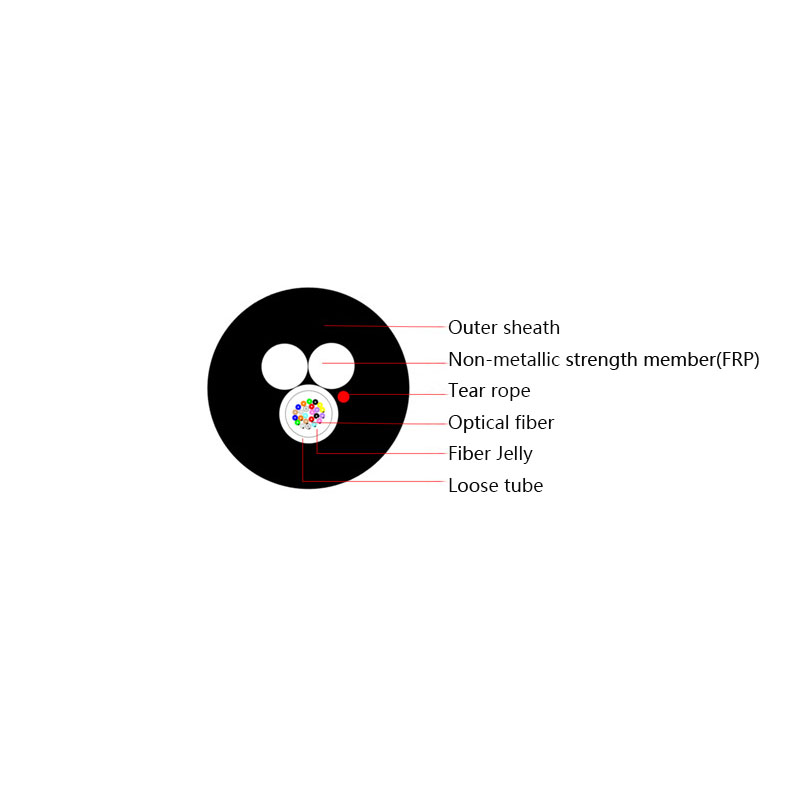

Mini ADSS (ASU | Structure Parameters
Optical cable model
|
Number of optical fibers
|
Optical cable diameter
(mm)
|
Optical cable weight
(Kg/km)
|
Allowable tensile force
(N)
|
Allowable crushing force
(N/100mm)
|
Bending radius
(mm)
|
Long term
|
Short term
|
Long term
|
Short term
|
Static
|
Dynamic
|
AUS-2-12Xn
|
4
|
7.0
|
55
|
150
|
300
|
300
|
1000
|
15D
|
30D
|
AUS-16-24Xn
|
12
|
7.0
|
55
|
150
|
300
|
300
|
1000
|
15D
|
30D
|
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only).
Mini ADSS (ASU) | Optical properties
Cable Core
|
Unit
|
2F
|
4F
|
6F
|
8F
|
10F
|
12F
|
No. Of Tubes
|
|
1
|
1
|
1
|
1
|
1
|
1
|
No. Of fibers
|
core
|
2
|
4
|
6
|
9
|
10
|
12
|
Fiber Counts in tube
|
core
|
2
|
4
|
6
|
9
|
10
|
12
|
Cable Diameter
|
Mm
|
6.6+0.5
|
40+10
|
Cable Weight
|
Kg/km
|
40+10
|
45+10
|
Allowable tensile Strength
|
N
|
Span=80，1.5*P
|
Allowable crush resistance
|
N
|
1000N
|
Operation temperature
|
°c
|
-20℃℃ to +65℃
|
Mini ADSS (ASU) | Packaging and delivery
The final packaging of the product is also a reflection of our company's rigorous attitude.
We strictly abide by your specific requirements and provide you with free printing services on your brand logo and specific information. We know that the image of the product is your first impression of us.

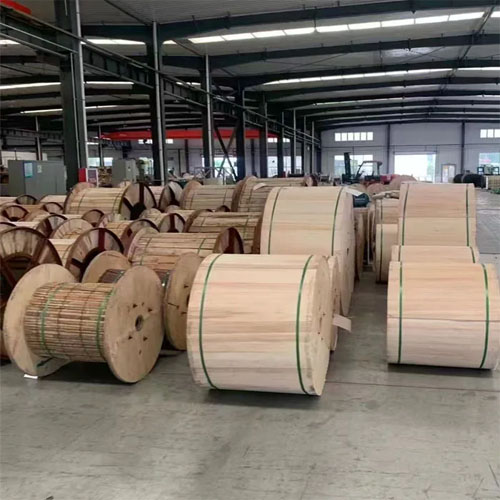

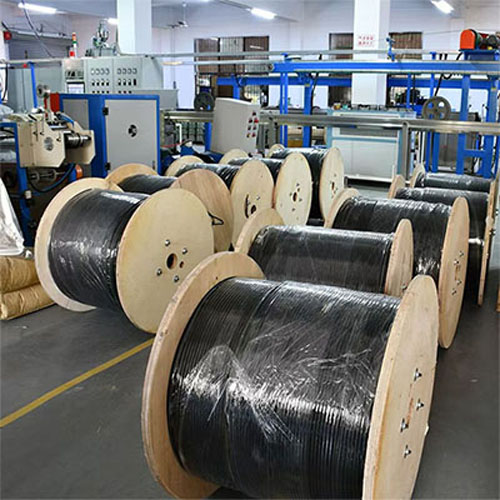

We provide sturdy and durable iron reels and environmentally friendly wooden reels to ensure that the goods can be delivered to you intact at every step of transportation.
In addition, for large-scale deployment and international transportation needs, we provide flexible container packaging options - whether it is a standard 20-foot container, suitable for compact space and flexible deployment; or a spacious 40-foot container to meet the needs of large projects.

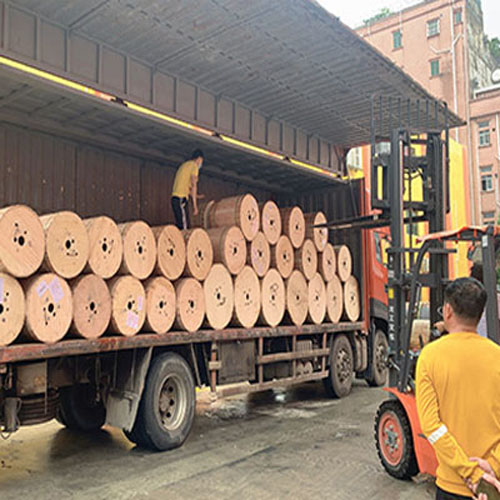

With 10 years of export experience, our mature logistics team can not only help customers correctly calculate the number of containers to be loaded, but also effectively help customers save transportation costs and ensure that the optical cable arrives on time and safely. The logistics service is well received by customers.
|
