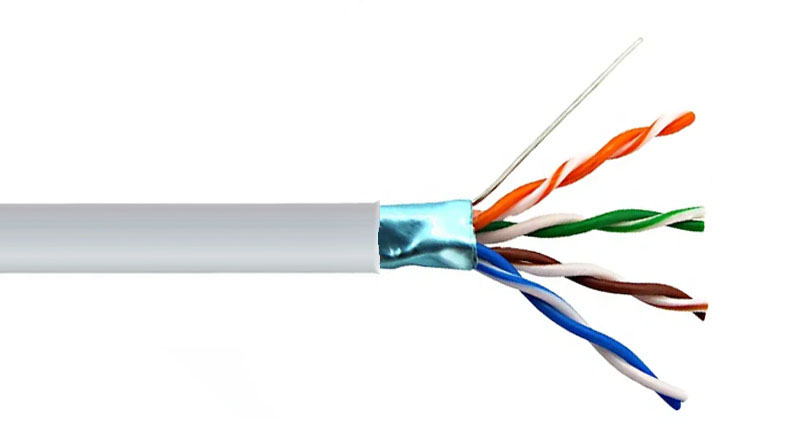

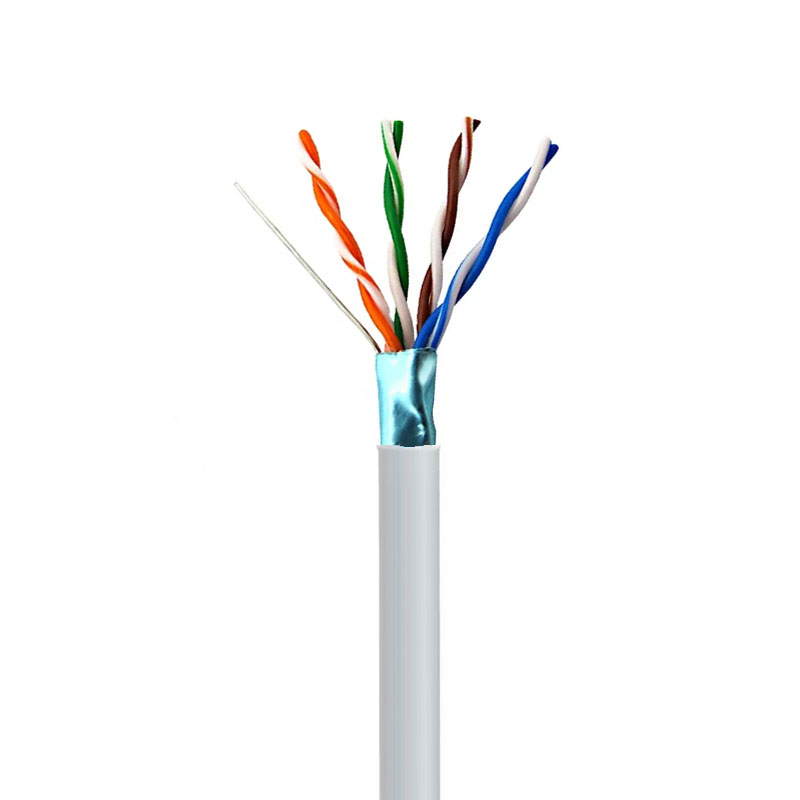

Cat5e FTP | Product Standards
AOPTKE's network cables Comply with RoHS 2.0, European Directive 2011 / 65 /EU RoHS Compliance.If you have special requirements, please contact our sales and technical team. We also support OEM.
Cat5e FTP | Product Features
1. Excellent anti-interference: The unique aluminum foil shielding layer can effectively resist external electromagnetic interference, ensure stable transmission of network signals, and not be afraid of complex electromagnetic environments.
2. Widely applicable: Suitable for office buildings, small business offices and other places with certain electromagnetic interference, to meet the needs of daily office, network communication, etc.
3. High cost performance: Compared with double-layer shielded network cables, the price is more affordable, but the performance is not inferior, providing you with an economical and affordable network wiring solution.
-

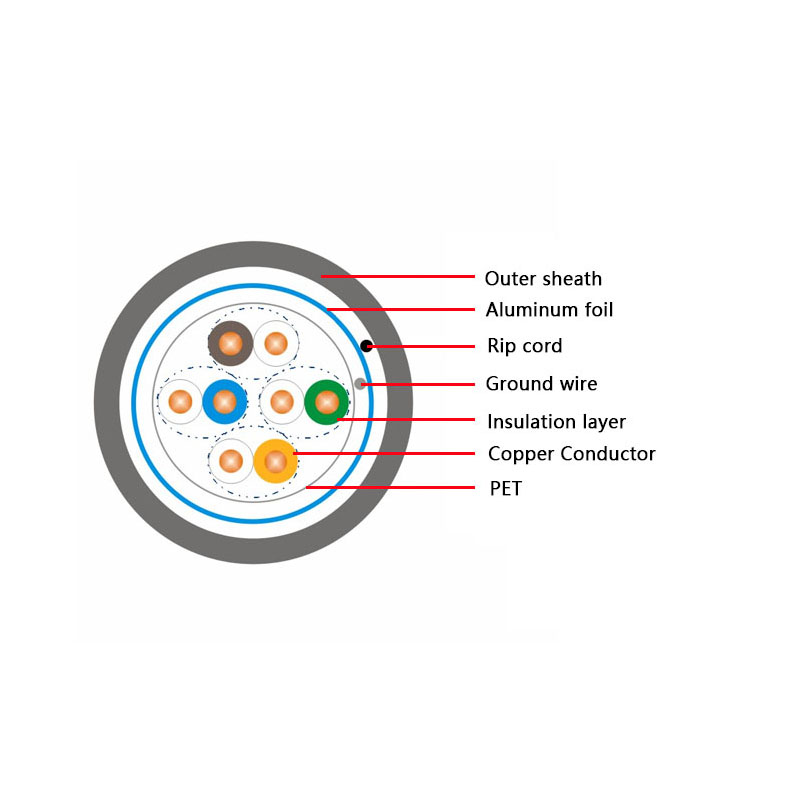

Cat5e FTP | Structure Parameters
Product Name
|
Category 5e single shielded network cable
|
Product Model
|
APTCAT5E-FTP
|
Conductor material
|
99.99% oxygen-free copper
|
Conductor size
|
0.5mm±0.01mm
|
Insulation material
|
High-density environmentally friendly polyethylene HDPE
|
Insulation outer diameter
|
0.91±0.005mm
|
Insulation thickness
|
20.18mm
|
Insulation color spectrum
|
Blue/white blue orange/white orange green/white green brown/white brown
|
Ground
|
0.4mm copper clad aluminum/tinned copper/pure copper
|
Shielding
|
Mylar + aluminum foil total shield
|
Sheath material
|
LSZH
|
Minimum sheath thickness
|
0.5mm
|
Network cable outer diameter
|
5.8mm+0.2mm
|
Insulation requirements
|
The mechanical and physical properties meet and comply with the requirements of GB/T13849.1-93 standard
|
Rip cord
|
Continuously runs through the entire cable, with a tensile strength sufficient to open the cable
|
Mechanical and physical properties of cable comprehensive sheath
|
Comply with YD/T1019-2001 standard
|
Electrical properties
|
Comply with YD/T1019-2001 standard
|
Service life
|
In the case of non-man-made or geological disasters, the service life is more than 10 years
|
Cat5e FTP | Main technical parameters
Contents
|
Contents
|
Maximum resistance imbalance
|
2%
|
Insulation resistance
|
>5000MΩ·km
|
Characteristic impedance
|
4-100MHz 100±15Ω
|
Delay difference
|
≤ 45ns/100m
|
Operating temperature
|
Installation temperature: -20℃ ~ +60℃,
Working temperature: -40℃ ~ +70℃
Cold bending: -20℃ × 4h without cracking
|
Bending radius
|
Not less than 8 times the outer diameter of the twisted pair
|
Maximum pulling force
|
400N
|
Maximum conductor resistance
|
95Ω/km（LSZH-1）
148Ω/km（CM、PVC）
|
Insulation Materials
|
HDPE
|
Minimum insulation resistance
|
100MΩ/km
|
Dielectric strength
|
500Vac/1min
|
Package
|
305m/box or customized
|
-
