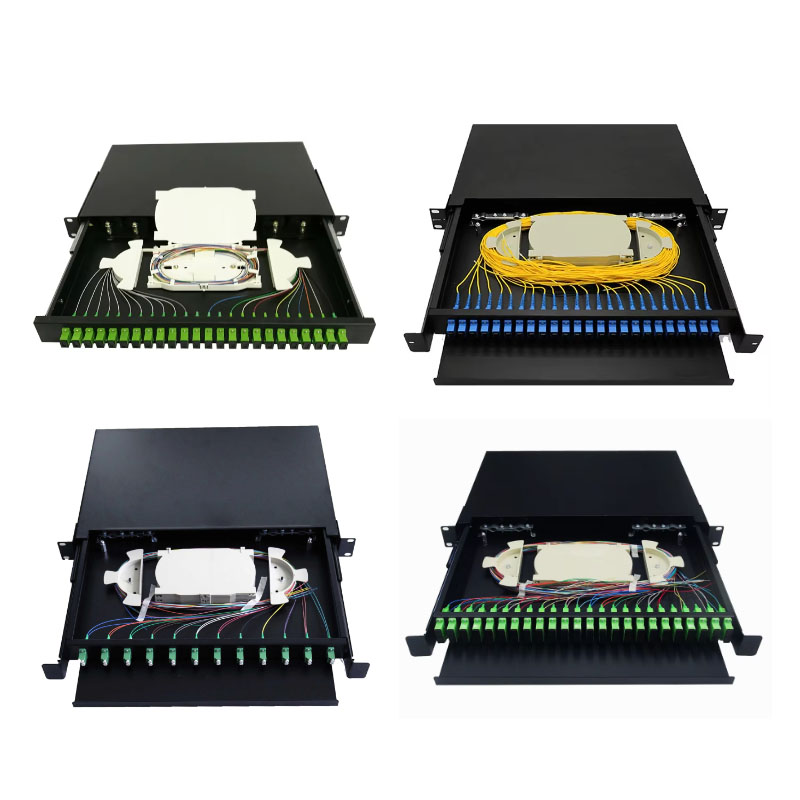

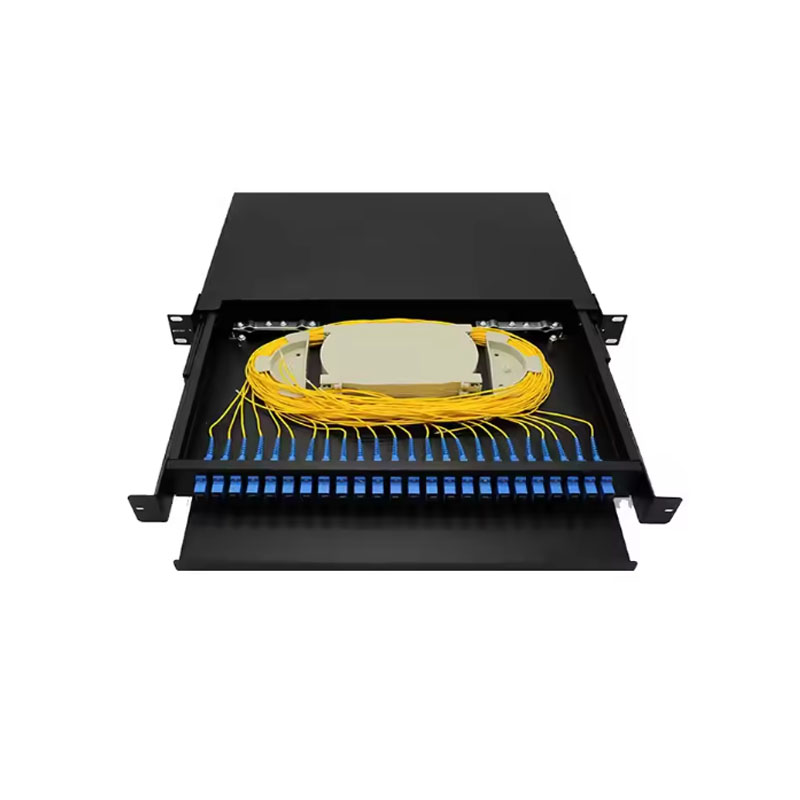

Fiber Patch Panel | Product Standards
mounted fiber optic patch panels to fix and manage the fiber optic cables inside the patch panel as well as provide protection.
Fiber Patch Panel | Product Features
1.Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
2.The box are Rack Mounted, which is convenient to install and dismantle.
3.The splice tray could be piled one upon another, flexible to turn.
4.The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray.
5.The box is of unique structure, reasonable layout, and has adequate room for operation.
6.Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.
7.The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Fiber Patch Panel | Structure Parameters
Environmental temperature:
|
-25 - 55°C
|
Relative humidity:
|
<85%(when the temperature is below 30°C)
|
Atmosphere pressure:
|
70~106Kpa
|
Insulating resistance:
|
>2×104 MΩ/500VDC
|
Voltage-resistance strength:
|
Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
|
Fiber Patch Panel | Description
Item
|
Description
|
Fiber Capacity of panel
|

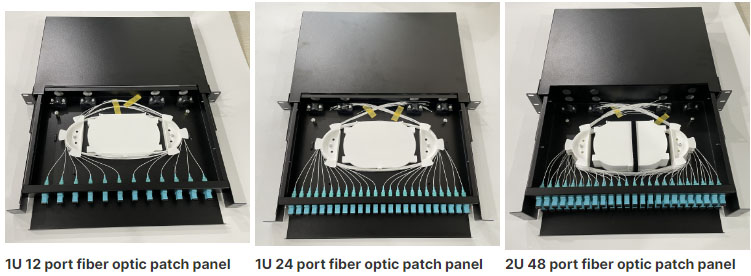

12-144 core(12 24 48 port usually)
|
Dimension
|
19'' 1U/2U/3U/4U...
|
Panel Connector
|
SC LC ST FC
|
Type
|
Fixed Type, Slidable Type
|
Material
|
Cold Rolled Steel or Aluminum
|
Storage Temperature
|
-45~+65℃
|
Thickness
|
0.8/1.0/1.2 mm
|

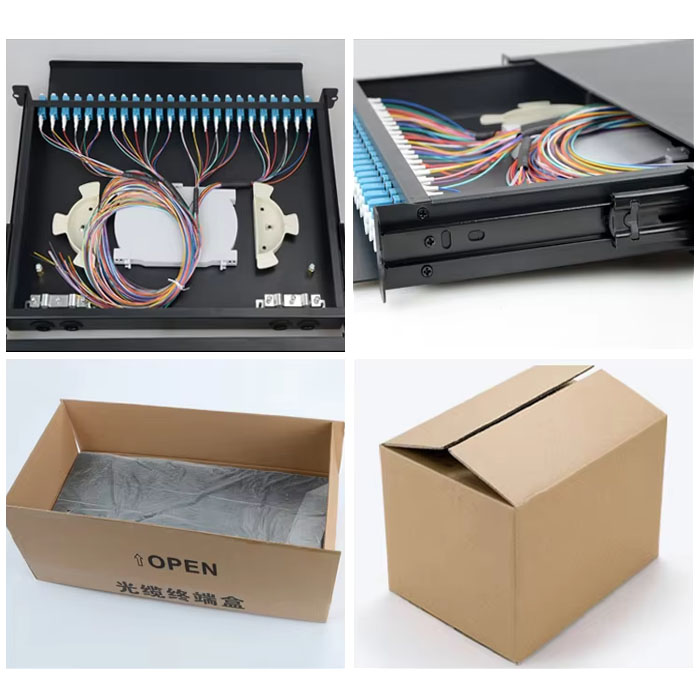

Fiber Patch Panel | Packaging and delivery
